Siemens ACVATIX SAYxP Series Basic Documentation

51 / 92
Siemens Actuators SAX.., SAY.., SAV.., SAL.. for valves CE1P4040en
Building Technologies Handling 2018-12-05
1. Press button >10s à LED blinking orange
2. Release button while blinking à LED blinking for another 3s
3. Reset is interrupted if the pushbutton is pressed during the 3s
4. After 3s, à LED is lit red (reset) while the device restarts.
The Modbus address can be set without extra tool by means of pushbutton
addressing.
To display the current Modbus address, press the button <1s.
Colors
1st digit: red 2nd digit: green 3rd digit: orange

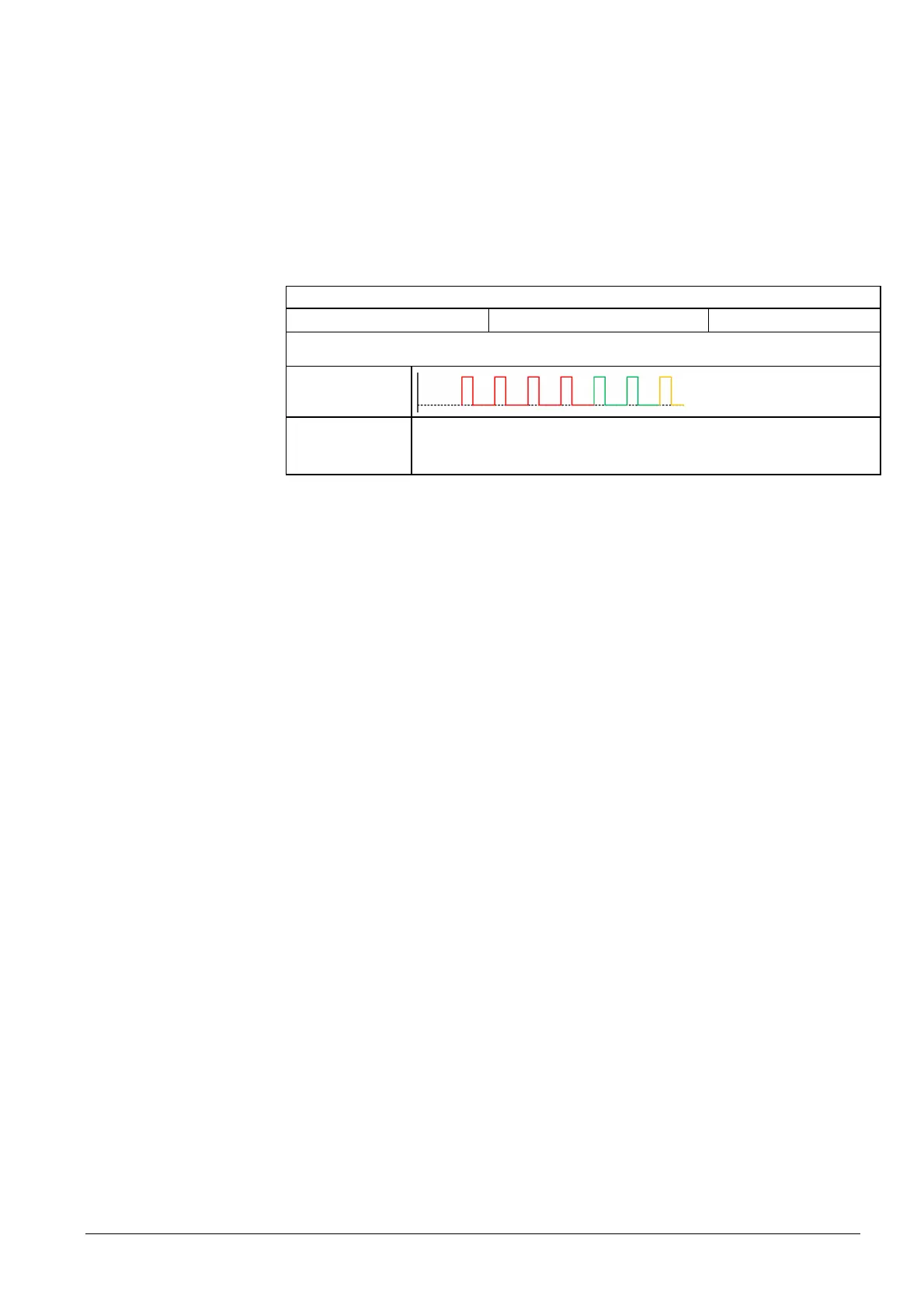

Example for address 124:
LED
Note
The address is entered and displayed beginning at the lowest digit (1st digit), see
figure above.
(Example: 124 starts with 4x red)
1. Enable addressing mode: Press button > 1s until the LED is red, then release
button (before LED goes off).
2. Enter the numbers: Push button n-times à LED blinks each time the button is
pressed as a feedback.
Colors: 1st digit: red / 2nd digit: green / 3rd digit: orange
3. Save digits: Press button until LED is lit in the color of the next digit, then
release the button,
4. Save address: Press button until LED is red (confirmation) à, then release
button.
An address can be saved any time, i.e., after entering the 1st digit or after
entering the1st digit and 2nd digit.
5. The entered address is displayed again 1x for confirmation.
Note: Address entry is interrupted when the button is released before the LED is
red, address entry is interrupted.
Set address "124":
1. Enable addressing mode
2. Enter the 1st digit: Press button 4x à LED blinks red each time the button is
pressed
3. Save 1st digit: Press button until LED is green – release button
4. Enter the 2nd digit: Press button 2x à LED blinks green each time the button is
pressed
5. Save 2nd digit: Press button until LED is orange – release button
6. Enter the 3rd digit: Press button 1x à LED blinks orange each time the button
is pressed
7. Save address: Press button until LED is red – release button
à The address is saved and displayed 1x for confirmation
Reset actuator with
pushbutton
Enter address using
pushbutton
Enter new address
(starting from the lowest
address position)
Enter new address
(starting from lowest
address position)
Example
