Standard I/O Modules
SICAM A8000 Series, SICAM I/O Modules Unrestricted 57
DC8-012-2.06, Edition 09.2019
2.8.4 Pin Assignment and Display

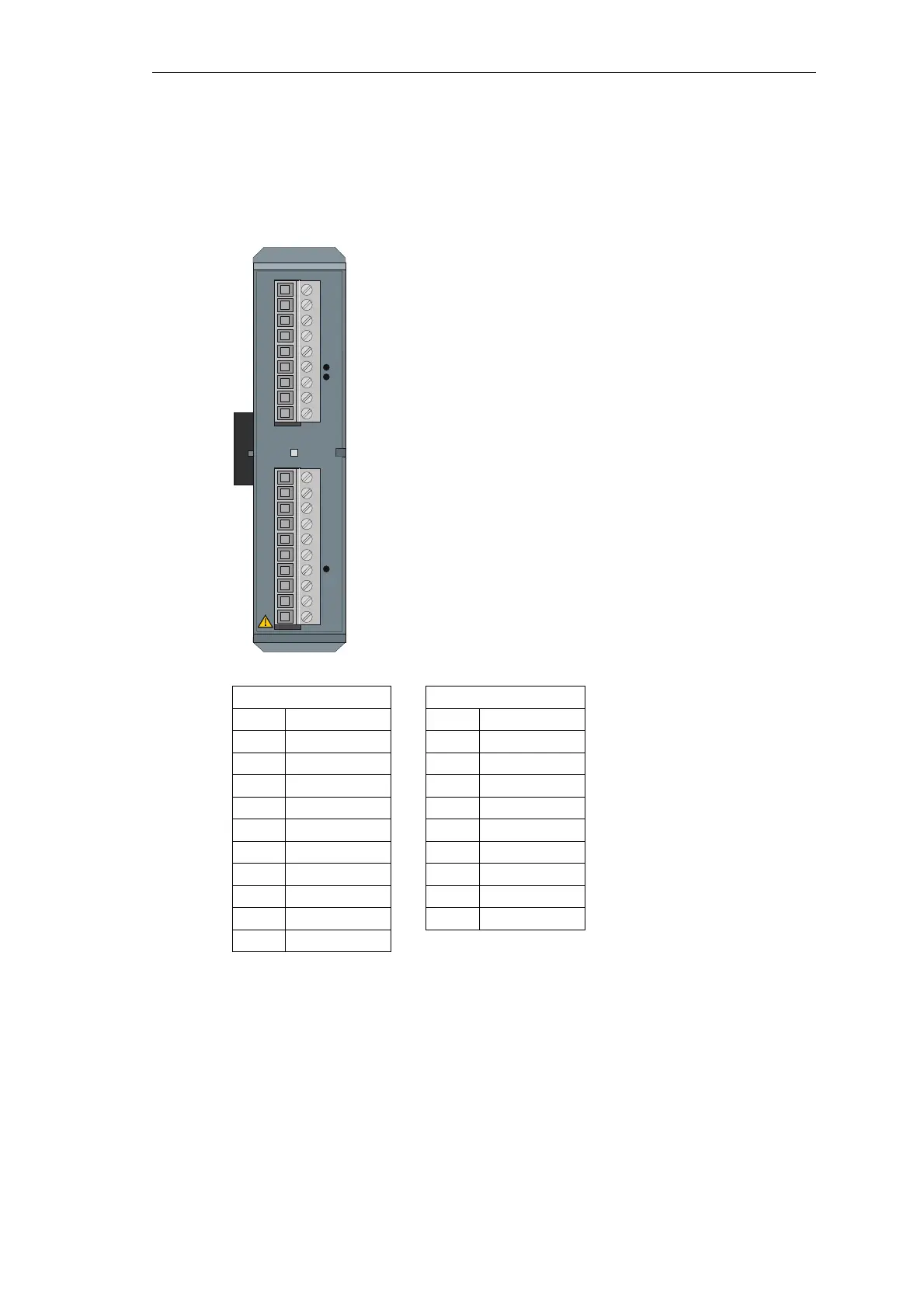

The process signals must be connected to 2-pin screw terminals. The pin assignment of the
peripheral connectors is described in the following table.
X1 X2
Pin Signal Pin Signal
10 DNC 9 CC shield
9 DNC 8 DNC
8 I1+ 7 U1
7 I1- 6 N
6 I2+/IN+ 5 U2
5 I2-/IN- 4 N
4 I3+ 3 U3
3 I3- 2 N
2 DNC 1 DNC
1 FE shield
RY readiness
I1+/-…I3+/- measuring current inputs
IN+/- (sensitive) ground current
U1/N…U3/N measuring voltage inputs
FE functional earth
CC capacitive coupled to protective earth
DNC do not connect
RY
SICAM A8000
AI-8510
X2
X1
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
