Siemens ARCADIS Varic Service Manual

General 1 - 7
Siemens AG n.a. SP00-000.841.01 Page 7 of 10 ARCADIS
Medical Solutions Rev. 01 08.05 CS PS 24 System Manual
If the direct measurement of the system leakage current is used (measuring arrangement
according to Fig. 3), then the system must be set up insulated during the measurement
and must not be touched during the measurement.

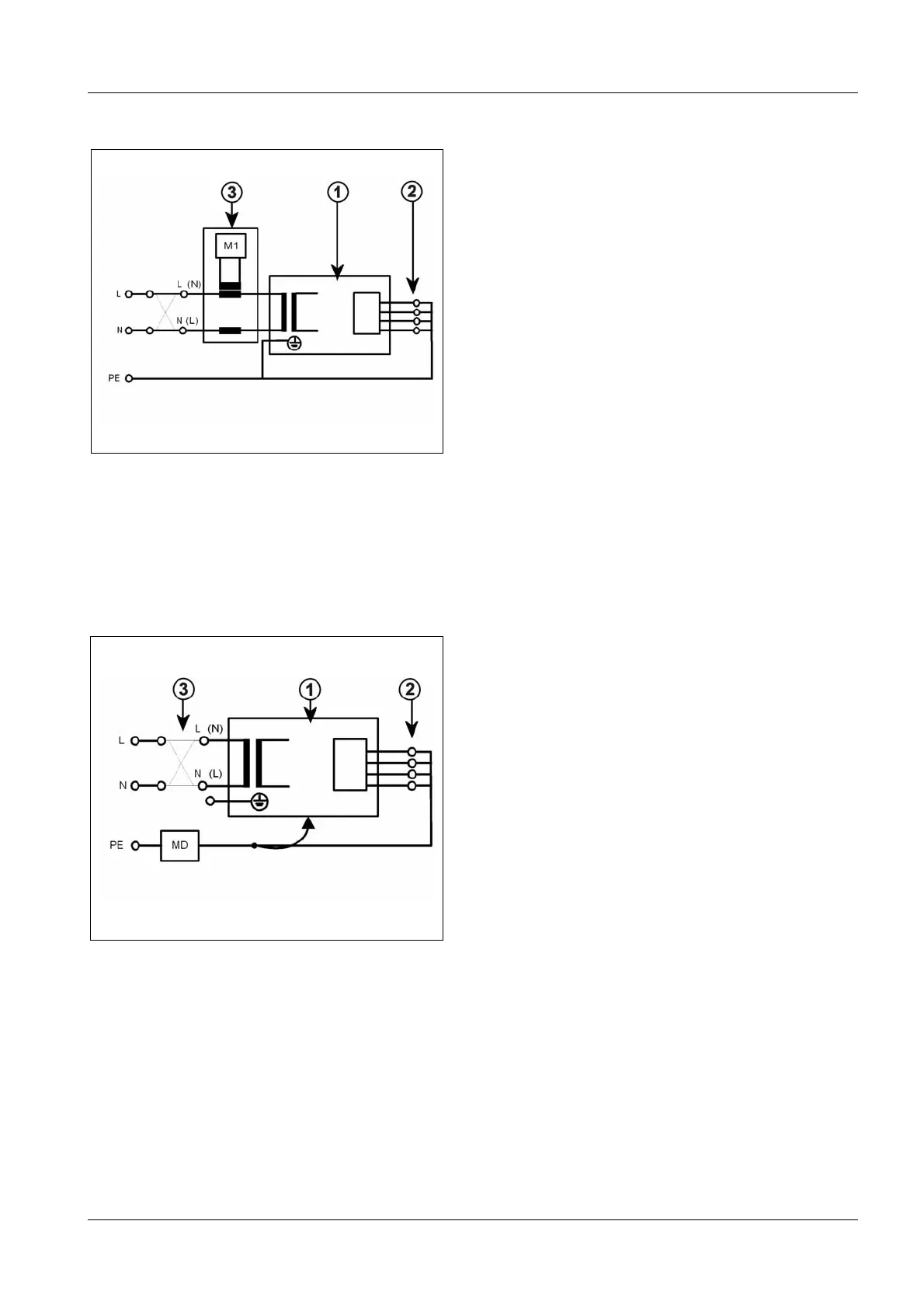

Fig. 2 Measuring circuit for measuring the system leakage current according to the differential current method
according to DIN VDE 0751-1:2001-10, Fig. C6 for protection class
I.
1 = System
2 = Applied part (not present)
3 = Measuring arrangement (integrated in the measuring instrument)
Fig. 3 Measuring circuit for the direct measurement of the system leakage current
according to DIN VDE 0751-1:2001-10, Fig. C5 for protection class
I.
1 = System
2 = Applied part (not present)
3 = Measuring arrangement (integrated in measuring instrument)

Siemens ARCADIS Varic Specifications

General

Type	Mobile C-arm
Image Intensifier	9-inch or 12-inch
DICOM Compatibility	Yes
Frame Rate	Up to 30 fps
Focal Spot Size	0.3/0.6 mm
Monitor	Dual 18-inch TFT LCD monitors
