7SR21 & 7SR22 Argus Installation Guide
Section 5: Connection/Wiring/Diagrams
5.1 Wiring Diagram: 7SR21 OC/EF Relay

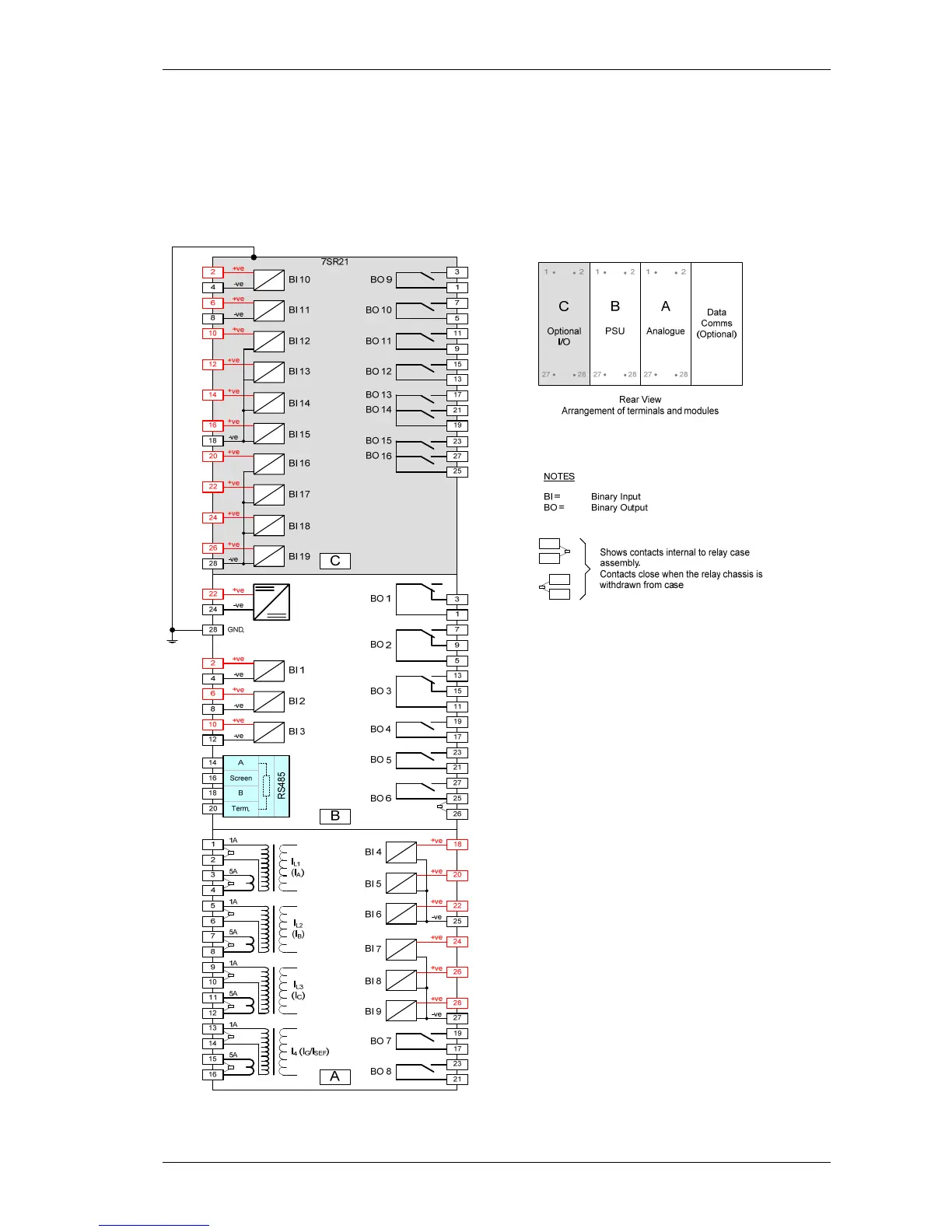

Figure 5.1-1 Connection Diagram for 7SR21 Relay
