7SR21 & 7SR22 Argus Installation Guide
Section 3: Dimensions and Panel Fixings
3.1 Relay Dimensions and Weight
Relays are supplied in the modular size E6 or E8
The following drawing is available which gives panel cut-out and mounting details.

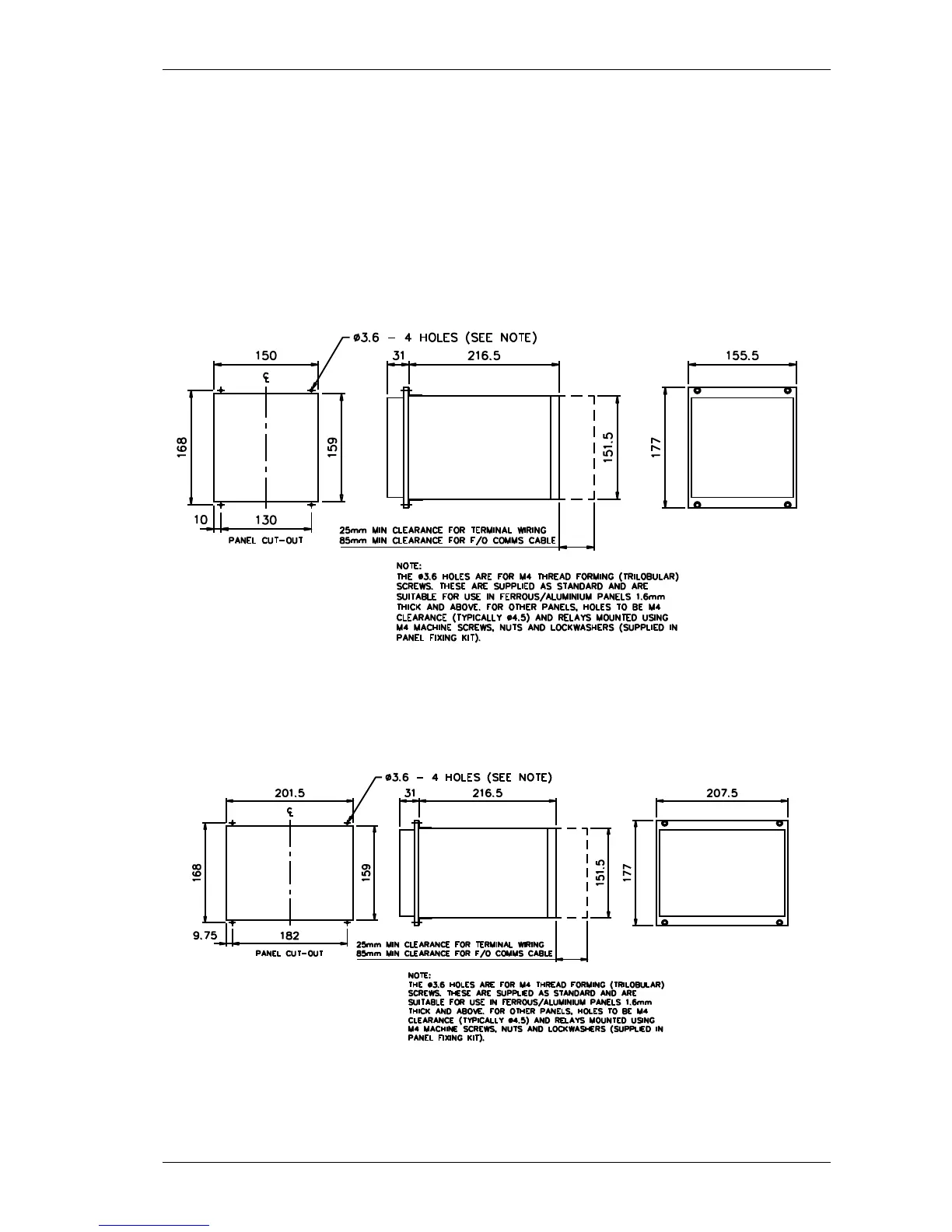

Figure 3.1-1 Overall Dimensions (mm) and panel Drilling for Size E6 Epsilon case (Typically 4.2 kg)
Figure 3.1-2 Overall Dimensions (mm) and Panel Drilling for Size E8 Epsilon Case (Typically 5.3 kg)
©2010 Siemens Protection Devices Limited Chapter 5 Page 6 of 22
