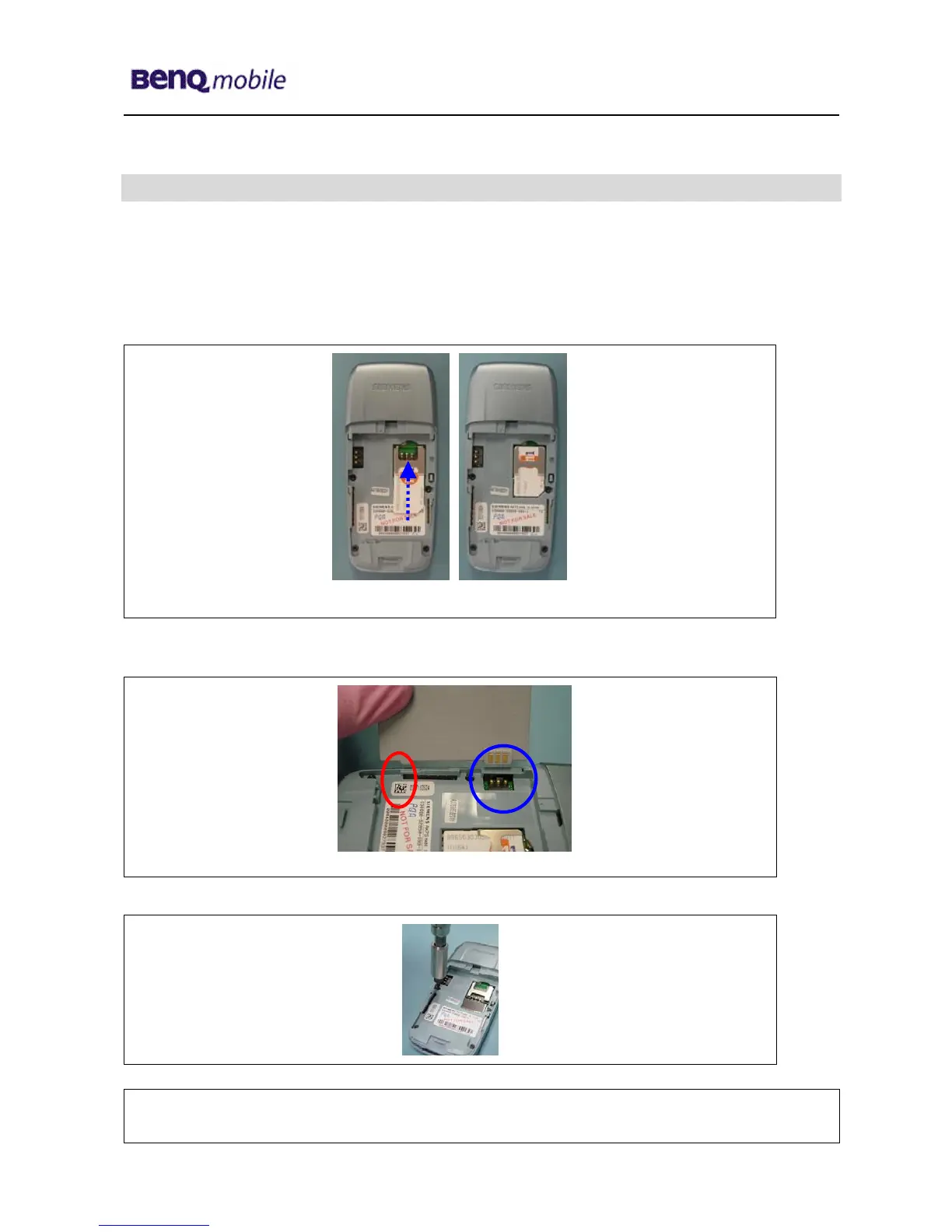

6 Assembly of AX72
For the reassembly of the AX72, reverse the disassembly procedures from Step 12 to
Step1. However there are some areas to be taken note of during reassembling of the
phone.
During the installation of the SIM card, make sure that the SIM card is inserted properly and
that the golden contact area is facing downwards. Insert the SIM card downwards to lock
the SIM card into position.
Installation of the SIM card
During the installation of the battery, make sure that the hinges are properly in place (See
picture below). Otherwise the battery will not be able to fit into the phone properly.
When placing the screws, set Torque to 17cNm.
