Siemens AX72 Service Manual

Release 1.1
Technical Documentation
01/2006
TD_Repair_L1-L3_AX72_R1.1.pdf Page 40 of 41

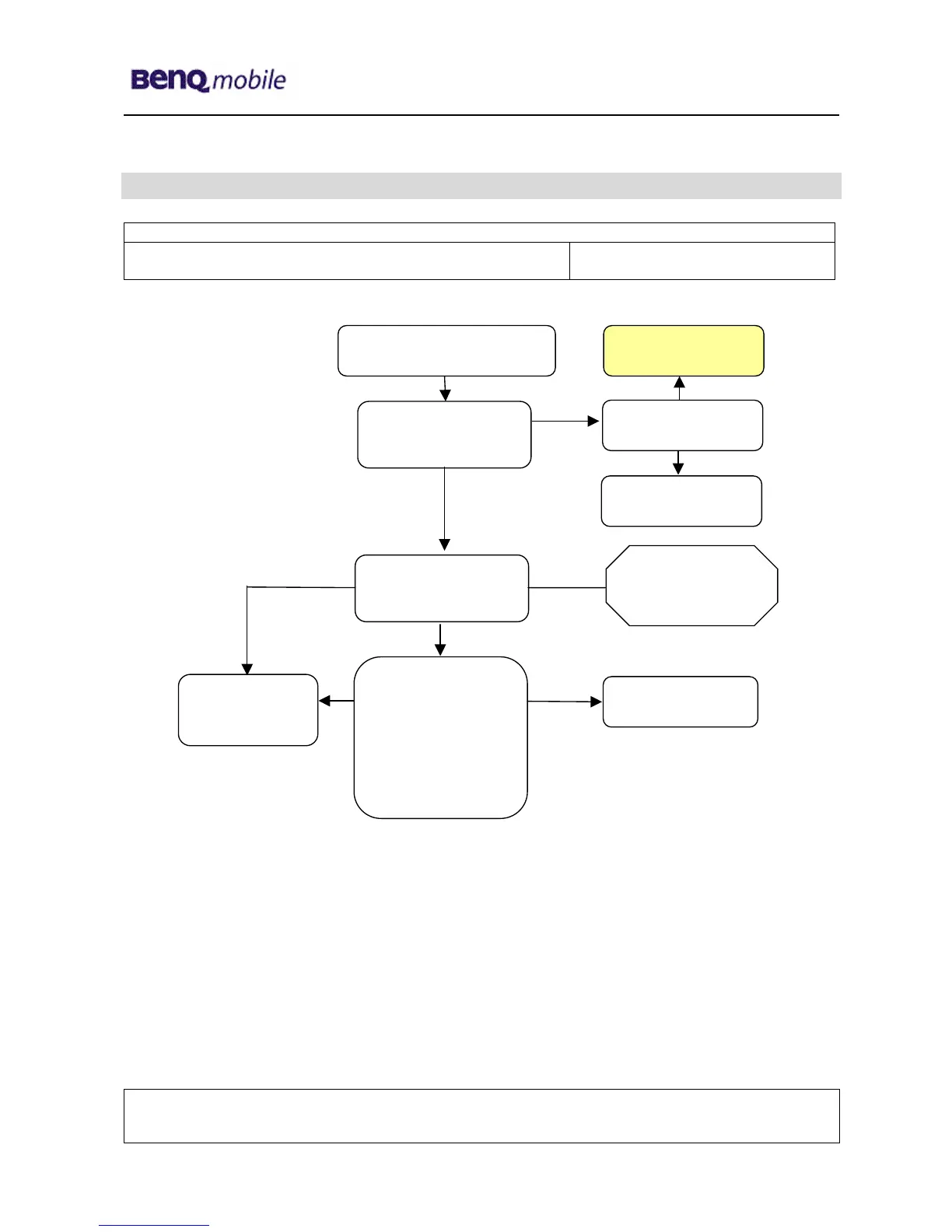

18 Battery Connector Problems
Fault Symptoms
Customer: GRT:
Mobile does not switch on Current measured failed
Battery connector
Problems
Watch for oxidation and
damaged pads of the
Connector
caused by customer
SCRAP - has to be send
separately to WSC
okay
Check the status of the
Connector visually
Use the resistor test
function of a
multimeter to check
connection between
spring contacts and
soldering contacts.
The value must be
~0Ω
Exchange
Battery
Connector
Continue with
higher repair level
okay
not
oka
y
not
oka
y
- check for twisted or
bent contacts
- check for dry joints
Back to customer
without repair
Connector BATTERY
Use hot air blower to remove defective component. Avoid excessive heat! Watch surrounding components!
Resolder new component afterwards.
E-commerce order number: L36334-Z97-C213
E-commerce order name: CONNECTOR BATTERY 3-POL
Soldering temperature: ~ 360°C Tip Temp.
IRIS Diagnose Code: 13000 Battery/Mechanical Damage
Company Confidential
2006©BenQ
