V1.0 Page 44 of 46 ICM MP CCQ ST
C45, M50 AND MT50 Company Confidential © Copyright Siemens AG 05/02

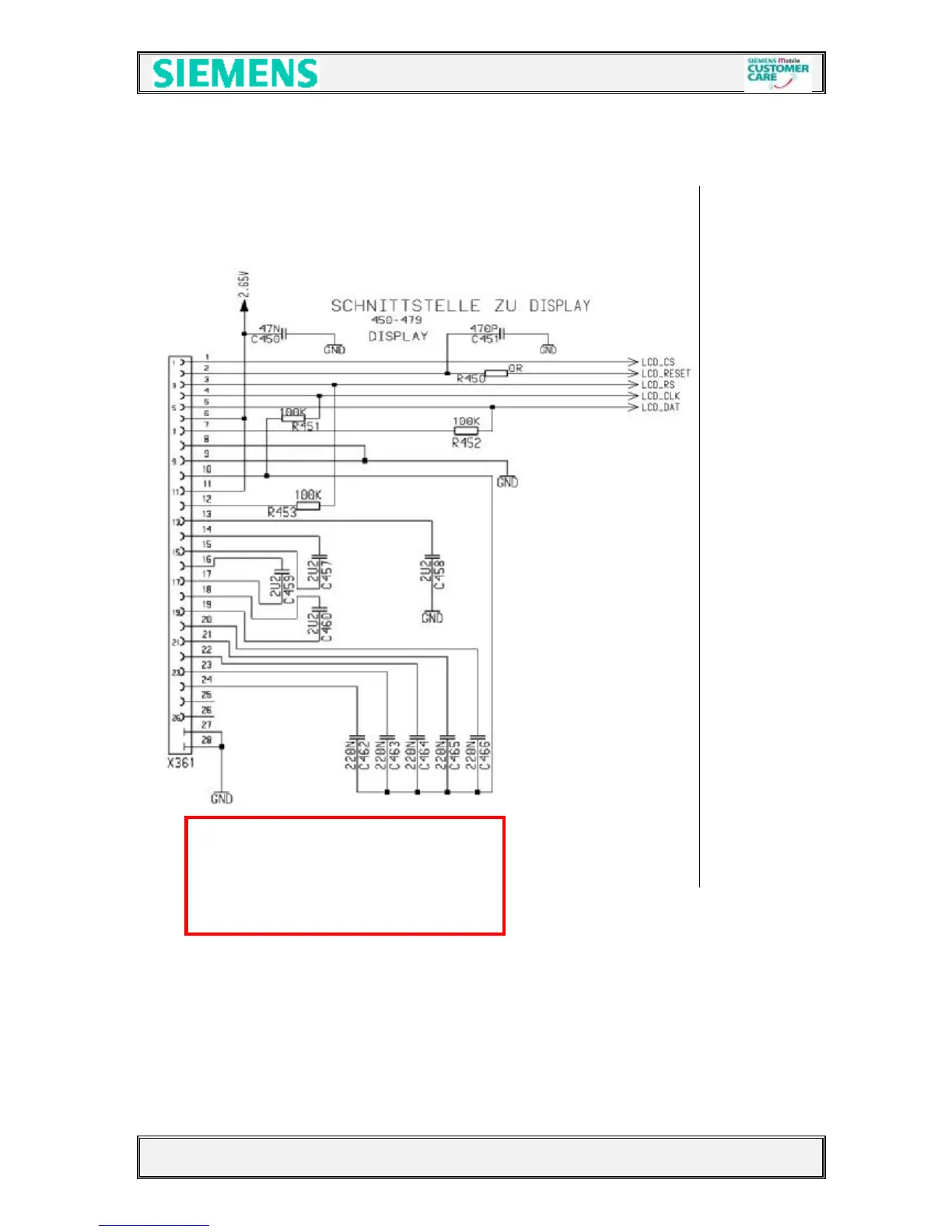

9.2 Display connector
The display is provided with 2,65V from the ASIC (D361). The communication with
the EGOLD+ by the LCD-Signals, directly connected to the EGOLD+
LCD_CS SIM L9
LCD_RESET Miscellaneous N7
LCD_RS Serial-Interface R14
LCD_CLK Serial-Interface P11
LCD_DAT Serial-Interface N11
