6 Logic Part
6.1 Overview Logic/control

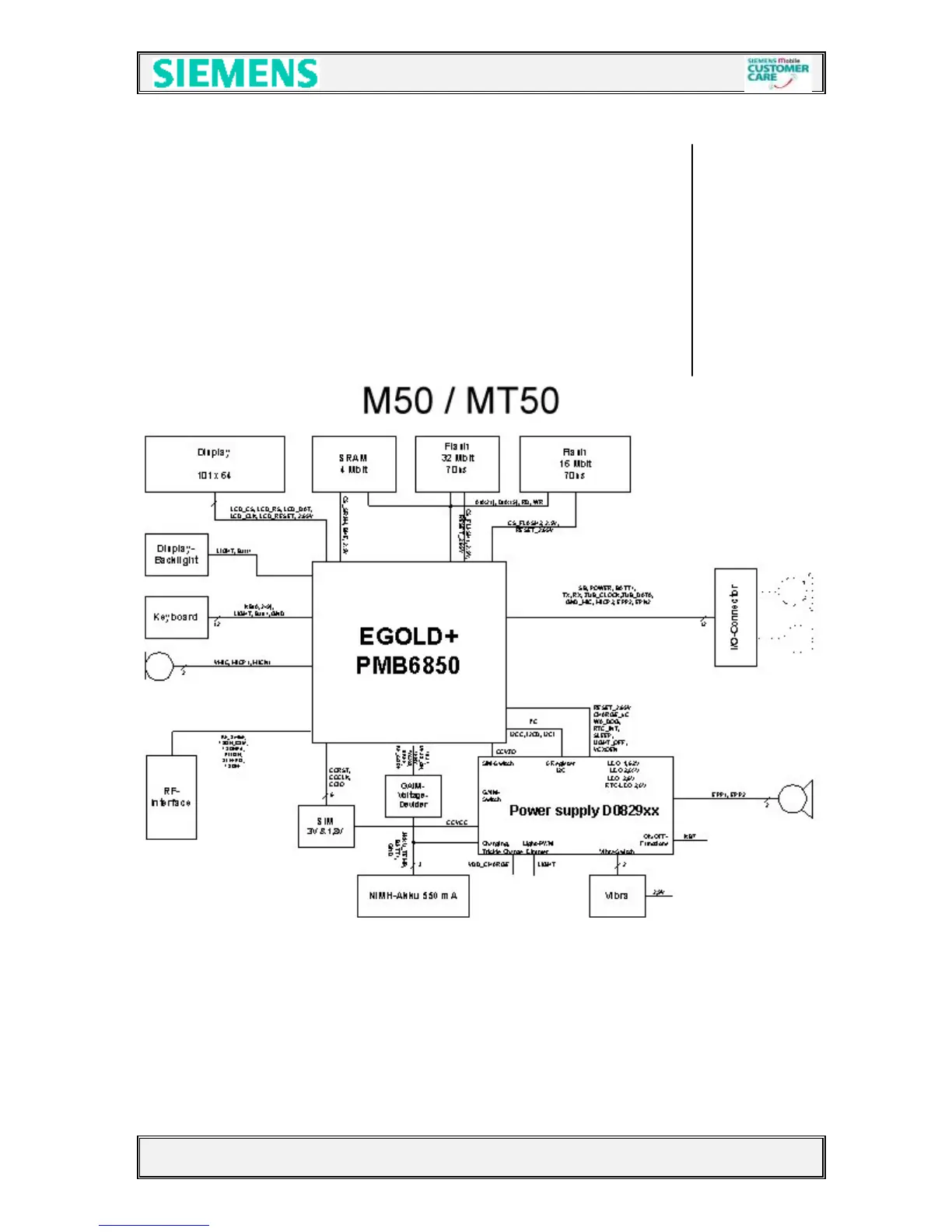

Overview to the HW structure
The hardware in the M50 / MT50 can be split up into two function groups:
At first there is the baseband chipset with its periphery comprising the EGOLD+,
Flash and power supply ASIC. This function group is basis for all equipment variants.
