Siemens C65 Service Repair Documentation

Company Confidential
Copyright 2003© Siemens AG
Page 8 of 13
Service Repair Documentation
Level 2.5 - C65
Release 1.0
5 Connector Battery
Fault Symptoms
Customer: GRT:
Mobile does not switch on No connection to GRT
Connector BATTERY
Use hot air blower to remove defective component. Avoid excessive heat! Watch surrounding components!
Resolder new component afterwards.
E-commerce order number: L36334-Z97-C336
Soldering temperature: 240 - 255°C
IRIS Diagnose Code: 13000 Battery/Mechanical Damage

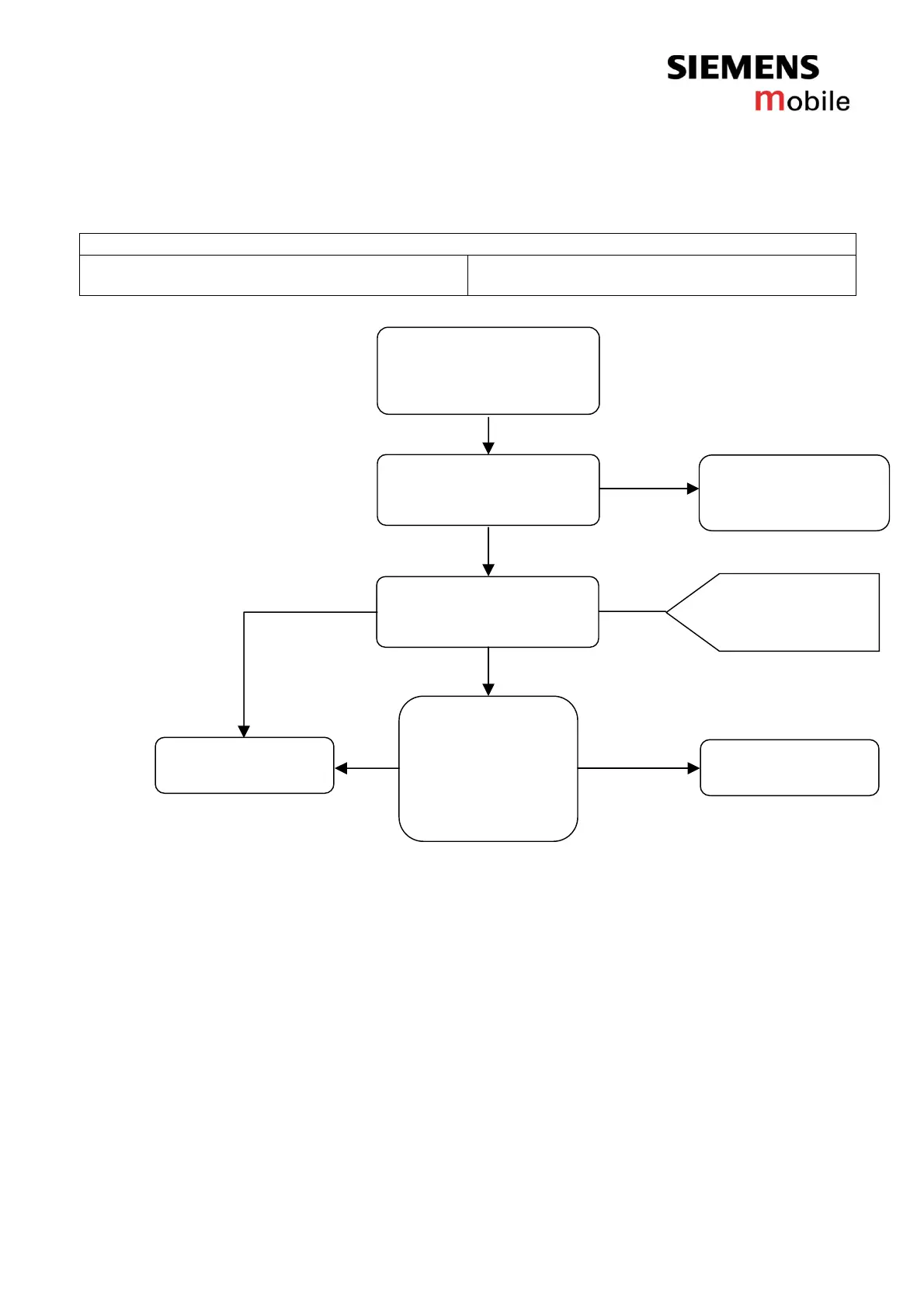

Battery connector
Problems
Check the status of the
battery connector visually
okay
not okay
Level 2 Repair
Exchange
Battery connector
- check for twisted or
bended contacts
- check for dry joints
not okay
okay
okay
not okay
Watch for oxidation and
damaged pads of the battery
connector
Use the resistor test
function of a multimeter
to check connection
between spring
contacts and soldering
contacts. The value
must be ~0Ω
SCRAP don´t
send back to
WSC
