7.3 Connectors

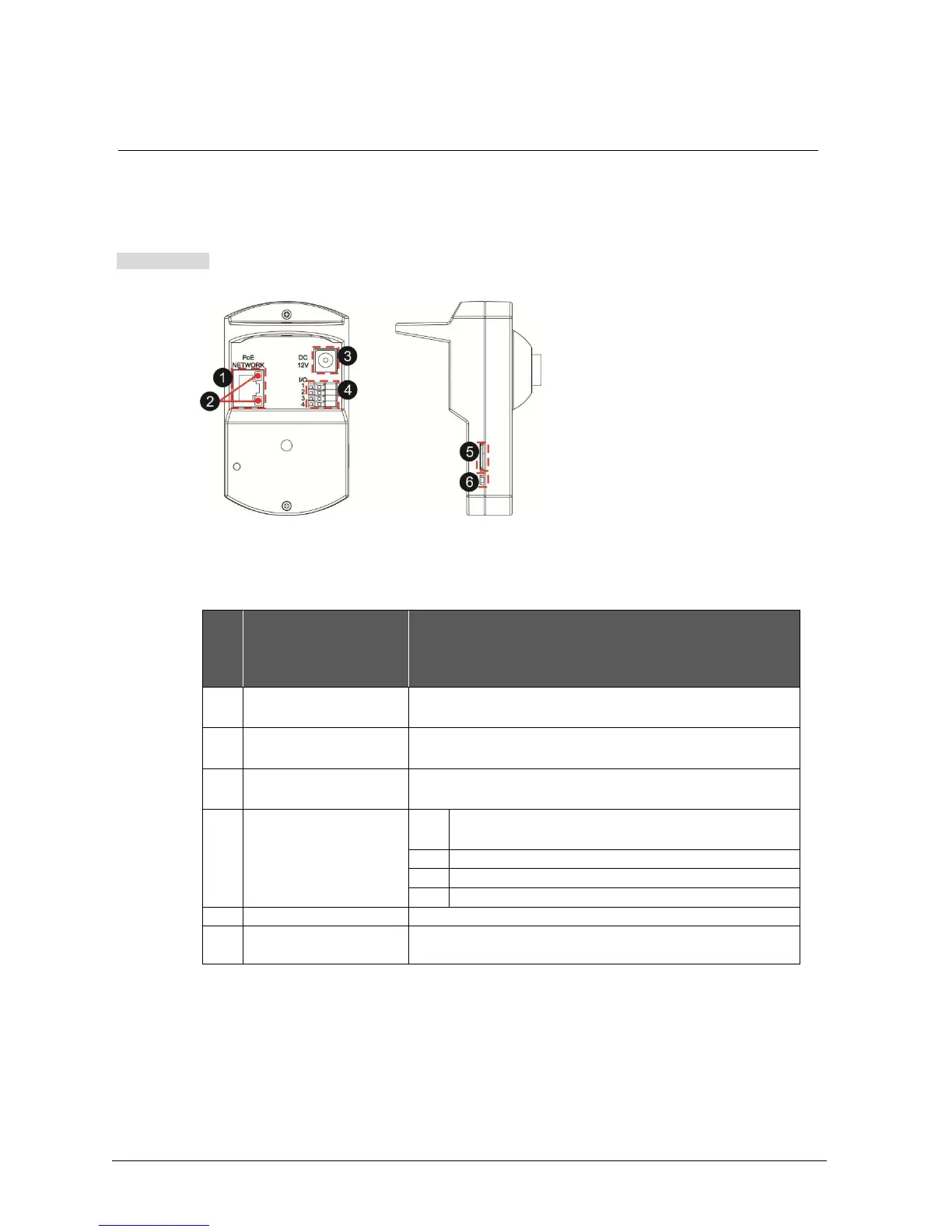

The diagrams below show the connectors of the IP Camera. Definition for each
connector is also given as follows.
CCMS2010-IR
a) N
o
.
Connector
Definition
1
PoE NETWORK
For Ethernet cable and PSE connection
2
Network LEDs
Network connection and activity indication
3
DC 12V Connector
For power connection
4
Alarm I/O
1
Alarm Output +
2
Alarm Output −
3
Alarm Input +
4
Alarm Input −
5
microSD Card Slot
For videos and snapshots storage
6
Default Button
Press the button with a proper tool for at least 20 seconds
to restore the system.
