12.4 Main Tab “Streaming”
Under the tab <Streaming>, there are submenus including: <Video Format>,
<Video Compression>, <Video ROI>, <Video OCX Protocol>, <Video Frame
Rate>, <Video Mask> and <Audio>.
In the Streaming submenus, the administrator can configure specific video resolu-
tion, video compression mode, video protocol, audio transmission mode, etc. Fur-
ther details of these settings will be specified in the following sections.

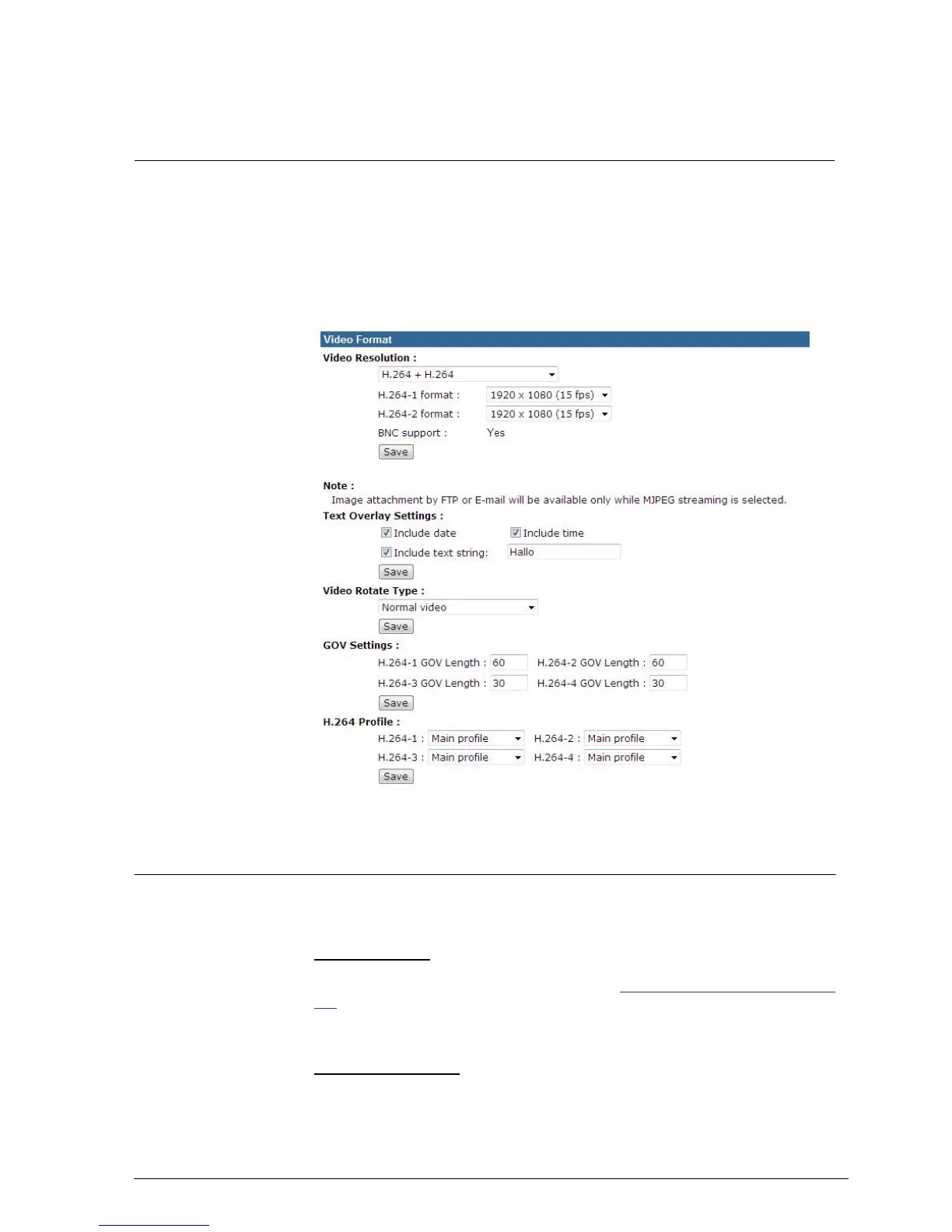

12.4.1 Format (Video Resolution and Rotate Type)
The Video Format setting can be found under this path: Streaming> Video For-
mat.
Video Resolution
Under Video Resolution section, the available video resolution formats are includ-
ing MJPEG and H.264. Please refer to chapter Appendix: Video Resolution - set-
ups for more combination details.
Click on <Save> to confirm the setting.
Text Overlay Settings
Users can select the items to display data including date / time / text on the live
video pane. The maximum length of the string is 20 alphanumeric characters.
Click on <Save> to confirm the Text Overlay setting.
