Siemens CERBERUS PYROTRONICS PXL - Page 26

PXL Conventional Fire Alarm Control Panel
Installation
20

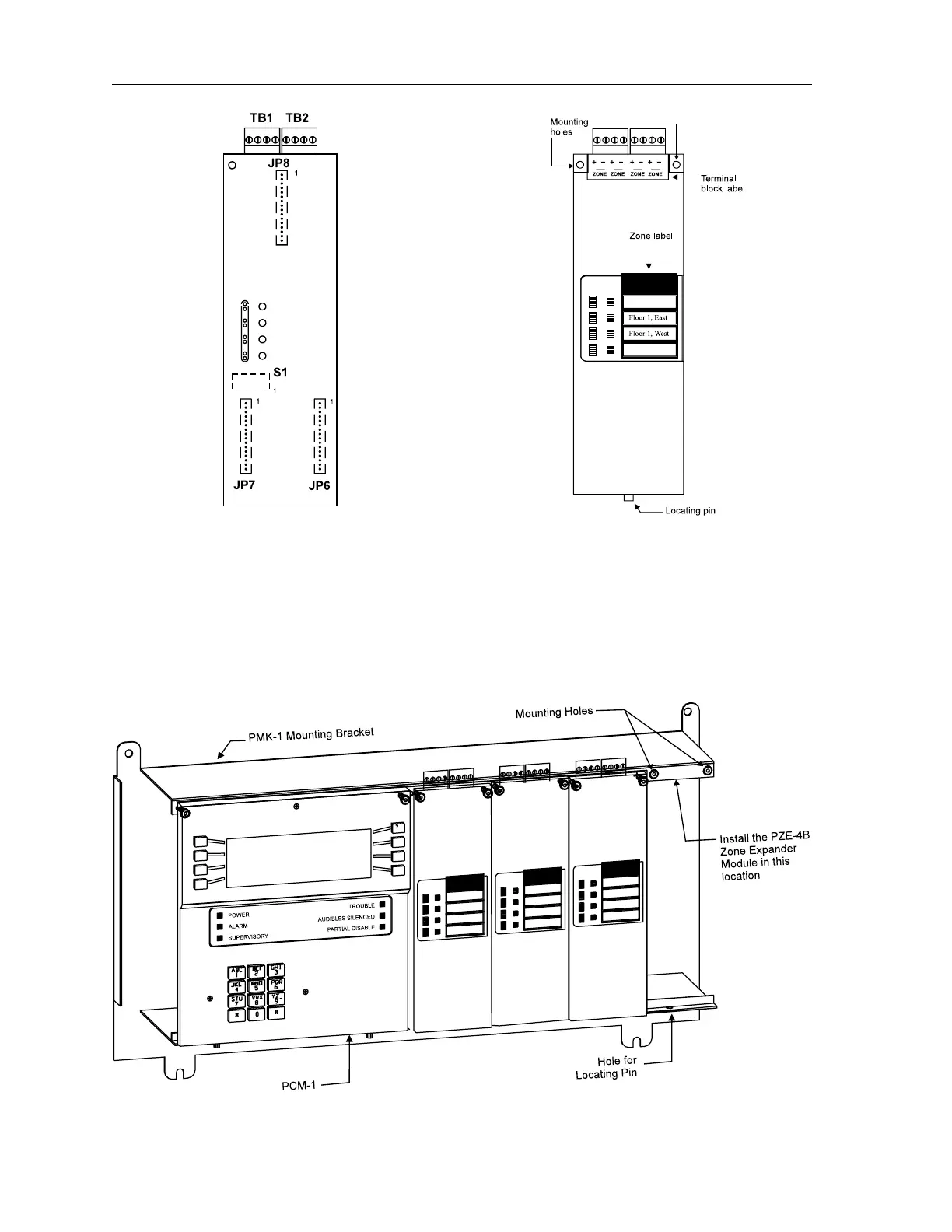

Figure 13
PZE-4B Module Board
Figure 14
Mounting the PZE-4B
Figure 15
Labeling the Zones and Terminal Blocks
on the PZE-4B
