17/30
Siemens Climatix touch
panel A6V10445442_en--_a
Building Technologies Mounting and connecting 2015-06-30

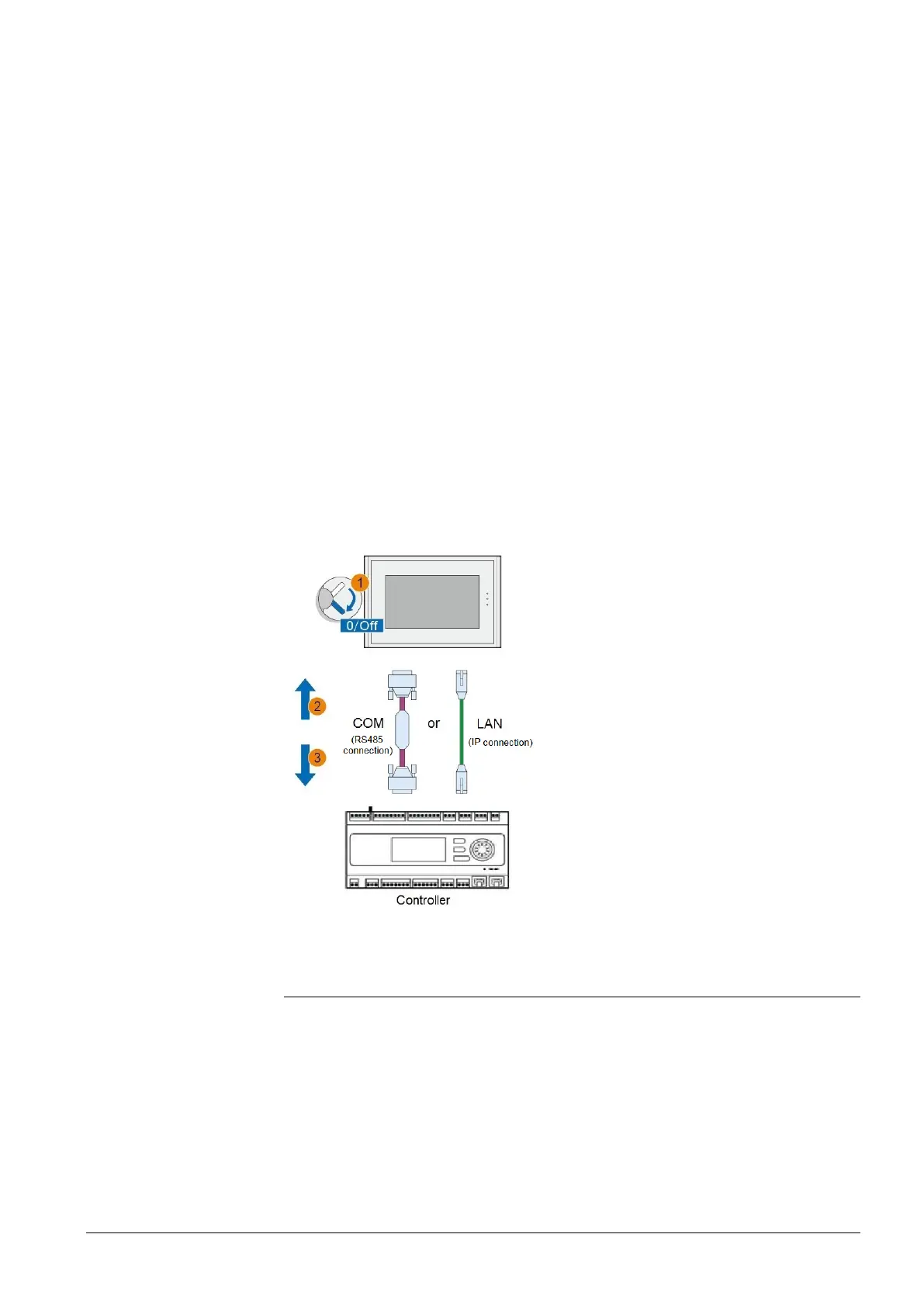

4.3.3 Connect Climatix controller
If it contains an executable project, connect the Climatix touch panel to the
controller.
Use the “COM1” or “COM2” port to connect to a Climatix controller.
1. Shut down the Climatix touch panel.
2. Connect an RS485/RS232 connector on a communication cable to the Climatix
touch panel.
3. Connect the other RS485/RS232 connector on the communication cable to the
controller.
For safety instructions, see Notes on communication.
Use the Ethernet port to connect to a Climatix controller.
1. Shut down the Climatix touch panel.
2. Connect one RJ45 connector on a LAN cable to the Climatix touch panel.
3. Connect the other RJ45 connector on the LAN cable to the controller.
4. Configure the network of the Climatix touch panel if necessary. See Configure
the Network.
4.4 Switch on the Climatix touch panel
Switch on the power supply.
If the screen does not light up in two seconds after powering up, immediately
switch off the power supply. You have probably crossed the cables on the
power supply terminal. Check the connected cables and change them as
needed.
Climatix touch panel has a DEMO application in order to show main
functionalities and features. Please download your own application developed
with HMI-TOOL configuration software.
IP Connection
