Siemens Climatix touch
panel A6V10445442_en--_a
Building Technologies Overview 2015-06-30
2.3 Product design
The Climatix touch panel has three types of products: POL8T1.4X/STD,
POL8T1.7X/STD and POL8T1.8X/STD. The mechanical design differs for
individual types.
①
②
③
④
⑥
⑦
⑧
⑨
⑩
⑤
A
6V10445442M15

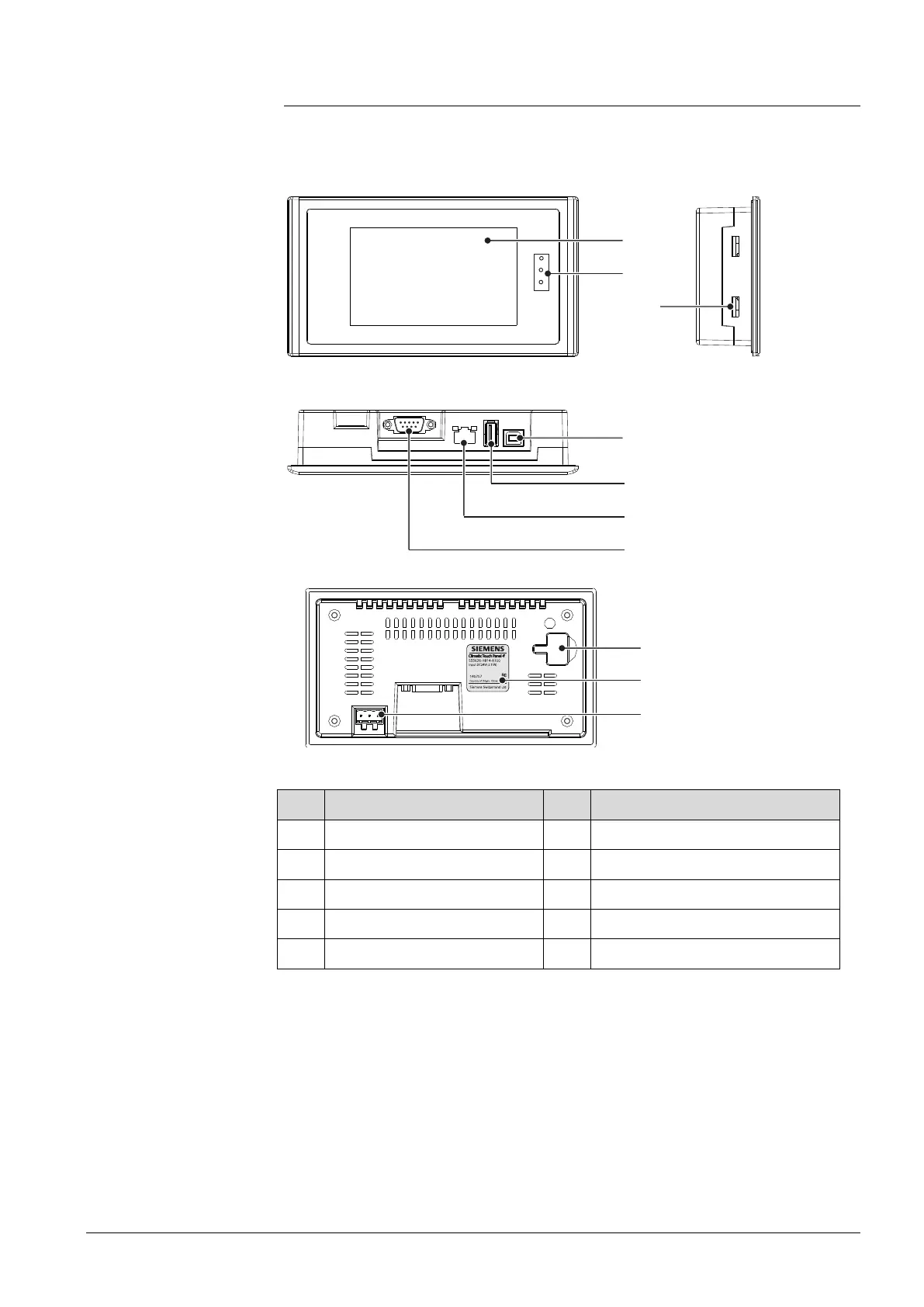

POL8T1.4X/STD (4.3")
No. Description No. Description
1 Display / touch screen 6 Ethernet port
2 LED indicators 7 RS485/RS232 communication port
3 Recesses for a mounting clip 8 DIP switches
4 USB-A port 9 Label
5 USB-B port 10 Power supply connection
