&RQILJXULQJ
S7-300 Automation System, Hardware and Installation: CPU 31xC and CPU 31x
5-44 A5E00105492-03
([DPSOH0D[LPXPGLVWDQFHVLQWKH03,VXEQHW

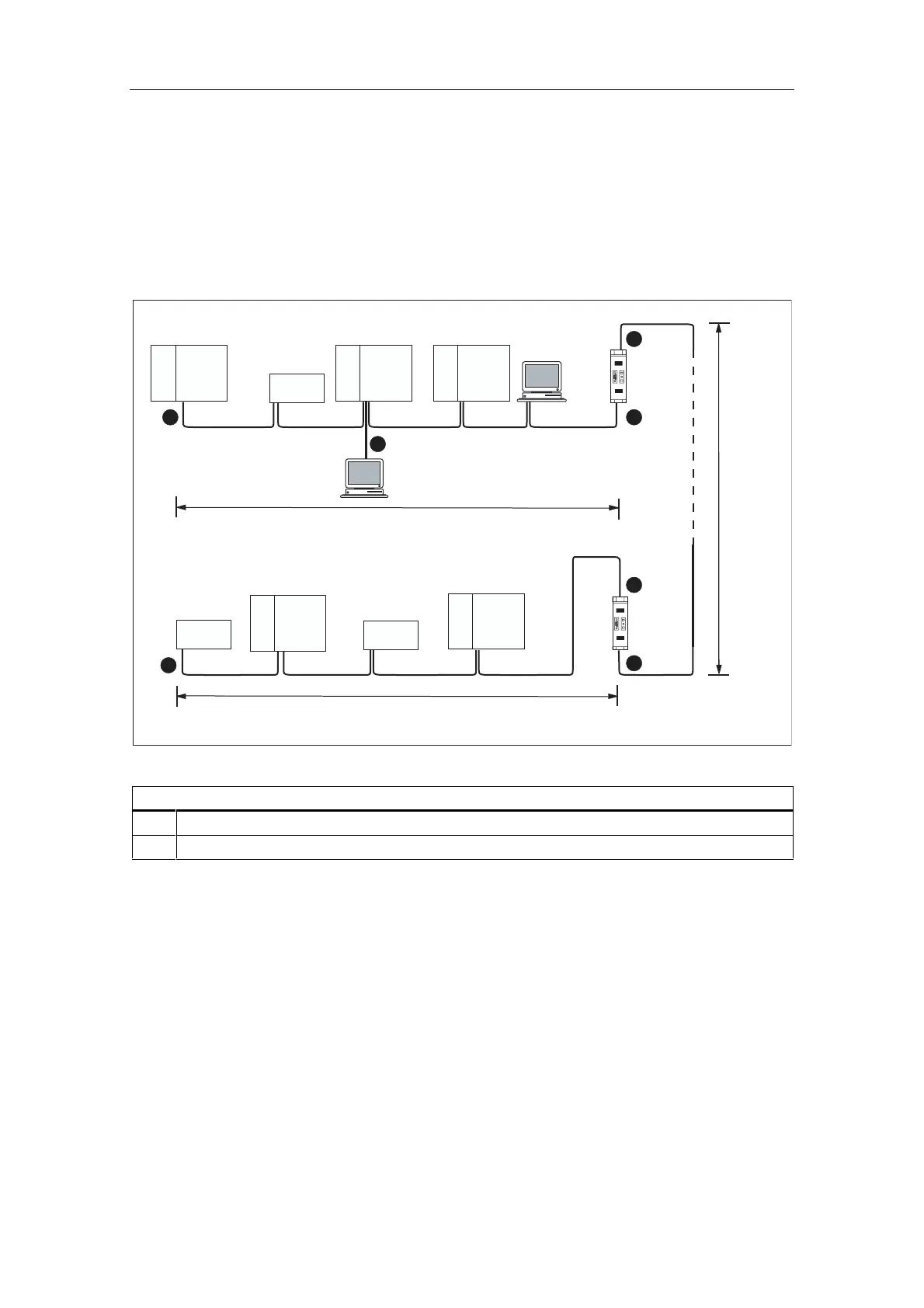

The figure below shows you:
• a possible MPI Subnet configuration
• maximum distances possible in an MPI subnet
• the principle of “Line extension“ using RS485 repeaters
max. 50 m
max. 50 m
PG
PG
RS 485-
Repeater
max. 1000 m
3
S7-300
CPU
PS
CPU
MPI addr. 3
3
S7-300
CPU
PS
CPU
MPI addr. 5
3
S7-300
CPU
PS
CPU
MPI addr. 6
MPI addr. 4
OP 27
MPI addr. 7
3
S7-300
CPU
PS
CPU
MPI addr. 8
RS 485-
Repeater
MPI addr. 9
OP 27
3
S7-300
CPU
PS
CPU
MPI addr. 10
MPI addr. 11
OP 27
MPI addr. 0
1
1
1
1
1
1
2
Figure 5-15 Example: Maximum distances in the MPI subnet
.H\WRQXPEHUVLQWKHILJXUH
 Terminating resistor inserted
 PG connected by means of a stub cable for maintenance purposes

