&RPPLVVLRQLQJ
S7-300 Automation System, Hardware and Installation: CPU 31xC and CPU 31x
A5E00105492-03
9-7
&RQQHFWLQJWKH3*WRVHYHUDOQRGHV
6WDWLRQDU\3*
1. Use bus connectors to connect a stationary PG in the MPI subnet to the other
nodes of the MPI subnet.

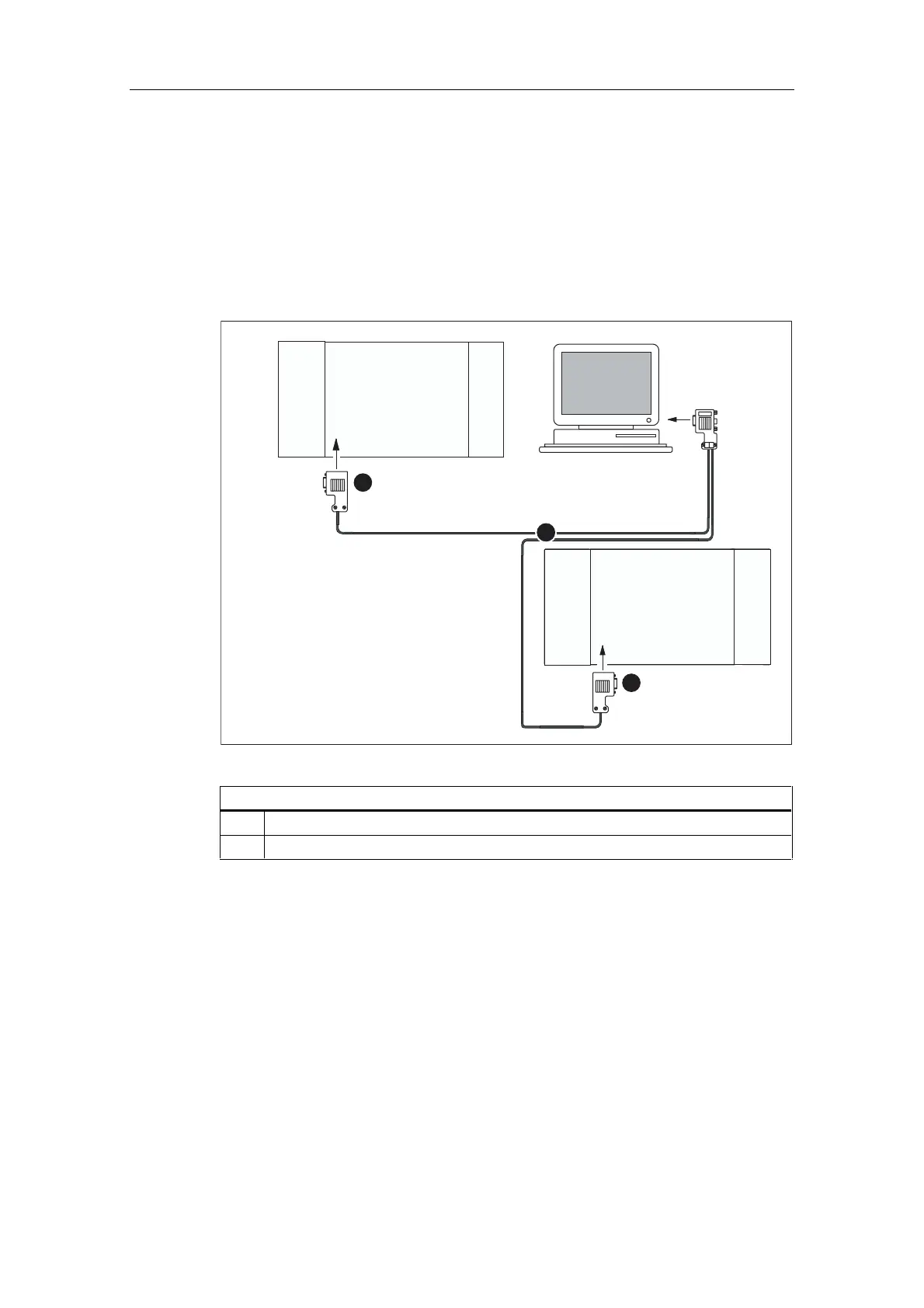

The following picture illustrates two networked S7-300s which are connected to
one another using bus connectors.
PG
SF
BUSF
DC5V
FRCE
RUN
ST OP
SIEM EN S
CPU
PS
2
SM
SM
2
1
CPU
PS
Figure 9-2 Connecting a PG to multiple S7-300 PLCs
7KHGLDJUDPLOOXVWUDWHVXQGHUQXPEHU
PROFIBUS bus cable
Connector with inserted terminating resistor
