0DLQWHQDQFH
S7-300 Automation System, Hardware and Installation: CPU 31xC and CPU 31x
A5E00105492-03
10-7
,QVWDOOLQJDQHZPRGXOH
Install the new module as follows:
1. Install new module of same type.
2. Pivot the module down into place.
3. Screw-tighten the module.
4. Slide the labeling strips into the module.
CPU
PS
1
2
4
3

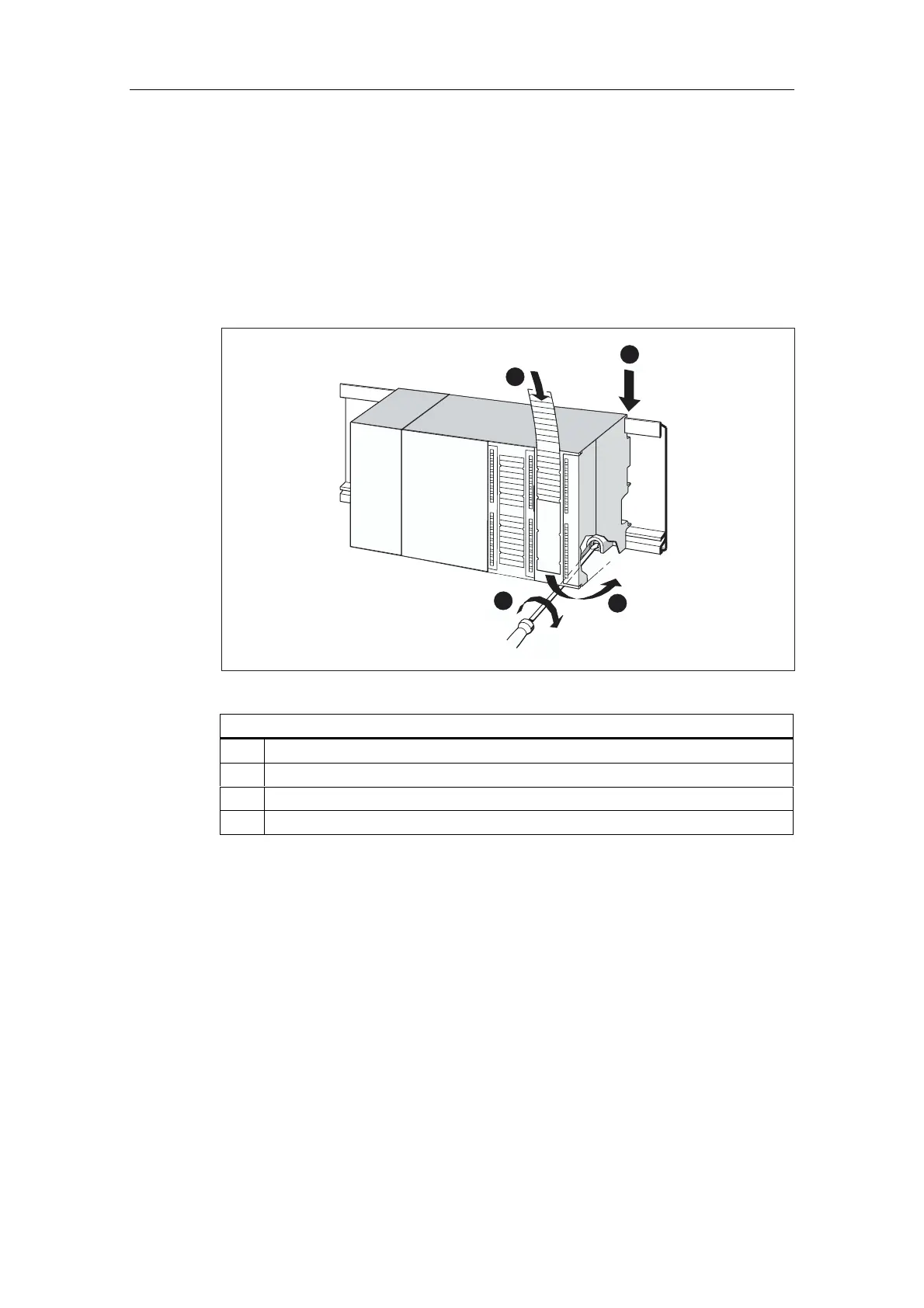

Figure 10-3 Installing a new module
7KHILJXUHLOOXVWUDWHVWKHGHVFULEHGVWHSV
Lower module onto rail.
Tilt module down.
Screw the module in tightly.
Insert labeling strips.
5HPRYLQJWKH)URQW&RQQHFWRU&RGLQJ
If you want to take a "used" front connector to wire another module, you can
remove its coding mechanism:
Simply push out the front connector coding with a screwdriver.
This upper part of the coding key must then be plugged back into the old module.
