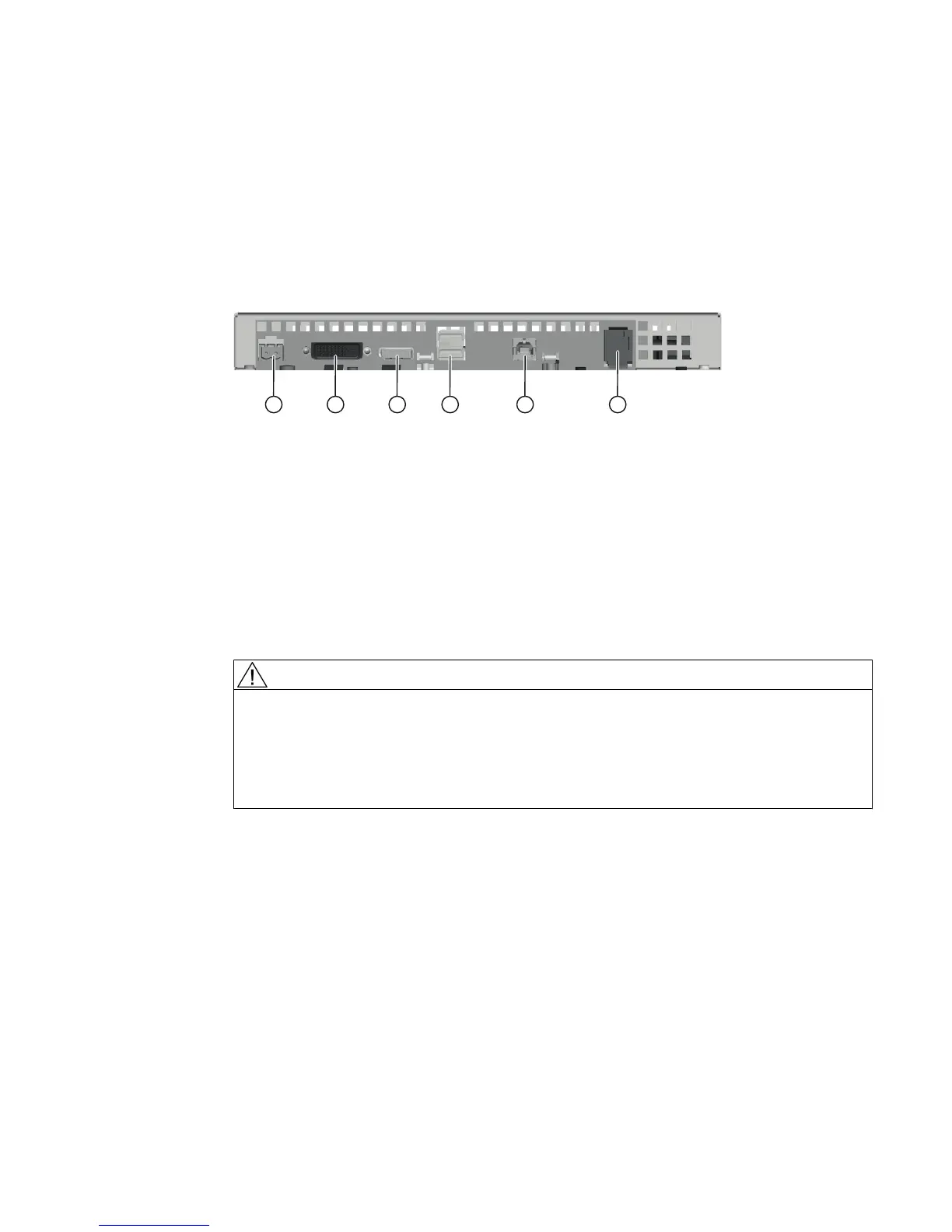

① X80 connection for the 24 VDC power sup‐
ply
④ X61/X62 USB type A
② X71 DVI-D interface ⑤ X60 USB type B
③ X70 DisplayPort interface ⑥ X63 USB link interface (USB 2.0) - RJ45 socket
Pin assignment
You can find the pin assignment of the interfaces in the standard documentation, Section
"Technical specifications" → "Interface description".
Protective conductor connection
WARNING
Personal injury or property damage may occur with no ground connection
Inadequate or non-existent ground connection will cause malfunction of the capacitive touch
screen. This can result in personal injury or property damage.
Always connect the device to a protective conductor. The protective conductor must be
connected directly to ground with low impedance.
ERGOline Stage 3
Manual, 02/2015, 6FC5397-4FP40-0BA0 19
