Byte Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
QB 5 - - - - - - - -
QB 6 - - - - - - - -
QB 7 - - - - - - - -
QB 8 - - - - - - - -
QB 9 - - KT-OUT6 KT-OUT5 KT-OUT4 KT-OUT3 KT-OUT2 KT-OUT1
4.3.4 Circuit diagrams
Handwheel (MCP 466C-T IE)

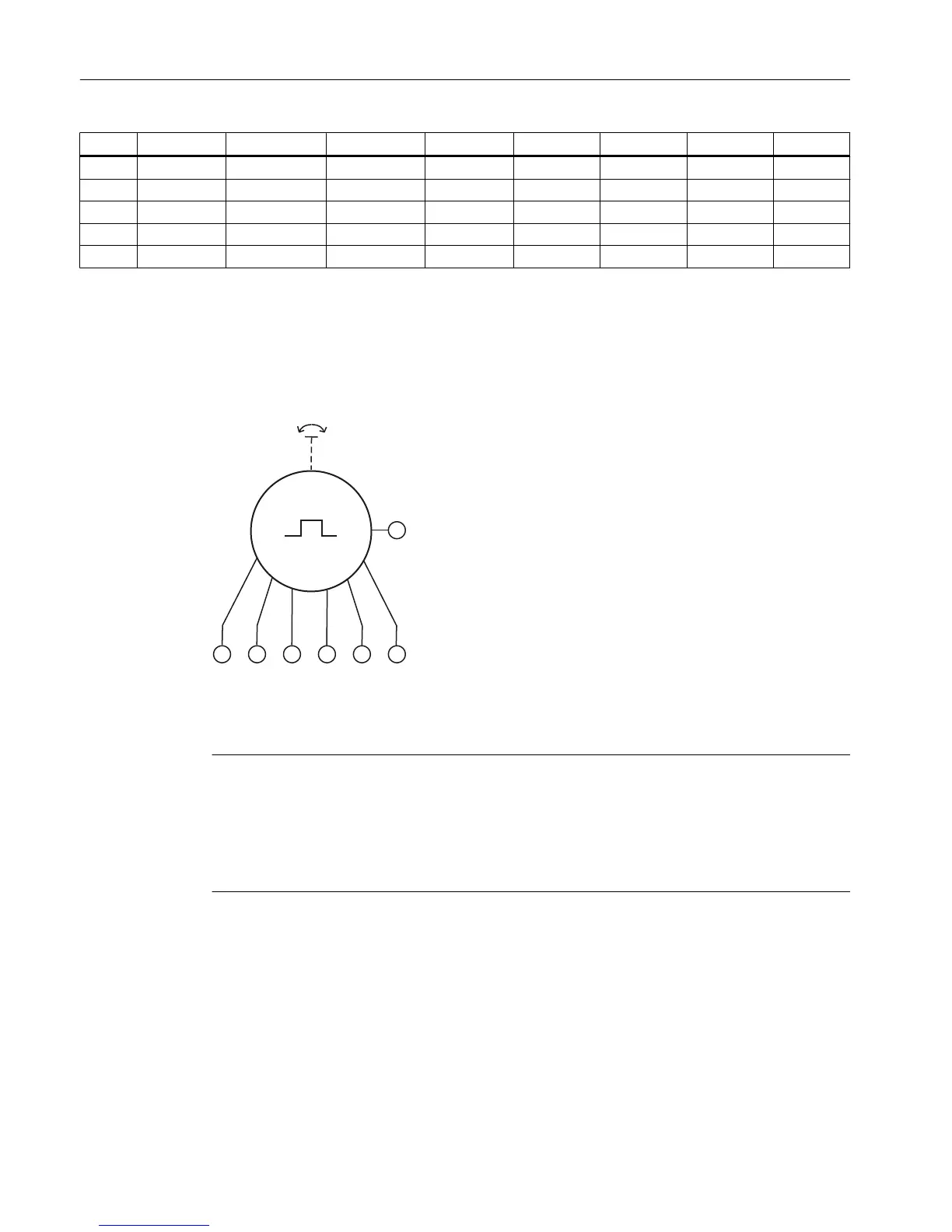

Figure 4-11 Handwheel block diagram
Note
When a connected handwheel triggers pulses from its idle position or in the event of tiny
contacts, connect it so that the label is facing the wrong way.
Exchange
- The wire of terminal A with the wire of terminal /A
- The wire of terminal B with the wire of terminal /B
Interfaces
4.3 Machine control panels
ERGOline Stage 3
36 Manual, 02/2015, 6FC5397-4FP40-0BA0
