5 Mounting / Installation
5.1 Assembly
The sounder base is fitted directly on the ceiling. The recess-mounted cable entry
or surface-mounted cable entry is as for a standard detector base.
1. Insert cables.
2. Use two screws to secure sounder base to ceiling.
− Ensure that the cables aren't pinched.
2
4
Ø max. 6 mm
2
1
3

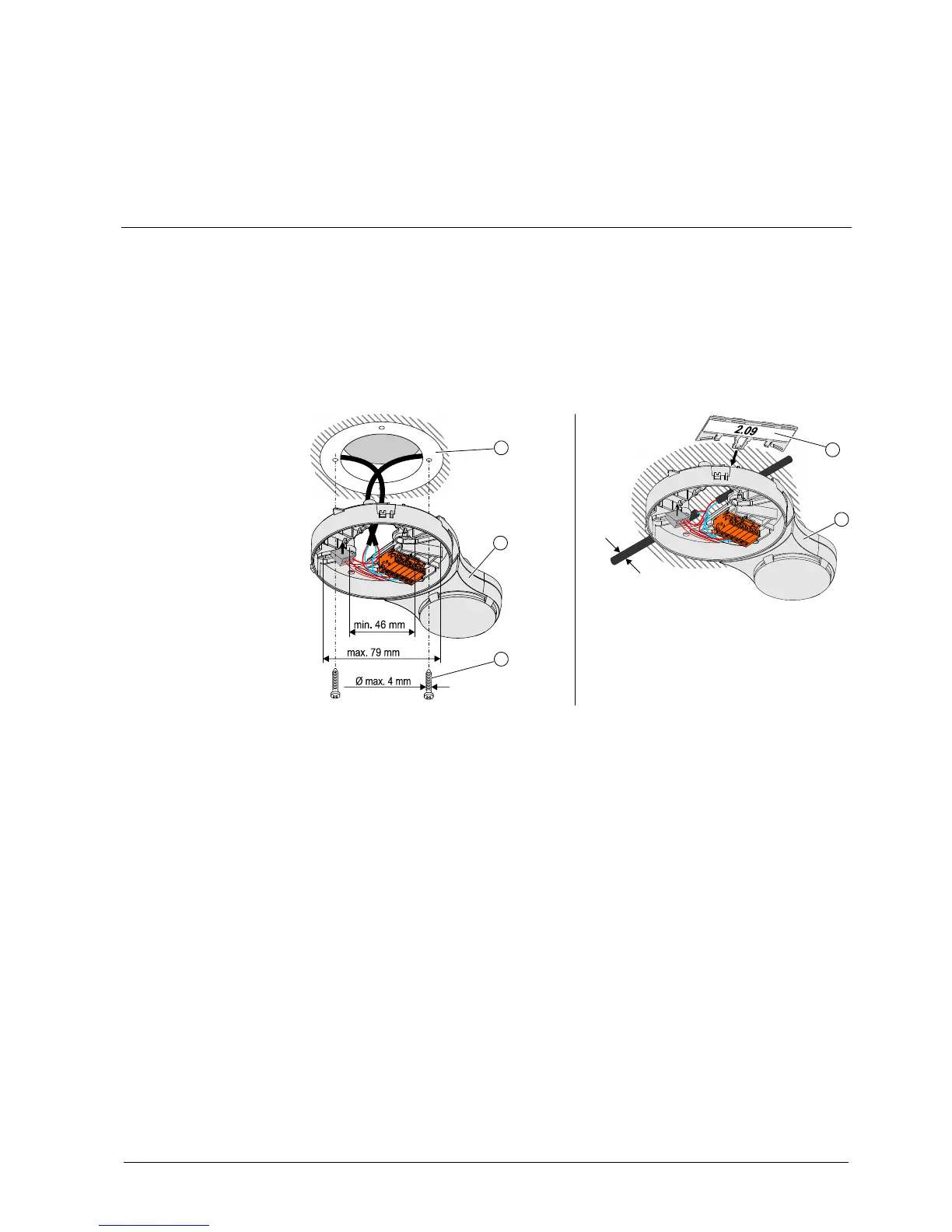

Installing a sounder base
1 Recessed box 3 Screws
2 Sounder base 4 Designation plate
See also
Designation plate FDBZ291 [ 24]
