Mounting / Installation
24
Building Technologies 007025_i_en_--
Fire Safety & Security Products 07.05.2010
5.3 Designation plate FDBZ291
1. Label designation plate FDBZ291 with location address of point detector or
alarm sounder.
2. Note the small mark on the installed point detector or alarm sounder and slide
designation plate into detector base or sounder base.

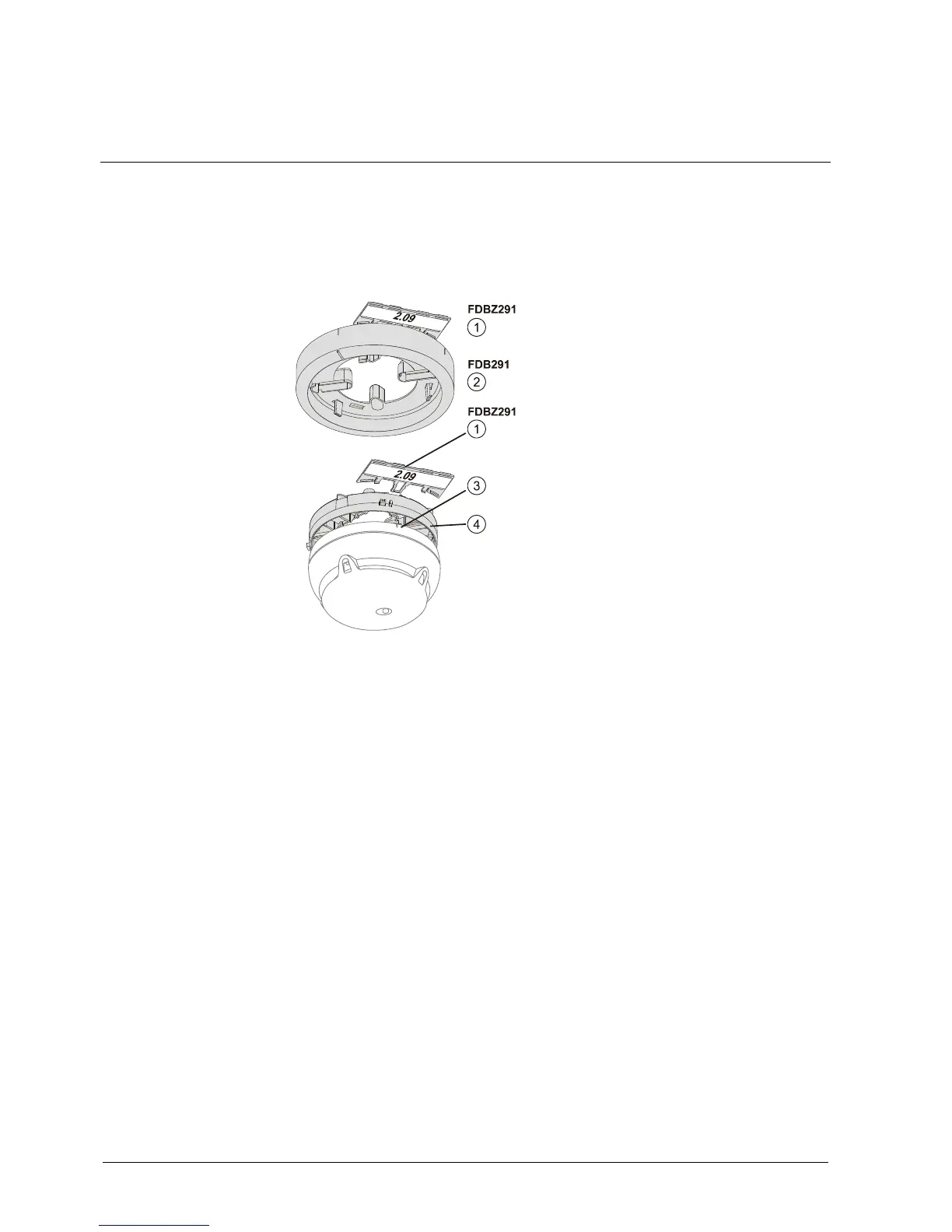

Installation of designation plate FDBZ291
1 Designation plate FDBZ291 3 Marks on point detector/alarm
sounder
2 Base attachment FDB291 4 Detector base/sounder base
See also
Designation plate FDBZ291 [ 18]
