Mounting / Installation
23
Building Technologies 007025_i_en_--
Fire Safety & Security Products 07.05.2010
Procedure
1. Connect sounder base as shown in connection diagram.
2. Press the wires flat into the sounder base so they don't get pinched when
installing the point detector.

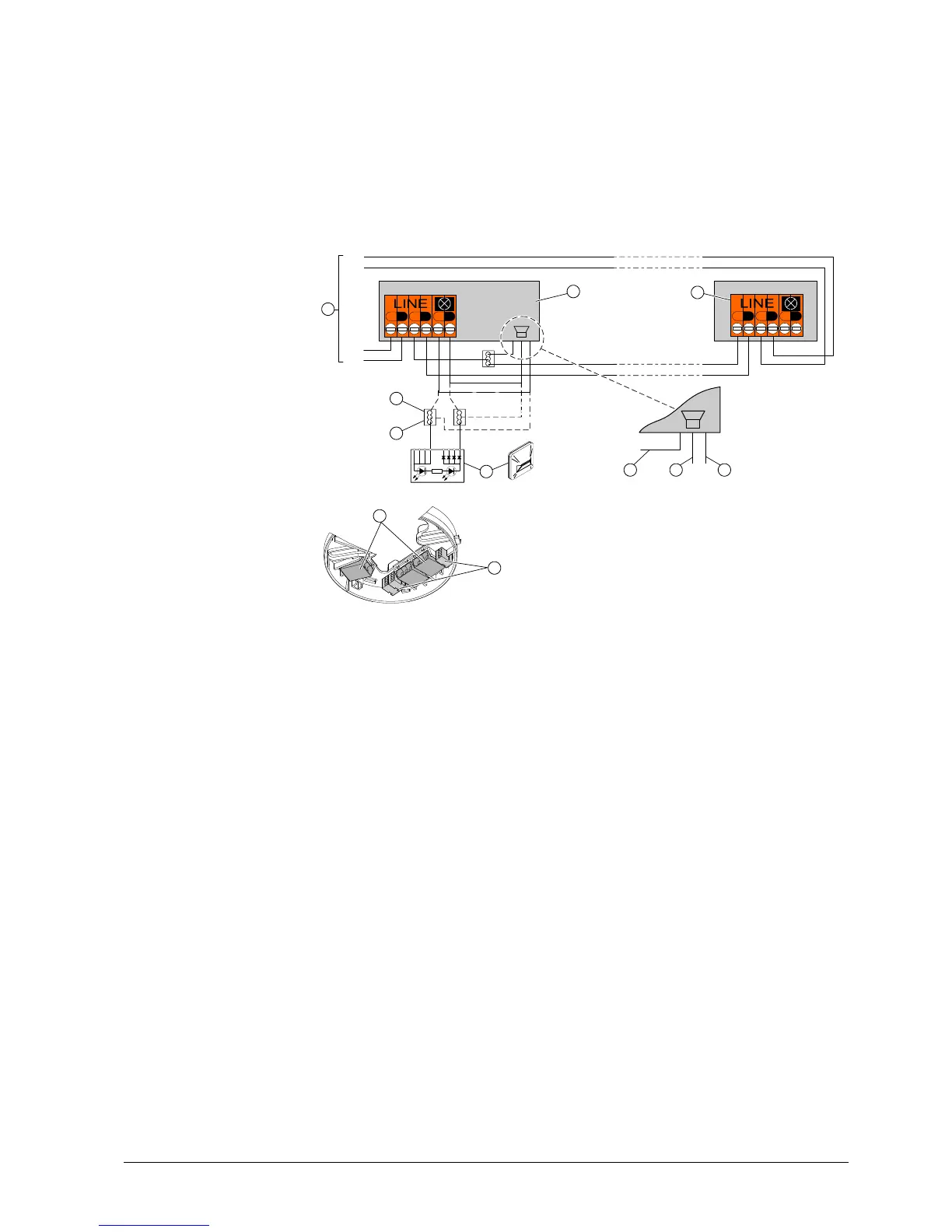

Connection diagram
+
-
+
-
+
-
-
+
FDSB29x
LINE
4
1
5
-
+
6
2
3
7
+
-
FDB2xx
+
-
+
-
+
-
4
5
89
Connection for sounder base
1 Control panel 6 Alarm indicator
2 Sounder base 7 Red
3 Detector base 8 Black
4 Connection terminals 9 Green
5 Micro terminals
See also
 Micro terminal DBZ1190-AA [ 18]
 Connection terminal DBZ1190-AB [ 19]
