Siemens Flowrite 599 Series User Manual

Flowrite 599 Series Two-Way Valves, 1/2 to 2-Inch, Bronze Body, ANSI 250 Technical Instructions
Document Number 155-184P25
May 2, 2016
Siemens Industry, Inc. Page 13
Dimensions,
Continued

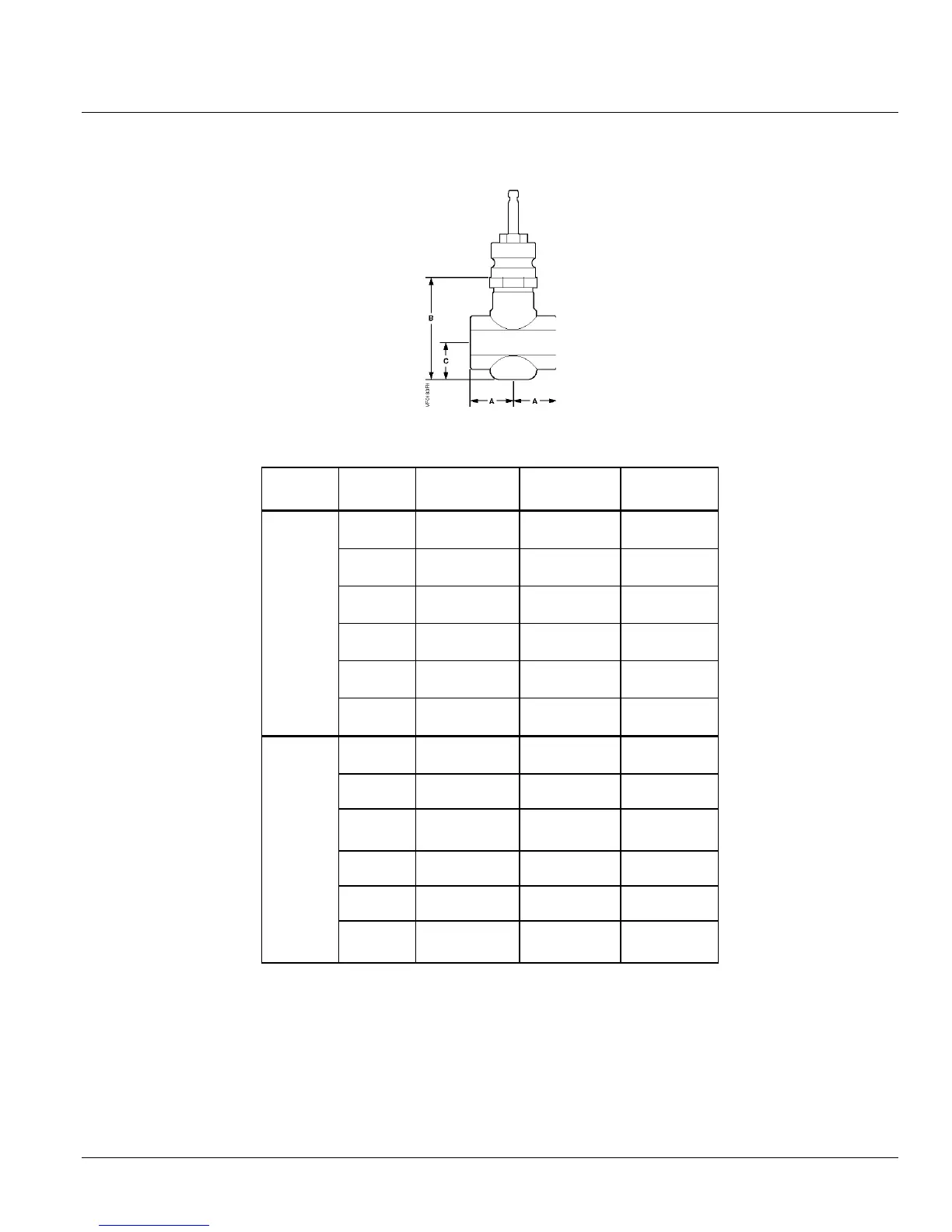

Table 11. 2-Way Female NPT x Female NPT (FxF Valve Dimensions in Inches (Millimeters).
Valve
Action
Valve
Size
A
B
C
Normally
Open
1/2
(15)
1-7/16
(36)
2-15/16
(74)
1-1/4
(31)
3/4
(20)
1-11/16
(43)
3-15/16
(99)
1-7/16
(36)
1
(25)
2
(50)
3-3/4
(96)
1-1/4
(32)
1-1/4
(32)
2-1/2
(62)
4-1/4
(108)
2
(51)
1-1/2
(40)
2-9/16
(65)
4-1/4
(108)
2
(51)
2
(50)
3-1/8
(79)
4-9/16
(116)
2-1/4
(57)
Normally
Closed
1/2
(15)
1-7/16
(36)
3-13/16
(97)
2-3/16
(55)
3/4
(20)
1-11/16
(43)
3-13/16
(97)
2-3/16
(55)
1
(25)
2
(50)
3-13/16
(97)
2-3/16
(55)
1-1/4
(32)
2-1/2
(62)
3-13/16
(97)
2-3/16
(55)
1-1/2
(40)
2-9/16
(65)
3-7/8
(99)
2-1/4
(58)
2
(50)
3-1/8
(79)
4-1/2
(114)
2-9/16
(65)
