Fiber network module FN2006 / FN2007
Pin assignments
1
7
Siemens Industry, Inc.
A6V10315048_b_en_US
Building Technologies Division 01/13/2012
1.4 Pin assignments
1.4.1 Wiring
Power supply wiring
If the fiber network module is installed in the panel, the supply does not have to be
routed redundantly.
If the fiber network module is installed in the panel, the relay contacts for supply
supervision do not have to be connected because the panel's power supply is
already supervised.
'Power A' and 'Power B' inputs can only be supplied by UL 864 approved regulated
power sources.
– Periphery board FCI2016/FCI2017, X1001 DC 24 V AUX
– PAD-3/4
FN2006/FN2007
A1
B1
A2
B2
Line 1
Line 2
Power A
Power B
Circuit 1
+
NC
NO
C
-
+
NC
NO
C
-
+
-
+
-
X1001
24 V
AUX
Fire control panel
Periphery board
FCI2016 / FCI2017
1
1
1
A1
-
B1
1
Circuit 1
A2
-
B2
1

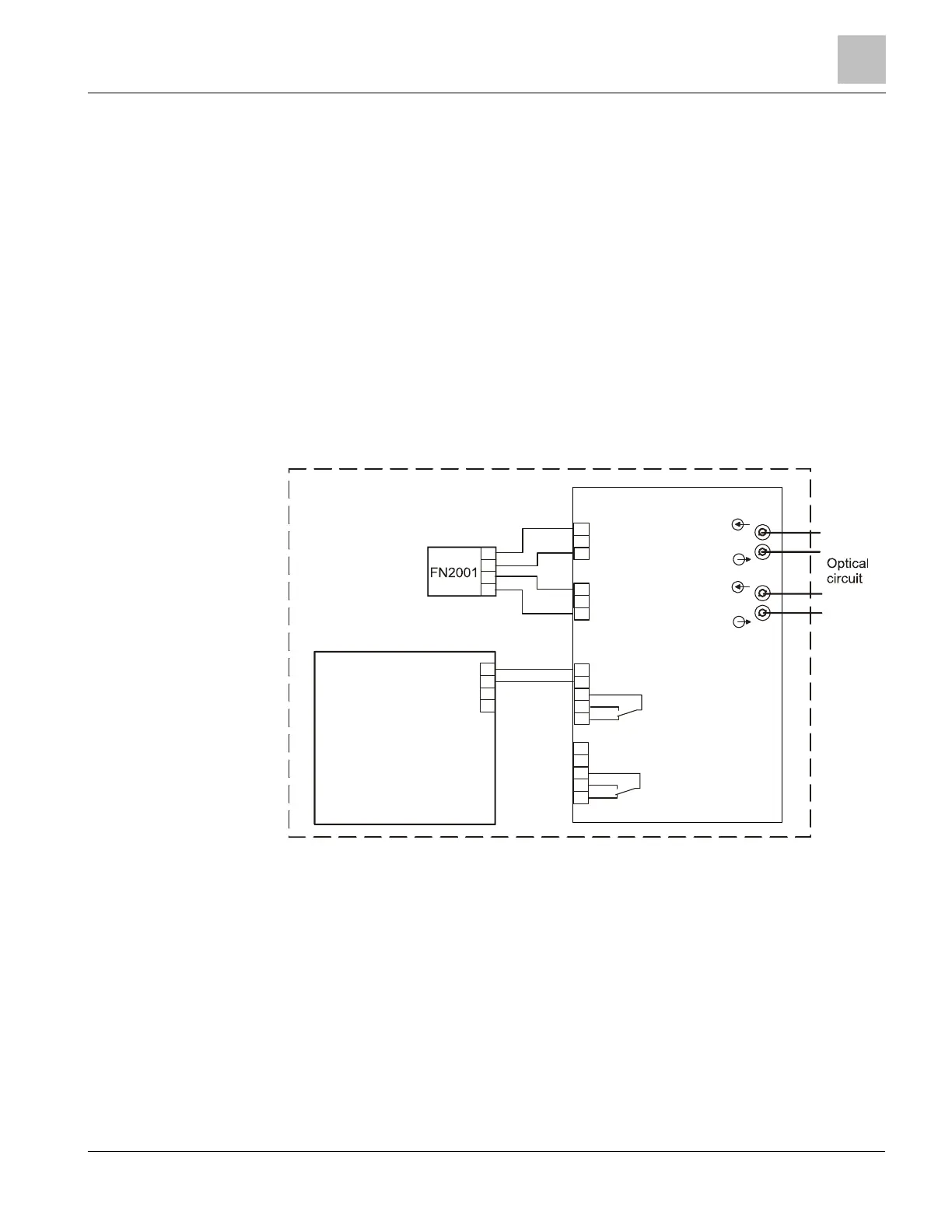

Wiring of fiber network module, installed in fire control panel
