Siemens FT2040 User Manual

Operation (short) MP 2.1
FC20xx Fire control panel
FT2040 Fire terminal
ALARM-Procedure Page 1
Switching off detector zones / detectors Page 2
Switching on detector zones / detectors Page 4
Procedure in case of Fault Page 4
Document ID: 009906_d_en_GB Edition: 05.2009
1 of 4

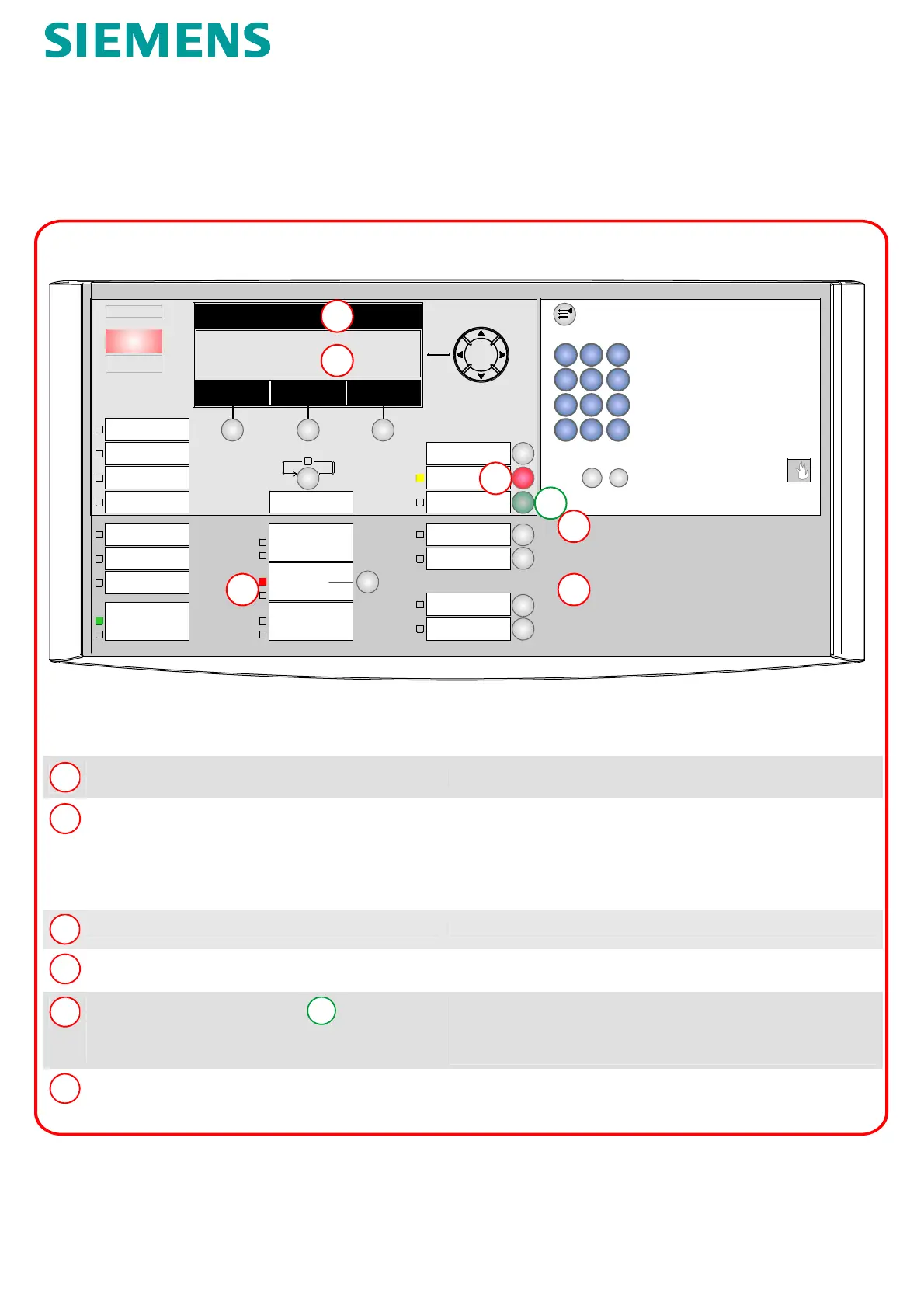

ALARM Procedure
no Alarm Verification Concept (AVC), suggested possible procedure, subject to local requirements
Action / Condition Consequence / Status
1.
Press <Acknowledge> on the PMI.
(Password required)
Buzzer is turned off, alarm is acknowledged.
2.
Read top line on display
● "Remote transmission activated"
● "Fire brigade called"
● "Call fire brigade!"
– Remote transmission switched off / not available
or defective
● Transmission to fire brigade not confirmed yet.
● ALARM transmitted to fire brigade.
● Fire brigade must be called by phone!
No automatic transmission to fire brigade
Dial the following no.:
3.
Read fire location on display.
4.
Go to fire location.
Information on the cause of ALARM; if required, initiate required
emergency measures and damage limitation.
5.
In case of a minor incident:
R
Press
<Reset>.
(Password required)
Fire detection system is in normal condition unless another event
occurs.
It may be necessary to vent the room before resetting is possible.
Elements that cannot be reset can be switched off temporarily.
6.
During the alarm, optionally press
< Sounders Evacuate > on the PMI.
(Password required)
Deactivates the acoustic alarm devices.
(Reactivation is possible by pressing the button again.)
1 2 3
4 5 6
7 8 9
*
0 #
C
ok
a
b
c
~
g
h
i
j
k
l
m
n
o
p
q
r
s
t
u
v
w
x
y
z
d
e
f
ALARM
Fx20x
x
6.
2.
1.
R
4.
Go to fire location
5.
3.
Execute
Commands
More
Options
S
witch to
Standard view
FAUL
T
ISOLATION
DETECTOR TES
T
System
On
Fault
Scroll alarms
Remote alarm
Active
Fault / Off
Sounders
Fault / Off
Active
Silence buzzer
Acknowledge
Reset
Alarm delay off
Premises manned
Control function
Fault / Of
Active
Call Fire Brigade!
001 ALARM
Autom. FIRE ALARM Zone no.2
Main Building
Ground Floor
1/01 Meeting Room 001
