15

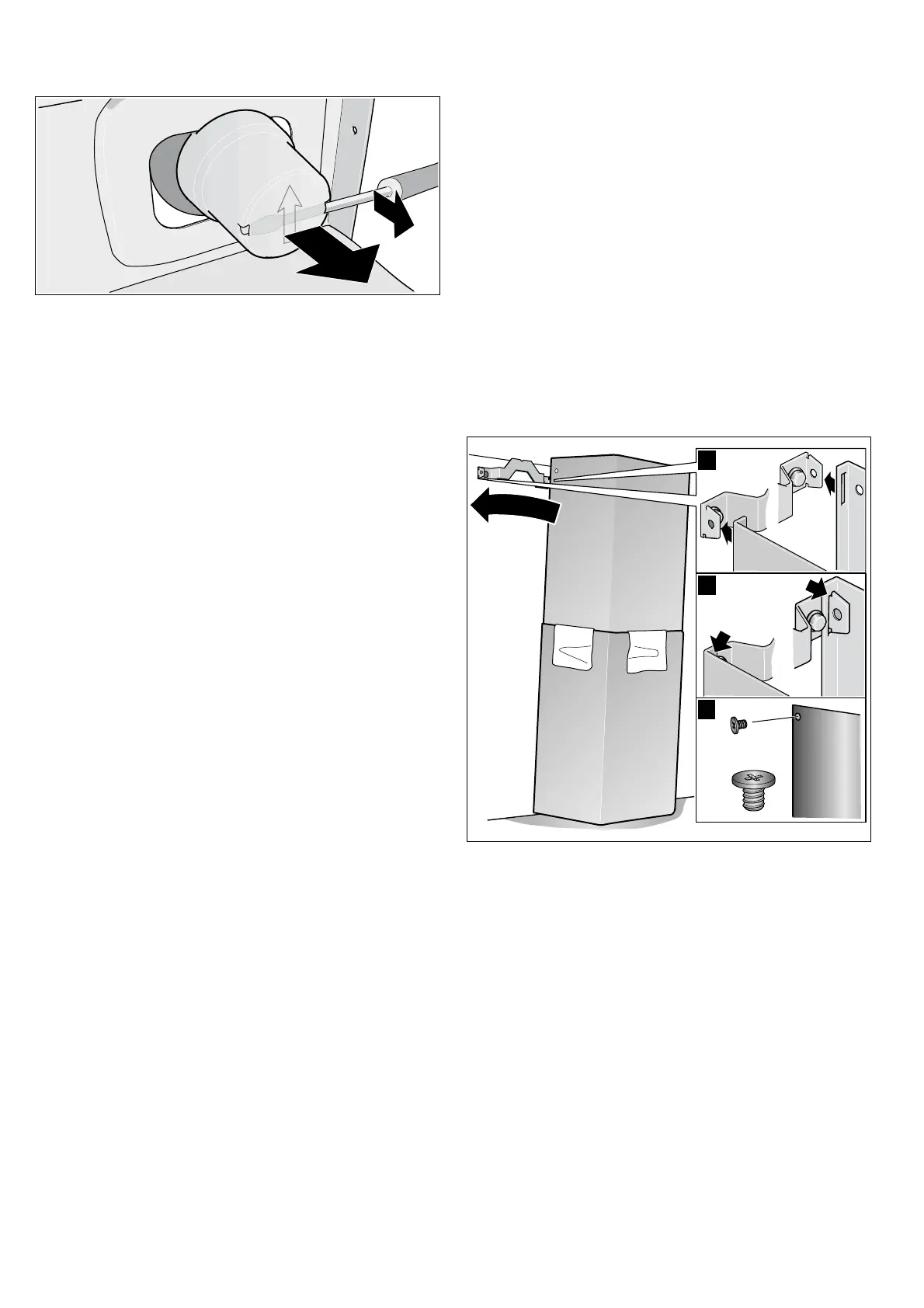

Removing the safety caps
If the safety caps must be removed, use a flat screwdriver.
Connecting the pipes
Note: If using an aluminium pipe, smooth the connection area
beforehand.
Exhaust-air pipe Ø 150 mm (recommended size)
Attach the exhaust-air pipe directly to the air-pipe connector
and seal.
Exhaust-air pipe Ø 120 mm
1. Attach the reducing connector directly to the air-pipe
connector.
2. Attach the exhaust air pipe to the reducing connector.
3. Seal both joints appropriately.
Attaching the flue duct
: Risk of injury!
From sharp edges during installation. Always wear protective
gloves while installing the appliance.
1. Separate the flue ducts.
To do this, remove the adhesive tape.
2. Remove the protective foil from both flue ducts.
3. Push one flue duct into the other.
Notes
■ To prevent scratches, lay paper over the edges of the lower
flue duct to protect the surface.
■ Slots of the inner flue duct point downwards.
4. Place flue ducts on the appliance.
5. Push the inner flue duct upwards and attach it to the fixing
brackets on the left and right.
¨
6. Press the flue duct downwards until it engages. ©
7. Screw the flue duct to the sides of the fixing bracket using
two screws.
ª
[
$
%
&
