Installation

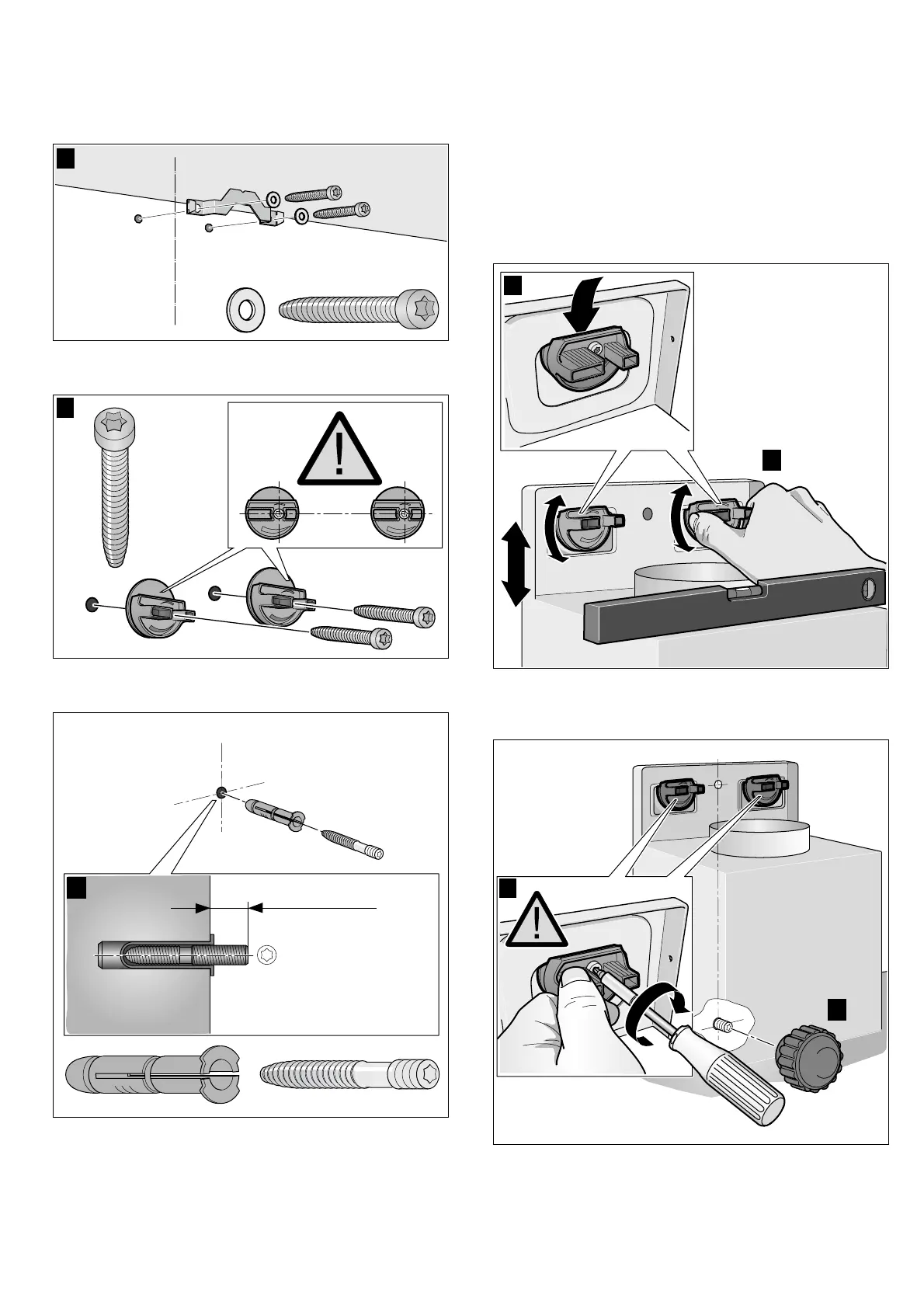

1. Screw on the fixing bracket for the flue duct. ¨
2. Screw on brackets for the extractor hood hand-tight.
Do not firmly tighten the screws. ©
3. Screw in the threaded bolt, leaving it protruding out
of the wall by 5–9 mm. ª
Attaching and aligning the appliance
1. First, remove the protective foil from the back of the
appliance and, following installation, remove the foil
completely.
2. When attaching the appliance, ensure that it
engages firmly with the brackets. «
3. Align the appliance horizontally by turning the
brackets. If required, the appliance can be moved to
the right or left. ¬
4. Firmly tighten the screws for the brackets. When
doing so, hold the brackets securely in place. ®
5. Firmly tighten the knurled nuts. ¯
[
$
[
%
NJONN
NBYNN
&
'
(
)
*

Siemens LC97BCP50 Specifications

General

Noise level	55 dB
Intensive speed	Yes
Number of speeds	3
Type of extraction	Ducted/Recirculating
Noise level (low speed)	43 dB
Maximum extraction power	690 m³/h
Maximum recirculating power	380 m³/h
Noise level (intensive speed)	66 dB
Fluid dynamic efficiency class	A
Noise level (recirculation mode)	70 dB
Grease filtering efficiency class	B
Type	Wall-mounted
Cord length	1.3 m
Control type	Touch
Product color	Stainless steel
Built-in display	No
Exhaust connection diameter	150 mm
Bulb type	LED
Bulb power	1.5 W
Illuminance	373 lx
Number of bulbs	3 bulb(s)
Current	10 A
Motor power	140 W
Connected load	145 W
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Annual energy consumption	30 kWh
Number of filters	1 pc(s)
Grease filter type	Aluminum

Weight and Dimensions

Depth	500 mm
Width	898 mm
Height	628 mm
Weight	18400 g
Height (max)	1139 mm
Height (min)	809 mm
Height without chimney	46 mm
