Connecting the pipes
Note: If using an aluminium pipe, smooth the
connection area beforehand.
Exhaust-air pipe Ø 150 mm (recommended size)
Attach the exhaust-air pipe directly to the air-pipe
connector and seal.
Exhaust-air pipe Ø 120 mm
1. Attach the reducing connector directly to the air-pipe
connector.
2. Attach the exhaust air pipe to the reducing
connector.
3. Seal both joints appropriately.

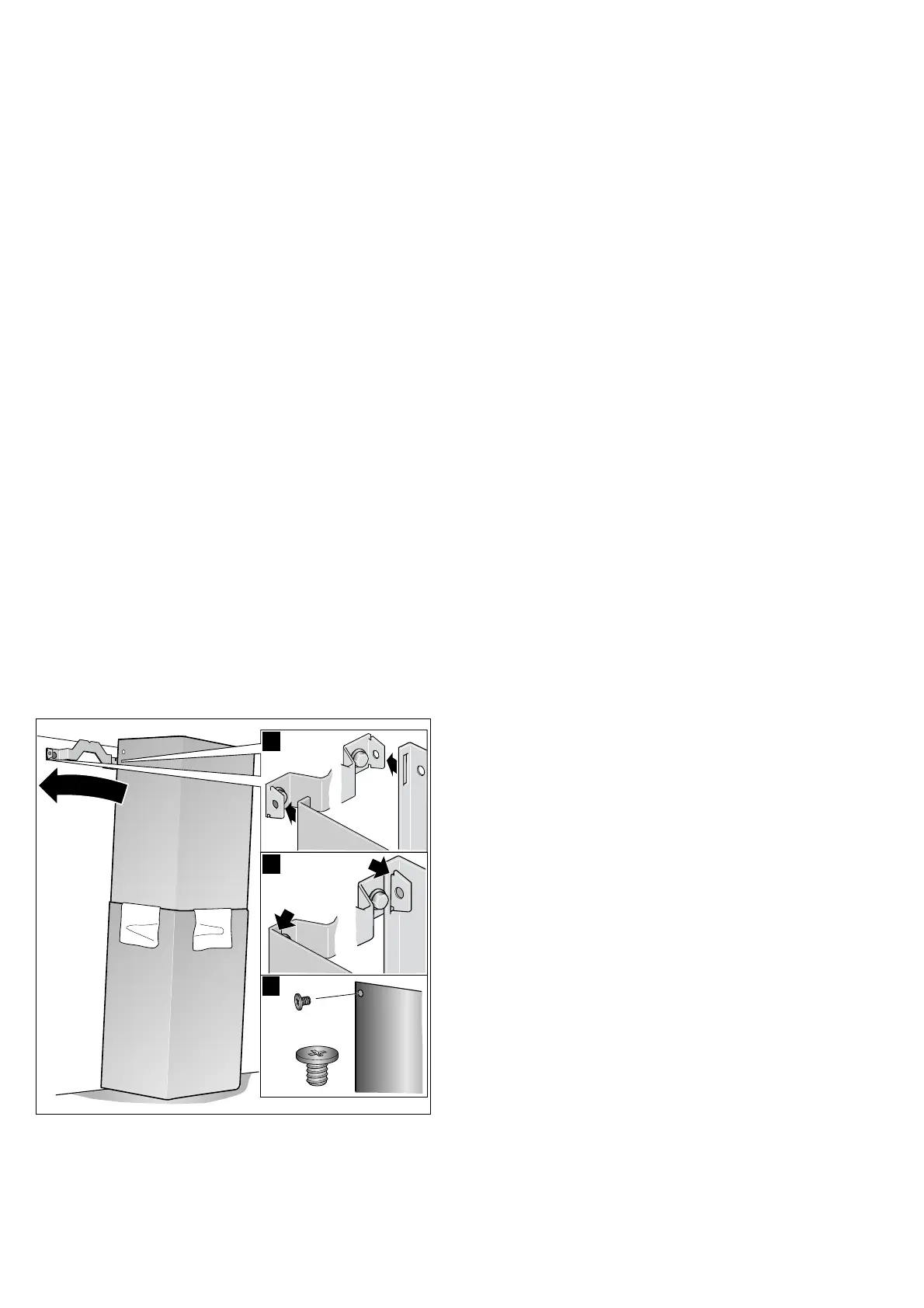

Attaching the flue duct
:Warning – Risk of injury!
Components inside the appliance may have sharp
edges. Wear protective gloves.
1. Separate the flue ducts.
To do this, remove the adhesive tape.
2. Remove the protective foil from both flue ducts.
3. Push one flue duct into the other.
Notes
– To prevent scratches, lay paper over the edges of
the lower flue duct to protect the surface.
– Slots of the inner flue duct point downwards.
4. Place flue ducts on the appliance.
5. Push the inner flue duct upwards and attach it to the
fixing brackets on the left and right. ¨
6. Press the flue duct downwards until it engages. ©
7. Screw the flue duct to the sides of the fixing bracket
using two screws. ª
[
$
%
&

Siemens LC97BCP50 Specifications

General

Noise level	55 dB
Intensive speed	Yes
Number of speeds	3
Type of extraction	Ducted/Recirculating
Noise level (low speed)	43 dB
Maximum extraction power	690 m³/h
Maximum recirculating power	380 m³/h
Noise level (intensive speed)	66 dB
Fluid dynamic efficiency class	A
Noise level (recirculation mode)	70 dB
Grease filtering efficiency class	B
Type	Wall-mounted
Cord length	1.3 m
Control type	Touch
Product color	Stainless steel
Built-in display	No
Exhaust connection diameter	150 mm
Bulb type	LED
Bulb power	1.5 W
Illuminance	373 lx
Number of bulbs	3 bulb(s)
Current	10 A
Motor power	140 W
Connected load	145 W
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Annual energy consumption	30 kWh
Number of filters	1 pc(s)
Grease filter type	Aluminum

Weight and Dimensions

Depth	500 mm
Width	898 mm
Height	628 mm
Weight	18400 g
Height (max)	1139 mm
Height (min)	809 mm
Height without chimney	46 mm
