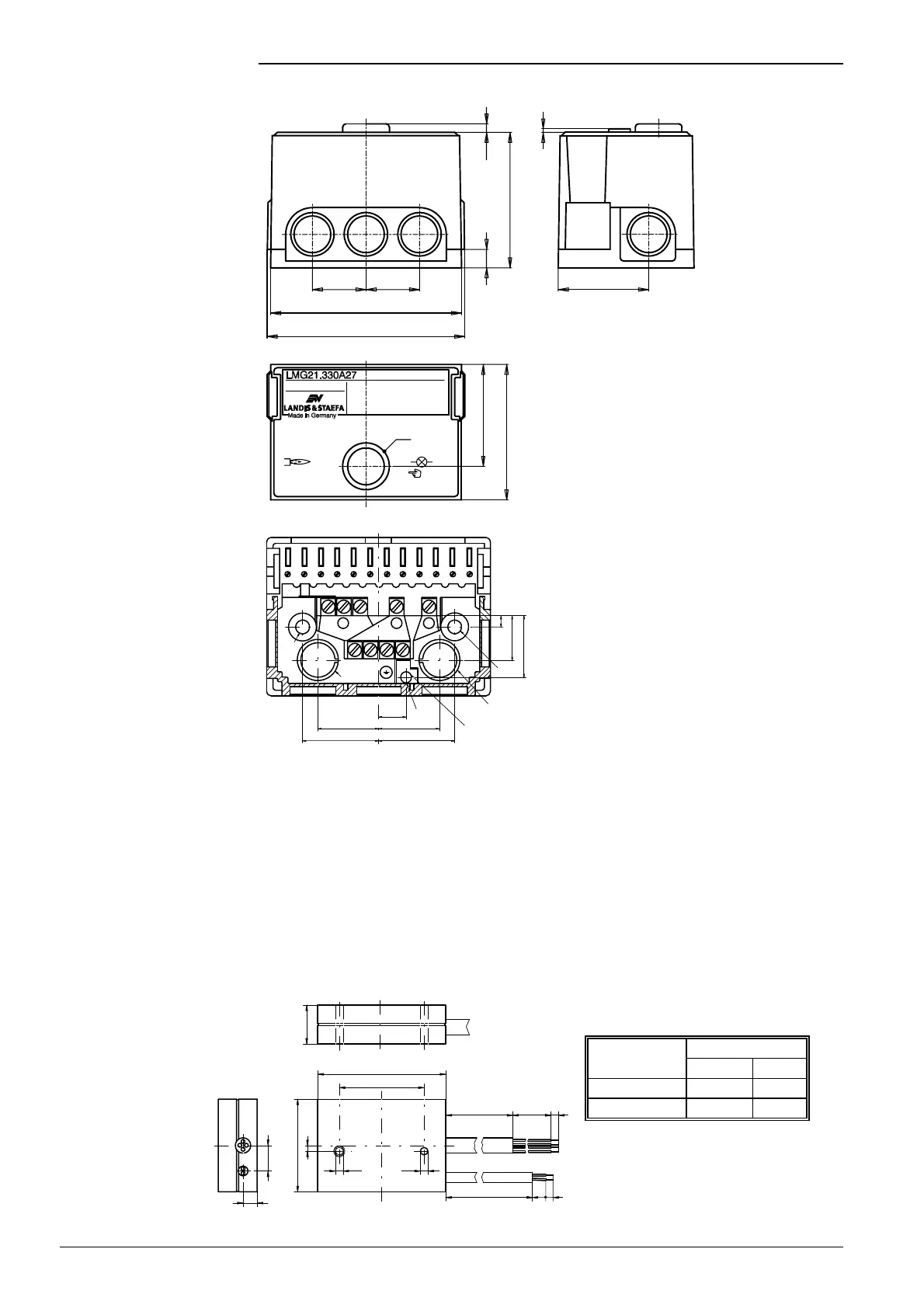

Dimensions in mm
AGK11...
Plug-in base with screw terminals
Hatched: position of cable gland holder or cable holder
«B»: holes for cable entry
«31», «32»: auxiliary terminals
«N»: neutral terminals, connected to neutral input (terminal 2)
Underneath: 4 earth terminals, joining a lug for earthing the burner
Mandatory: (AGK11...)
Connection of earthing lug «C»
and
fixing screws in «A» to the burner ground (using a metric screw with a
lockwasher or similar)
Dimensions
Burner control
5,5
62,5
9
25
25
88
91
1
41,5
22
46,5
62
7421m01/0398
TSA 3 sec.
CE - 0085AT0010
9550
12VA
IP40
FS
< 3 sec. Reset
> 3 sec. Diagn.
AL
230 V~ 50-60 Hz
Burner control with plug-in base
AGK11...
and
cable gland holders
AGK65...
(can be inserted in the base)
Plug-in base
7421m02/0398
24
24
30 30
11
4,5Ø
C
B
4
17
23,5
A
16,2
5,4
Ø
Ø
N
31
32
123456 789101112
Ancillary unit AGQ2...A27
90,5
60
220
69
6
A
B6
5,4
5,4
13
18
4
65,6
27,5
7421m04/0398
Type reference Dimensions
AB
AGQ2.1A27 500 19
AGQ2.2A27 300 34
