LMV5 QSG Rev 4 Sec 1 Pg 4 www.scccombustion.com

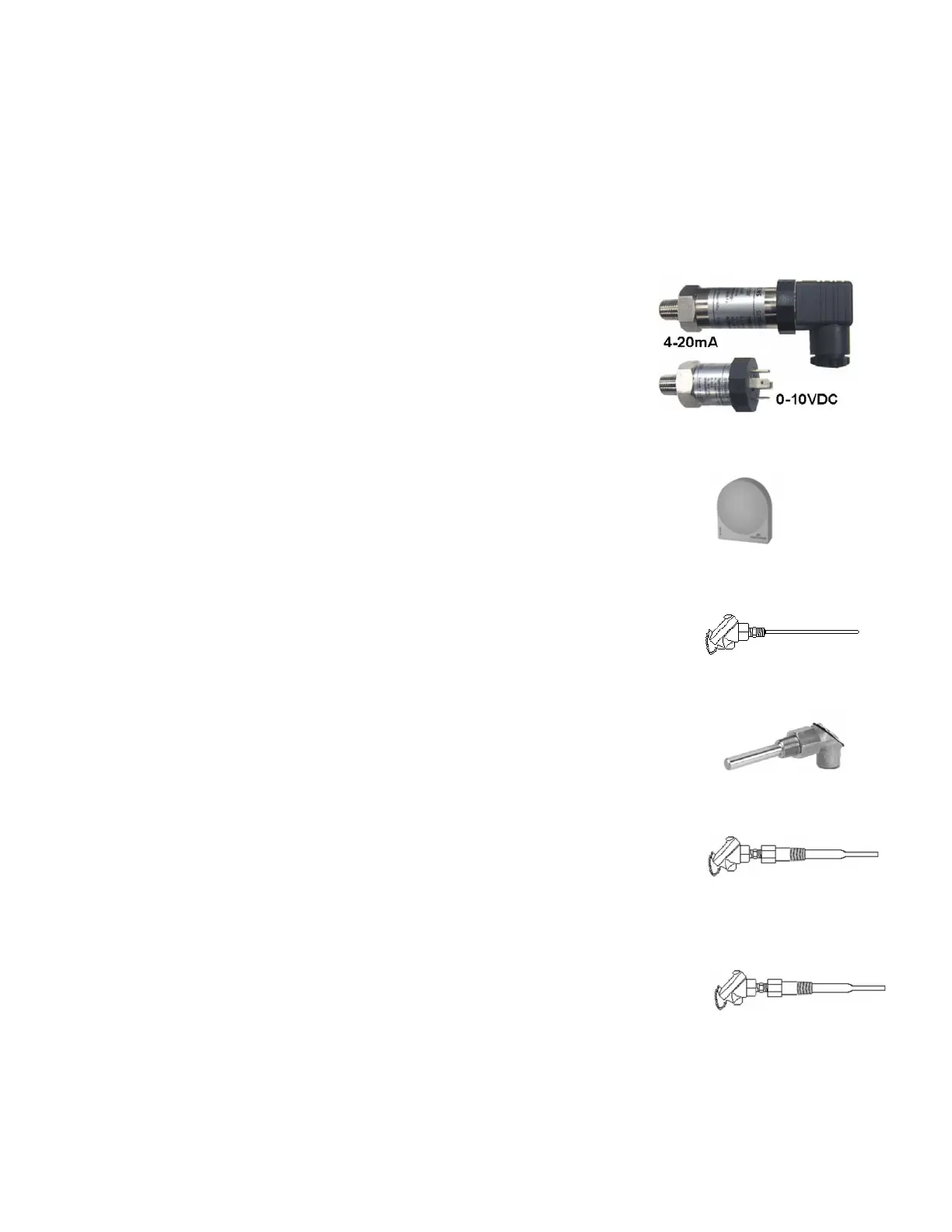

Temperature / Pressure Sensor Options
Notes: Sensors cannot be used with an LMV51.040xx (no load controller)
For 0-15 PSIG applications, 0-10 VDC is recommended
Water temperature sensor is needed for temperature based cold start
7MF1564xx.. Steam pressure sensors
Pressure connection is male 1/4” NPT
1/2” NPSM conduit connection, terminal connections
PSIG 4-20 mA 0-10 VDC
0-15
7MF15644 BB0 03EA1 7MF15644 BB1 03EA1
0-30
7MF15644 BE0 03EA1 7MF15644 BE1 03EA1
0-60
7MF15644 BF0 03EA1 7MF15644 BF1 03EA1
0-150
7MF15644 CA0 03EA1 7MF15644 CA1 03EA1
0-200
7MF15644 CB0 03EA1 7MF15644 CB1 03EA1
0-300 7MF15644 CD0 03EA1 7MF15644 CD1 03EA1
0-500
7MF15644 CE0 03EA1 7MF15644 CE1 03EA1
QAC22 1000 ohm 2 wire nickel RTD
Needed for ambient temperature and efficiency calculations
0.56 ” opening, terminal connections
Range -20 to 125
o
F
RBF195M482-010-00-8HN31
1000 ohm 2 wire platinum RTD, with aluminum weather head
Needed for stack temperature and efficiency calculations
1/2” NPT SS connection,10” insertion x 1/4” OD probe
3/4” NPT conduit connection, terminal connections
Range -40 to 900
o
F
QAE2020.005 1000 ohm 2 wire platnium RTD (Replaces 556-541)
Needed for ambient temperature or water temperature
4” x 1/4” OD spring loaded probe, 4” long SS thermowell,
3/4” NPT conduit connection, 3” wire leads
Range -13 to 266
o
F
RBF195M483- S4C05(1/2)09- SL-6HN31
1000 ohm 3 wire platinum RTD, with aluminum weather head
Needed for water temperature
4” insertion, spring loaded probe, 1/2” NPT SS thermowell
3/4” NPT conduit connection, terminal connections
Range -40 to 900
o
F
R1T185M483- S4C05(1/2)09- SL-6HN31
100 ohm 3 wire platinum RTD, with aluminum weather head
Needed for water temperature
4” insertion, spring loaded probe, 1/2” NPT SS thermowell
3/4” NPT conduit connection, terminal connections
Range -40 to 900
o
F
