Building Technologies Basic Documentation LMV5... CC1P7550en
9 Commissioning instructions for the LMV5 22.05.2018
Example:
Stage S1 S2 on S2 off S2 S3 on S3 off S3
Air 35.0° 43.0° 45.0° 53.0° 61.0° 62.0° 69.0°
AUX 13.0° 28.0° 20.0° 43.0° 50.0° 50.0° 54.0°
80
45
Fuel-air ratio (multistage operation)
Position [°]
7550d27en/0715
70
60
50
40
30
20
10
0
70
100 %
Air actuator positions "down"
Auxiliary actuator positions "down"
Air actuator positions "up"
Auxiliary actuator positions "up"
S1 S2 OFF S2 ON S2 S3 OFF S3 ON S3
Load [%]

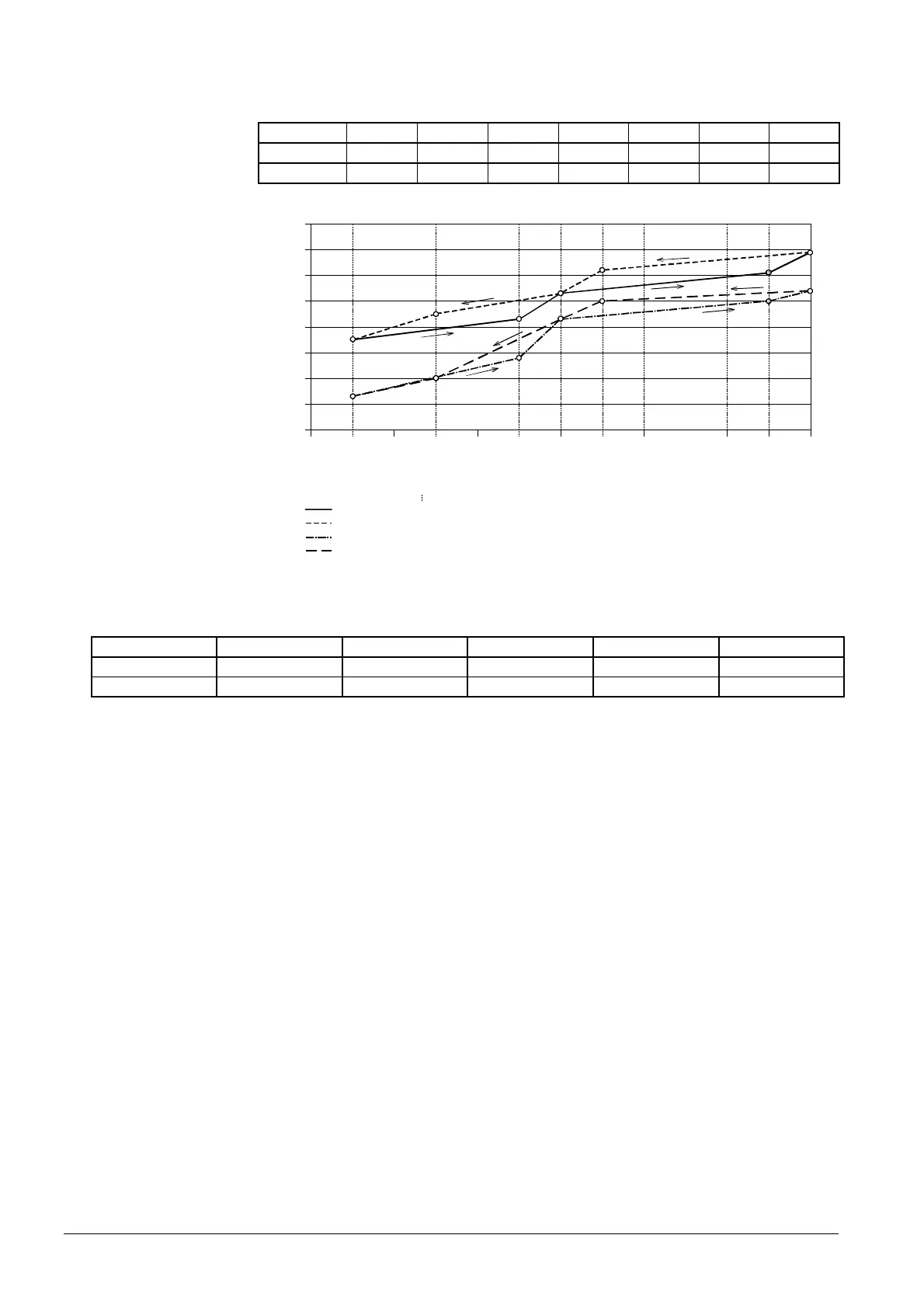

Figure 82: Fuel-air ratio control – multistage operation
Select Autom/Manual/Off and then Burner off.
Menu level 1 Menu level 2 Menu level 3 Menu level 4 Menu level 5 Menu level 6
ManualOperation
Autom/Manual/Off
26. Shutdown
