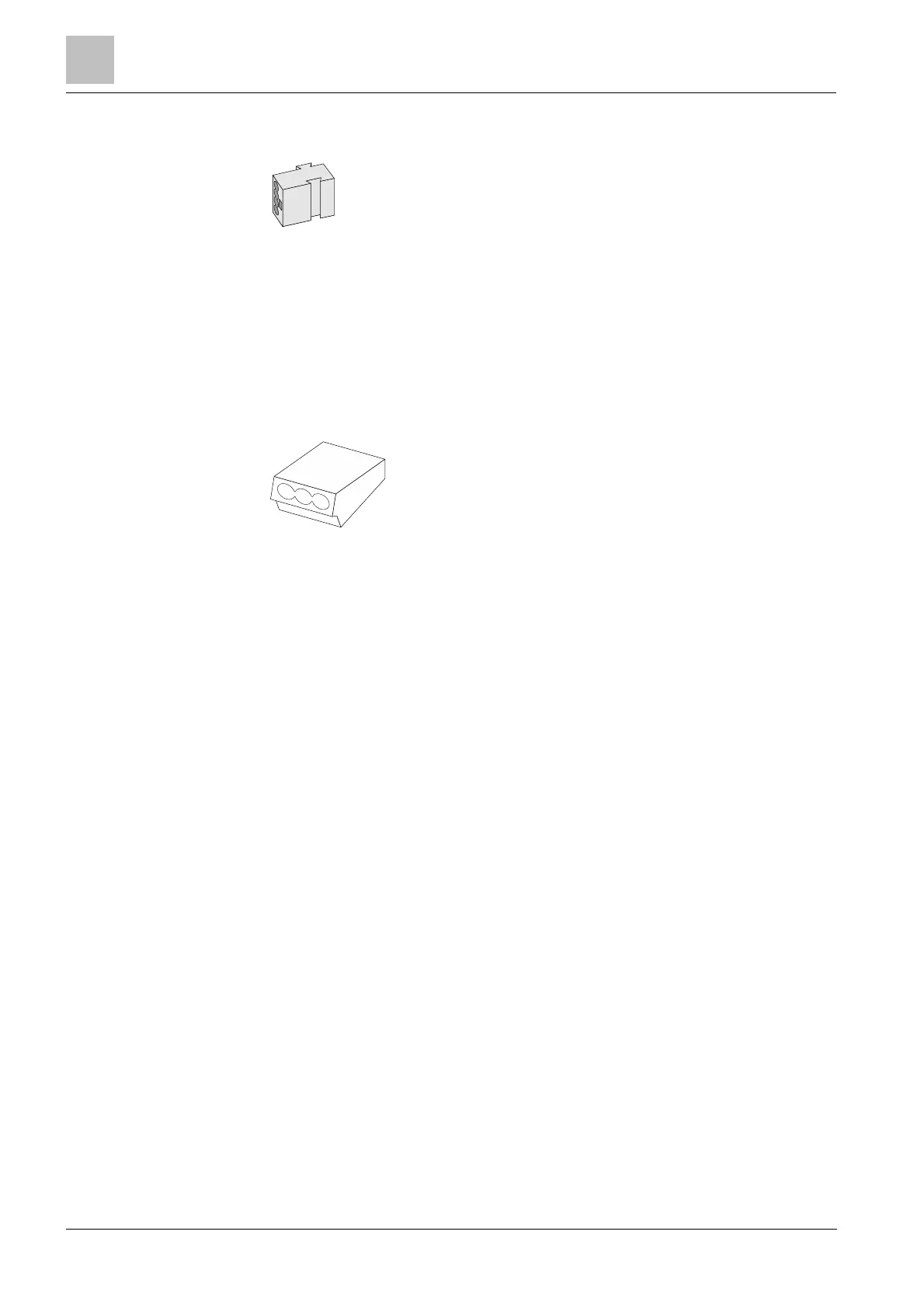

3.5.14 Micro terminal DBZ1190-AA
l Auxiliary terminal for connecting cables
l For T-branches of additional cabling e.g. for
detector heating units, sounder base, external
alarm indicators etc.
l For wire diameters of 0.28…0.5 mm
2
l 4-pin
l Order no.: BPZ:4677080001
See also
2 Auxiliary terminals DBZ1190-AA/-AB [➙ 43]
3.5.15 Connection terminal DBZ1190-AB
l Auxiliary terminal for connecting cables
l For T-branches of additional cabling e.g. for cable
shielding, detector heating units, sounder base,
external alarm indicators etc.
l For wire diameters of 1…2.5 mm²
l 3 poles
l Order no.: BPZ:4942340001
See also
2 Auxiliary terminals DBZ1190-AA/-AB [➙ 43]
