Siemens OP110 - Installation for surface-mounted cable entry (Base attachment BA720)

5
Mounting / Installation
Base attachment BA720
38
Building Technologies A6V10316298_e_en_--
Fire Safety 2014-05-21
Installation for surface-mounted cable entry:
1. Break out the areas required for cable entry in the base attachment BA720 (1).
2. Insert the cables into the base attachment BA720 (1) through the broken-out
areas.
3. Install the base attachment BA720 (1) on the ceiling together with a detector
base (2).
4. Connect the cables in the detector base (2).
1
2

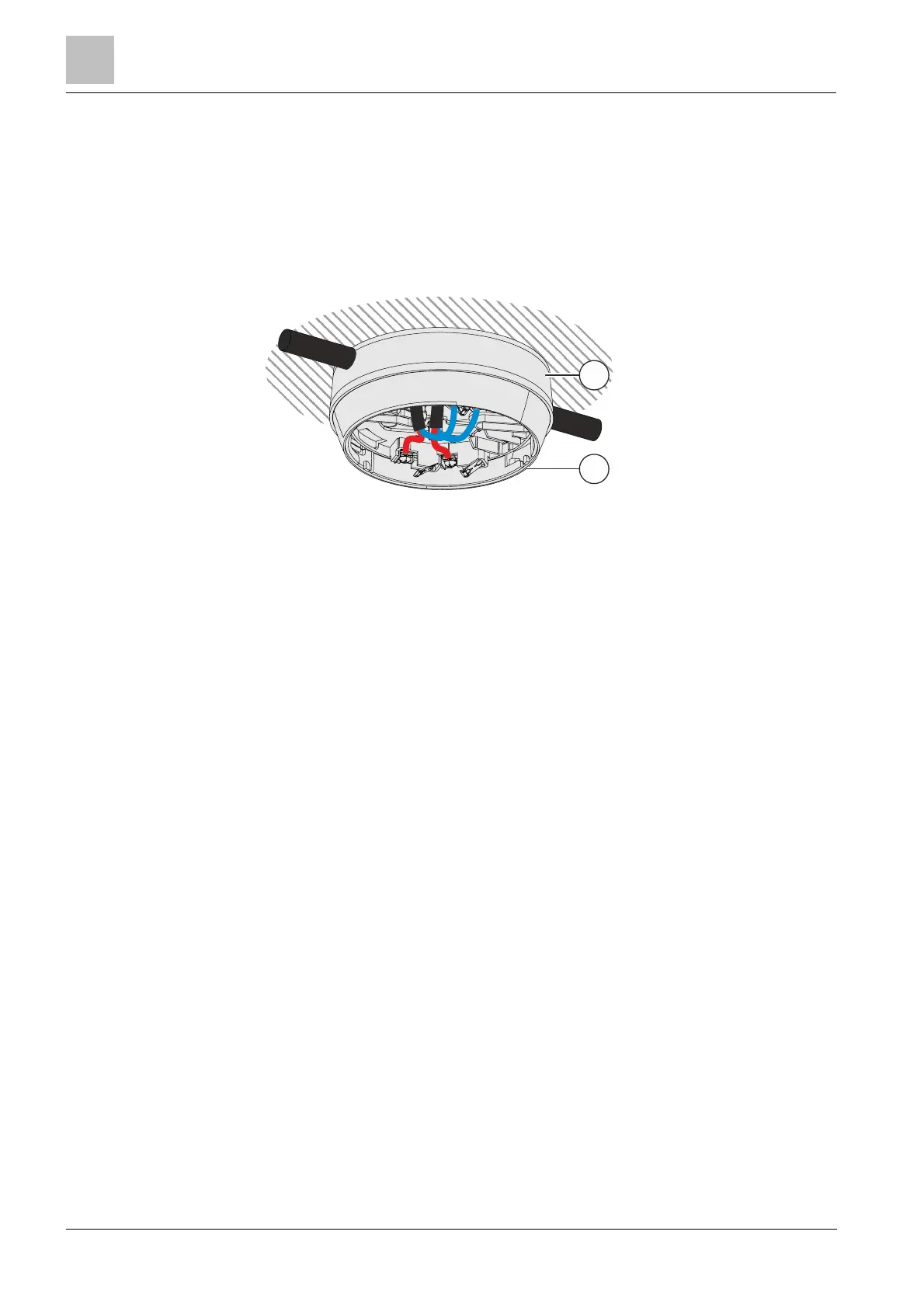

Surface-mounted cable entry with base attachment BA720
1
Base attachment BA720 2 Detector base DB110xx
