DIP Switch
Functionality
GEB161.1
GEB164.1
Description
Label
Description
Function
Counterclockwise
Clockwise
Rotary angle direction
Active
0
Off
Self-adaptation to
mechanical range
signal
2-10 Vdc
GEB161.1
2
0
0…10 Vdc
Selection control
signal
2-10 or 0-10 Vdc
2-10 Vdc output
GEB164.1
2
0
0...10 Vdc
output
Output Signal
2-10 or 0-10 Vdc
Output Voltage

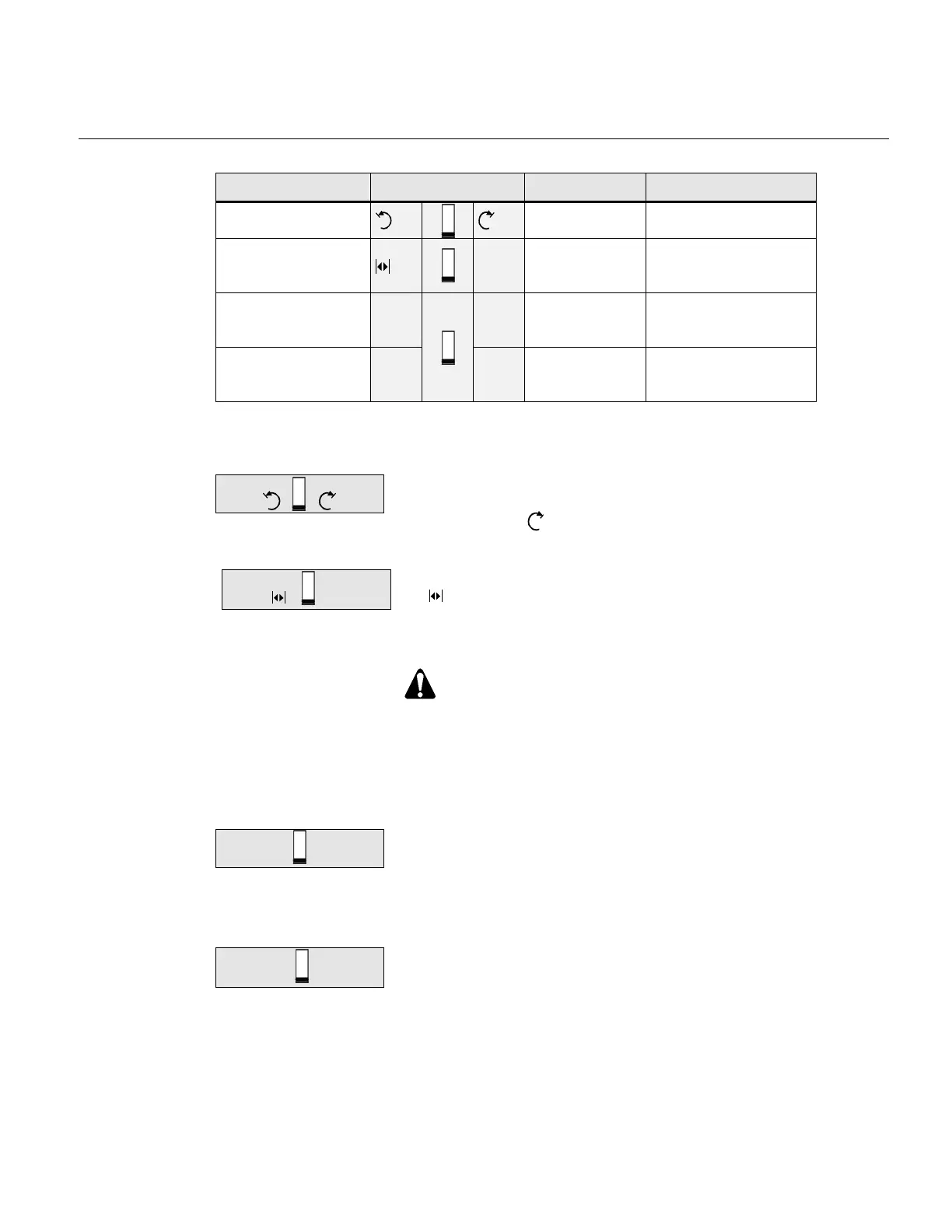

Figure 16. DIP Switches.
Rotary direction
• The arrow direction must match the rotational direction of
the actuator.
• Factory setting:
Self-adapting
0
• Alternative switch-on/off for self-adaptation.
: ON
0: OFF
• Factory setting: 0
CAUTION:
When turning the self-adaptive feature on, or after a
software reset with the feature on, the actuator will
enter a five-minute calibration cycle as the actuator
adjusts to the rotation limits of the system.
A software reset happens after power on or may be
caused by electrostatic discharge (ESD) at levels of
2kV and above.
Positioning Control Signal: (GEB161.1)
2 0
• Alternative settings:
2-10 Vdc
0-10 Vdc
• Factory setting: 0-10 Vdc
Positioning Control Signal: (GEB164.1)
2…. 0….
• Alternative settings:
2…: 2-10 Vdc output voltage
0...: 0-10Vdc output voltage
Factory setting: 0
