PAD-4 Installation, Operation and Maintenance Manual
2.6.1 AC Wiring
AVANT ENTRETIEN
DESACTIVEZ L'UNITE
REMOVING
TERMINAL
BLOCK PROTECTION
DISCONNECT POWER
PRIOR TO
WARNING
FP2011-U1
AC
MAINS
BLACK (L)
WHITE (N)
GREEN (G)
NOTE: BRANCH CURRENT
MUST BE PROTECTED BY A
15A MINIMUM OVERCURREN
T
DEVICE.
S
UPERVI
S
ED
NON-POWER
LIMITED
12-14 AWG MIN.
USER-SUPPLIED 12-14 AWG
WIRE FROM GROUND
LUG TO FP2011-U1
GROUND LUG
IN PAD-4-ENCL
(TO CONNECT
GROUND WIRE
FROM AC MAINS)
CAUTION: INSTALL PLASTIC GUARD ON
AC MAINS
(
L, N, G
)

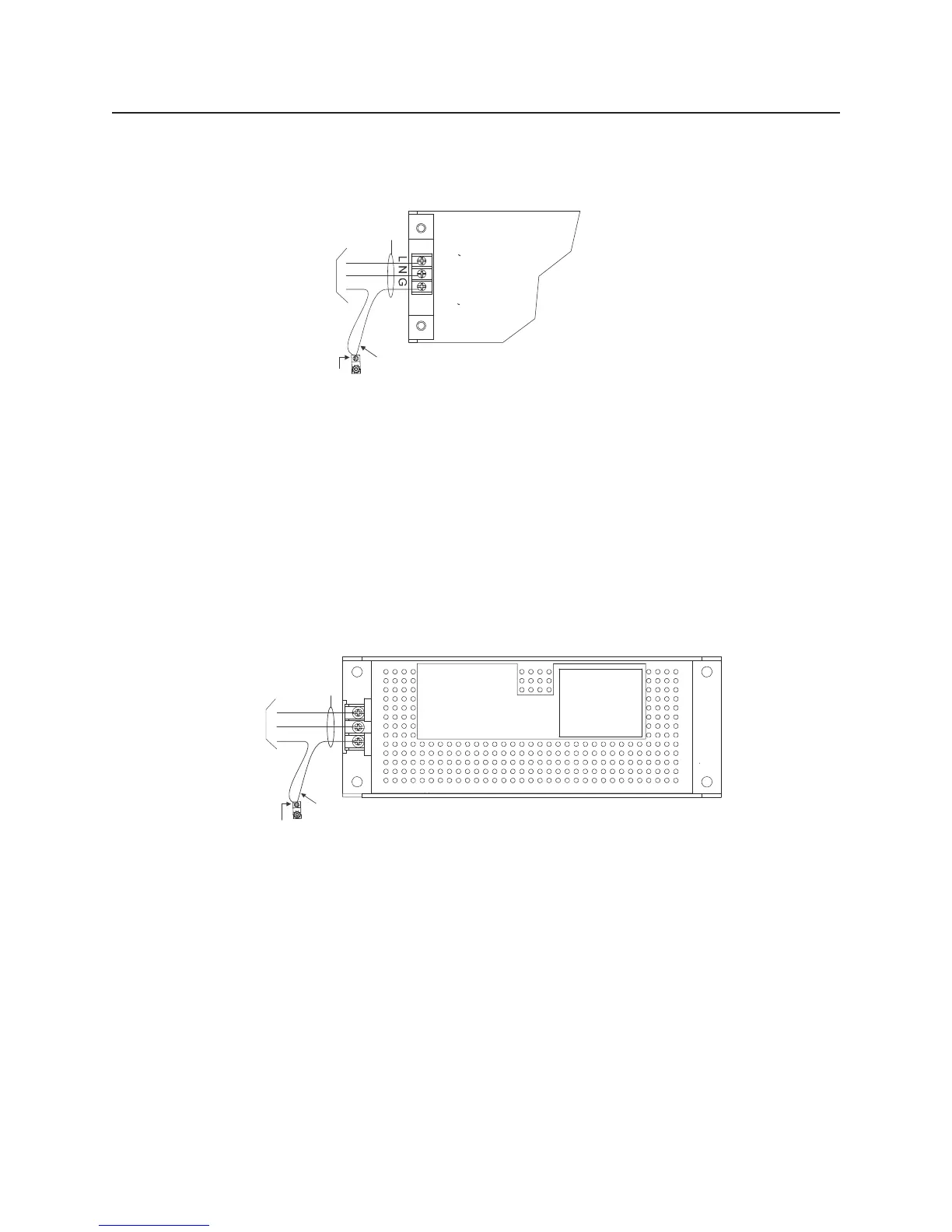

Figure 2-6a
AC Wiring to FP2011-U1
FP2012-U1
BLACK (H)
WHITE (N)
GREEN (G)
AC
MAINS
SUPERVISED
NON-POWER
LIMITED
12-14 AWG MIN.
CAUTION: INSTALL PLASTIC GUARDS ON
AC MAINS
(
H, N, G
)
USER-SUPPLIED 12-14 AWG
WIRE FROM GROUND
LUG TO FP2012-U1
GROUND LUG
IN PAD-4-ENCL
(TO CONNECT
GROUND WIRE
FROM AC MAINS)
NOTE: BRANCH CURRENT
MUST BE PROTECTED BY A
15A MINIMUM OVERCURRENT
DEVICE
Figure 2-6b
AC Wiring to FP2012-U1
