Siemens PM240 User Manual

Accessories
7.1 Reactor and filter
Power Module PM240
Hardware Installation Manual, 07/2009, A5E00807525B AD
79
7.1.1 Line reactor
Installing the line reactor as base component
The line reactors for PM240 Power Modules of frame sizes FSA to FSE (0.37 kW … 37 kW)
are designed as base components. The line reactor is attached to the mounting surface and
the Power Module is mounted directly on the line reactor. The cables to the Power Module
are already connected to the line reactor. The line reactor is connected to the line supply
through terminals.
0
0RWRU
/LQH
0RXQWLQJ
VXUIDFHRU
FDELQHWZDOO
&RQQHFWLRQ
FDEOH
/LQH
UHDFWRU
3RZHU0RGXOH
/ / / 3(
8 9 : 3(
8 9 : 3(

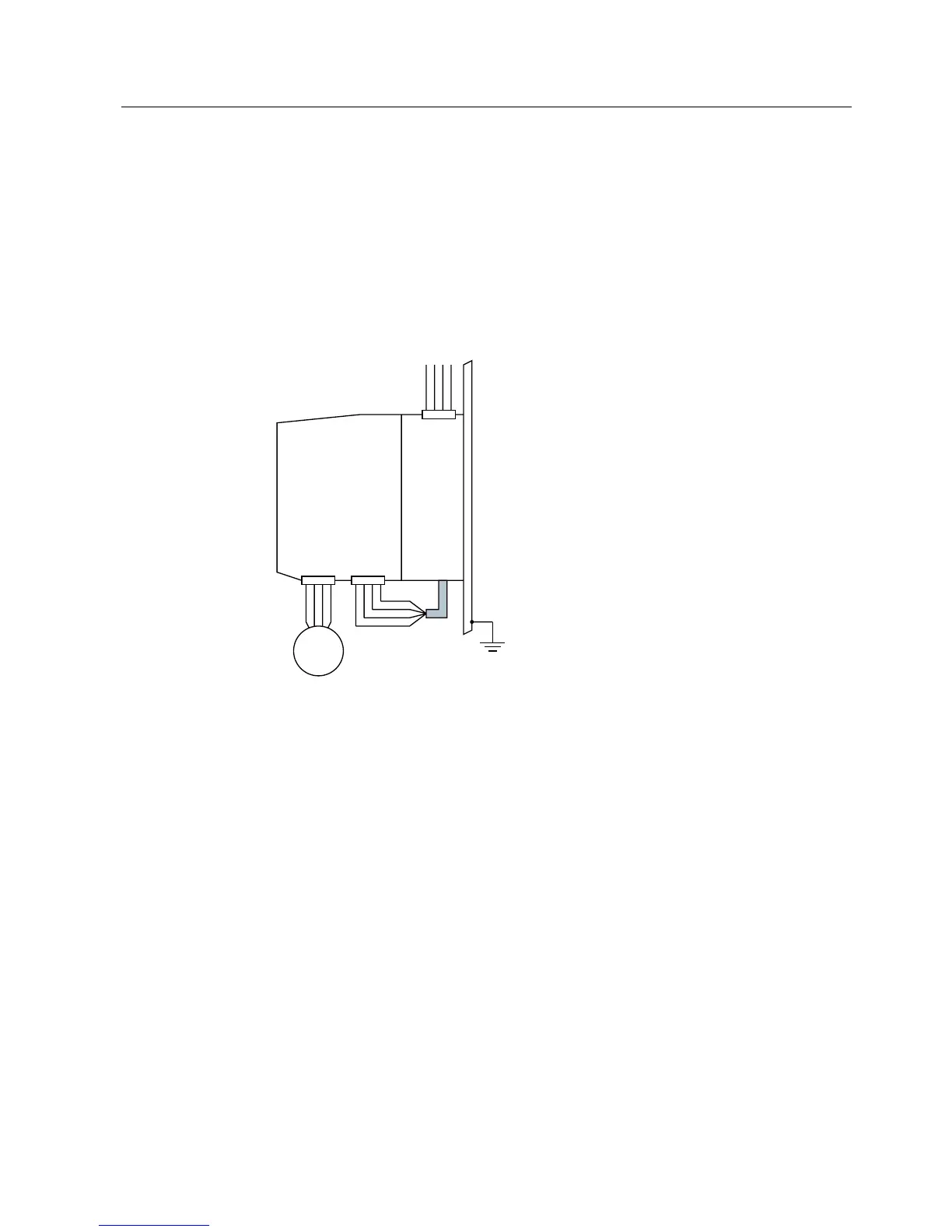

Figure 7-2 Connecting the line reactor as base component
The overall and mounting dimensions of the line reactor are written in the technical
specifications. For more information see
http://support.automation.siemens.com/WW/view/en/23623183

Siemens PM240 Specifications

General

Protection Class	IP20
Frame Size	FSA to FSF
Number of Phases at Input	3
Number of Phases at Output	3
Altitude	Up to 1000 m above sea level without derating
Input Voltage	380-480 V 3 AC
Output Frequency	0 Hz
Communication Interfaces	USS, Modbus RTU, PROFIBUS
Efficiency	Up to 98%
Cooling Method	Forced air cooling
Operating Temperature	-10°C
Storage Temperature	-40 to +70 °C
Relative Humidity	5 to 95 % non-condensing
Control Type	V/f control
