Device description
3.5 6ES7972-0Bx61-0XA0
PROFIBUS bus connector
Equipment Manual, 02/2021, A5E50543113-AA
25

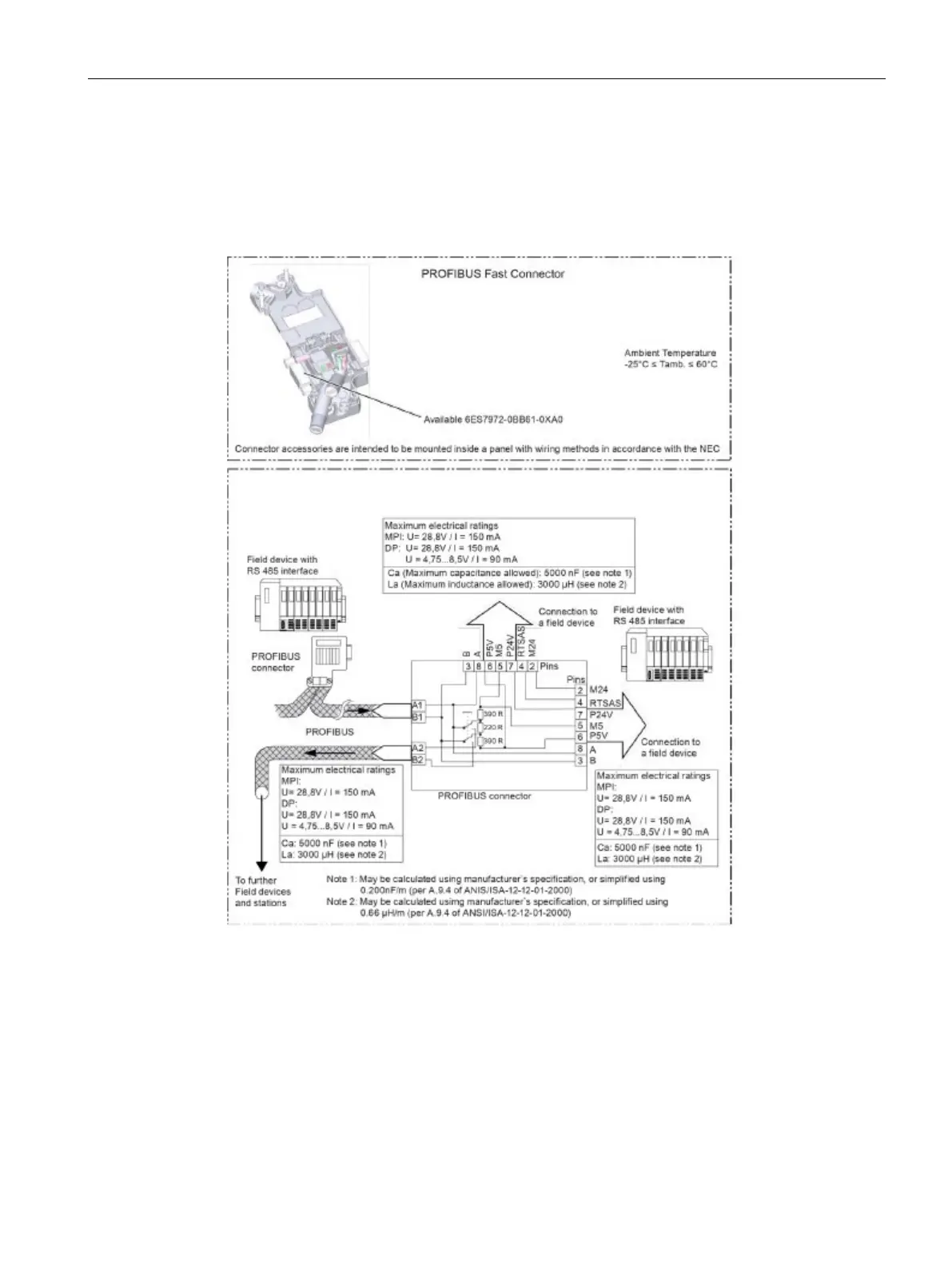

Bus connection for all other stations on the PROFIBUS
Cable feed must always be connected on the left (see marking A1, B1). Cable continuation
must always be connected on the right (see label A2, B2). Switch position must be "OFF" for
all other stations on the PROFIBUS. (terminating resistor switched off).
Approvals
You can find information on the approvals under Standards, approvals and safety notes
(Page 31)
Module-specific data
You can find information under Module-specific data (Page 38).
