Device description
3.2 6ES7972-0BA30-0XA0
PROFIBUS bus connector
12 Equipment Manual, 02/2021, A5E50543113-AA
3.2 6ES7972-0BA30-0XA0

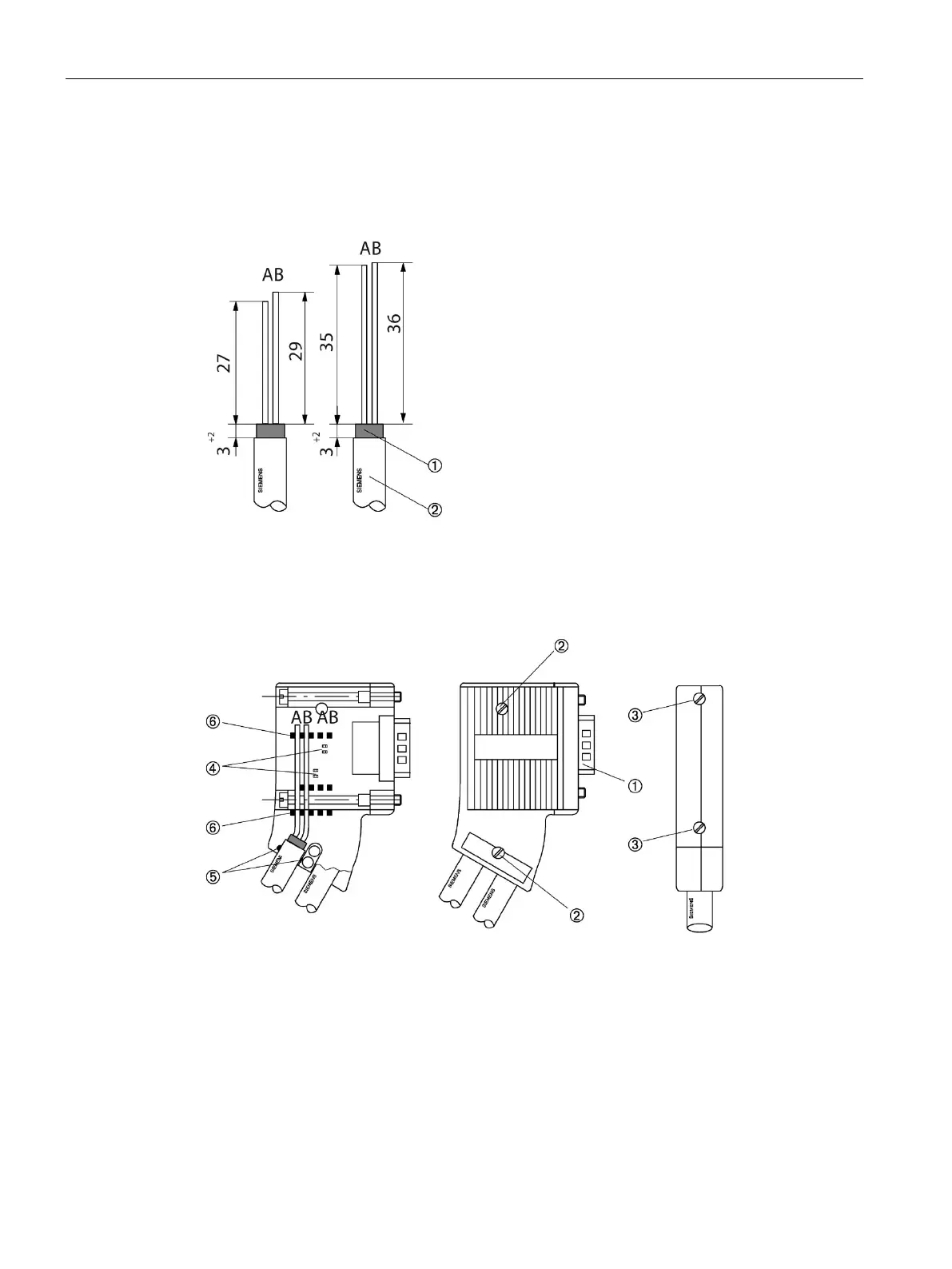

The following provides you with product information about the PROFIBUS bus connector
6ES7 972-0BA30-0XA0:
No.
Description
1
Cable shield
2
Bus cable, 6XV1 830-0AH10
Bus connection for the stations on the PROFIBUS where no terminating resistor is connected.
No.
Description
1
9-pin D-sub connector for connection at the station (pin 3 and 8 allocated)
2
Housing screws
3
Screws for fastening to the station
4
Insulation displacement terminals for bus cable connection
5
Strain relief
6
Guides
