Siemens PSC-12 - Wiring Connections; PSC-12 Terminal Block and Connector Locations; Earth Grounding Requirements; PSC-12 Wiring Diagram in CAB Enclosures

Siemens Industry, Inc.
Building Technologies Division
P/N 315-033060-197

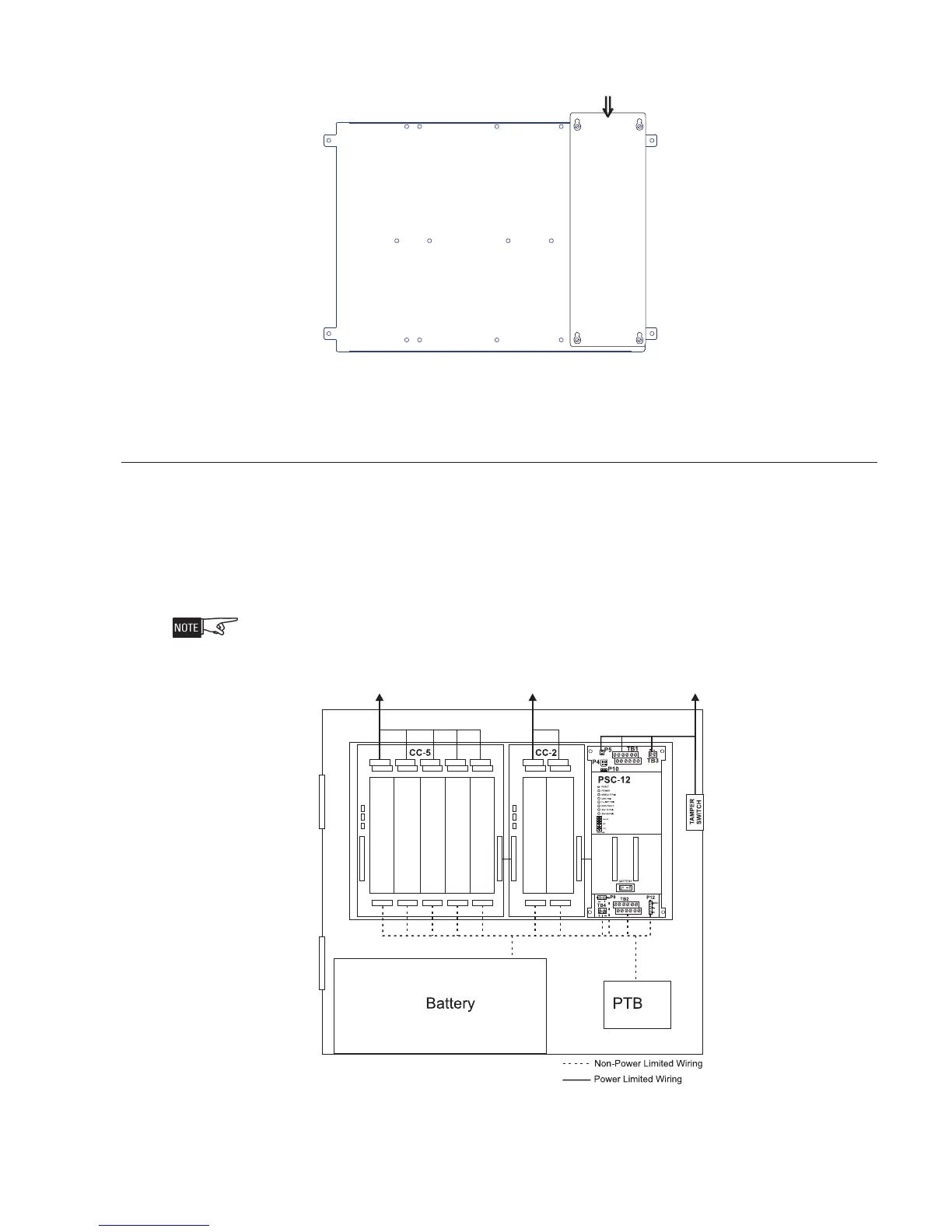

Figure 7
PSC-12 Wiring In The CAB Enclosures
WIRING The PSC-12 has removable terminal blocks and connectors at the top and bottom of
the module. The terminals and connectors at the top of the PSC-12 are power
limited. The terminals and connectors at the bottom of the PSC-12 are non-power
limited. (Refer to Figure 7.)
Use a separate or dedicated circuit breaker and run the earth ground from a suitable
source to the PSC-12. Check local requirements.
Conduit is not an acceptable Earth Ground Conductor.
Figure 6
Mounting The PSC-12 On The Optional CAB-MP
TOP
SLIDE DOWN UNTIL
FLUSH ON TOP,
RIGHT, AND BOTTOM
CAB-MP
PSC-12
