Siemens Industry, Inc.
Building Technologies Division
P/N 315-033060-199

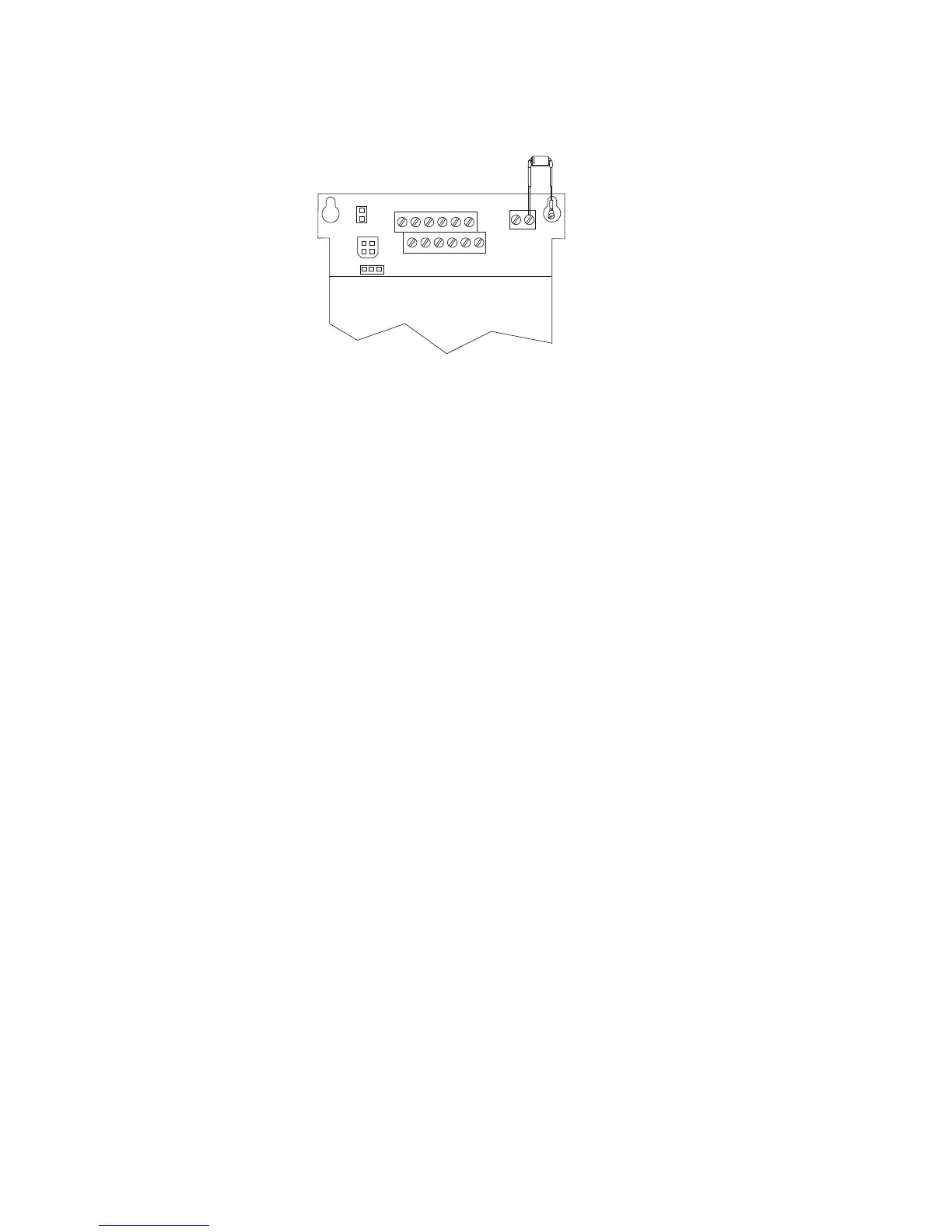

Anti-Interference Capacitor Install the 6.8uF, 100V bipolar Anti-Interference Capacitor as shown in Figure 9. It has
to be connected between System Ground and Earth Ground.
PSC-12
PSX-12
P5
1
1
1
+
_
2
6
12
7
12
34
TB1
TB3
P4
P10
*
*6.8uF, 100V BIPOLAR
CAPACITOR
P/N A5Q00038368
Figure 9
Wiring the Anti-Interference Capacitor
Power Supply Load and Battery Calculations
The PSC-12 power supply load and battery size calculations are performed by the
Zeus tool based on the equipment in the physical view. Once all of the equipment is
inserted into the physical view for each enclosure and a successful compile is
performed, the results of the calculations are shown in the report view.
From the Tools menu, select Report Generation and then select System Power &
Battery Calculation Report. The report contains power supply loading and battery size
results for each enclosure. This report can be printed for a permanent record.
