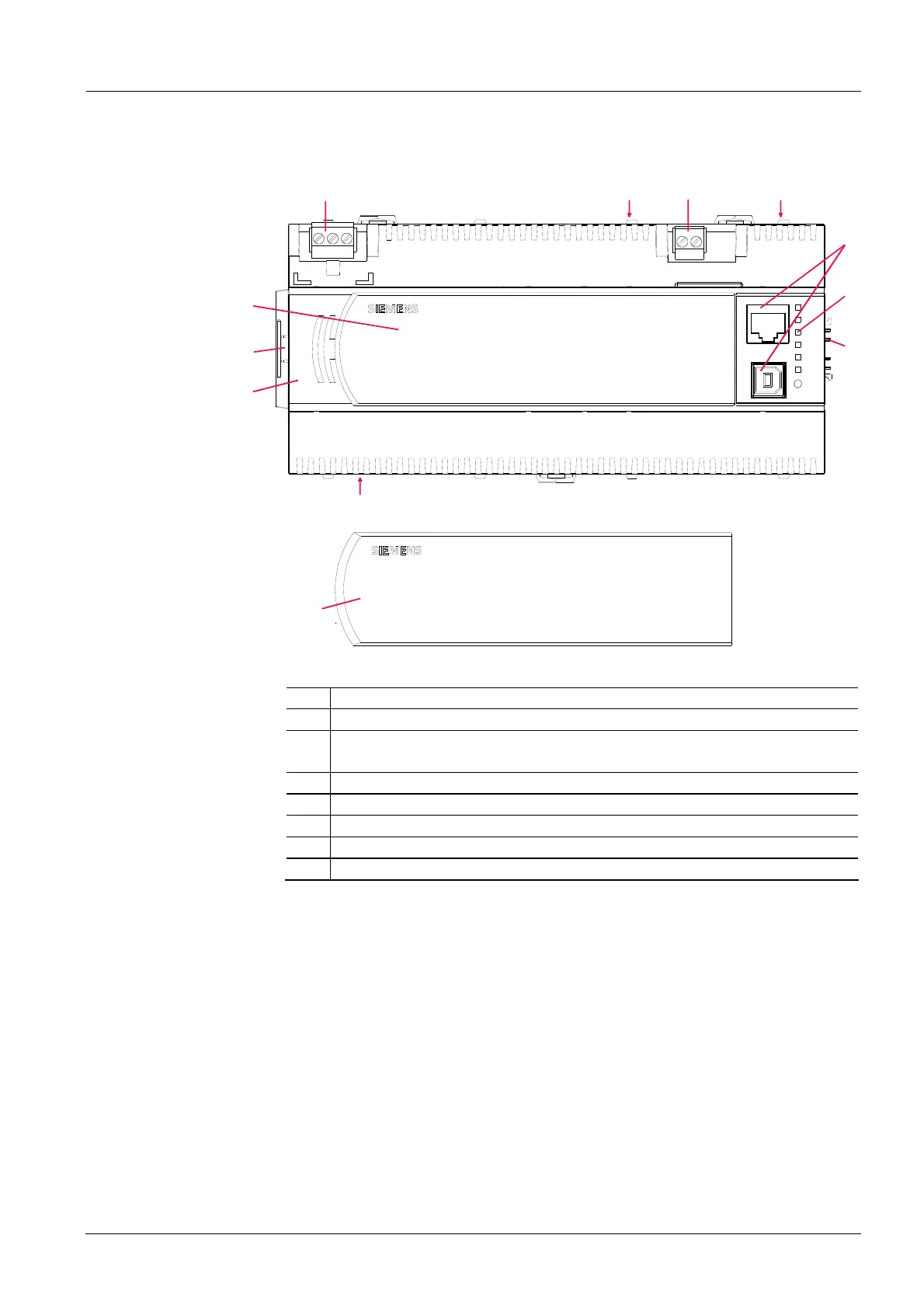

Mechanical design
The compact construction enables the automation stations to be mounted on a
standard mounting rail.
PXC....D
1
3
2
4
55
5
7
6
5
5
8
88
9222z01
PXA40-...
3b
9222z16
1
Plastic housing
2
Cover to interface for extension module
3a
3b
Front cover
PXM40-... option module
4
Plug-in terminal block with screw terminals (operating voltage)
5
Interface for network, operator units, tool, etc.
6
LED display for devices and system status
7
Island bus connector (not on PXC00…)
8
Slider for mounting on DIN rail
