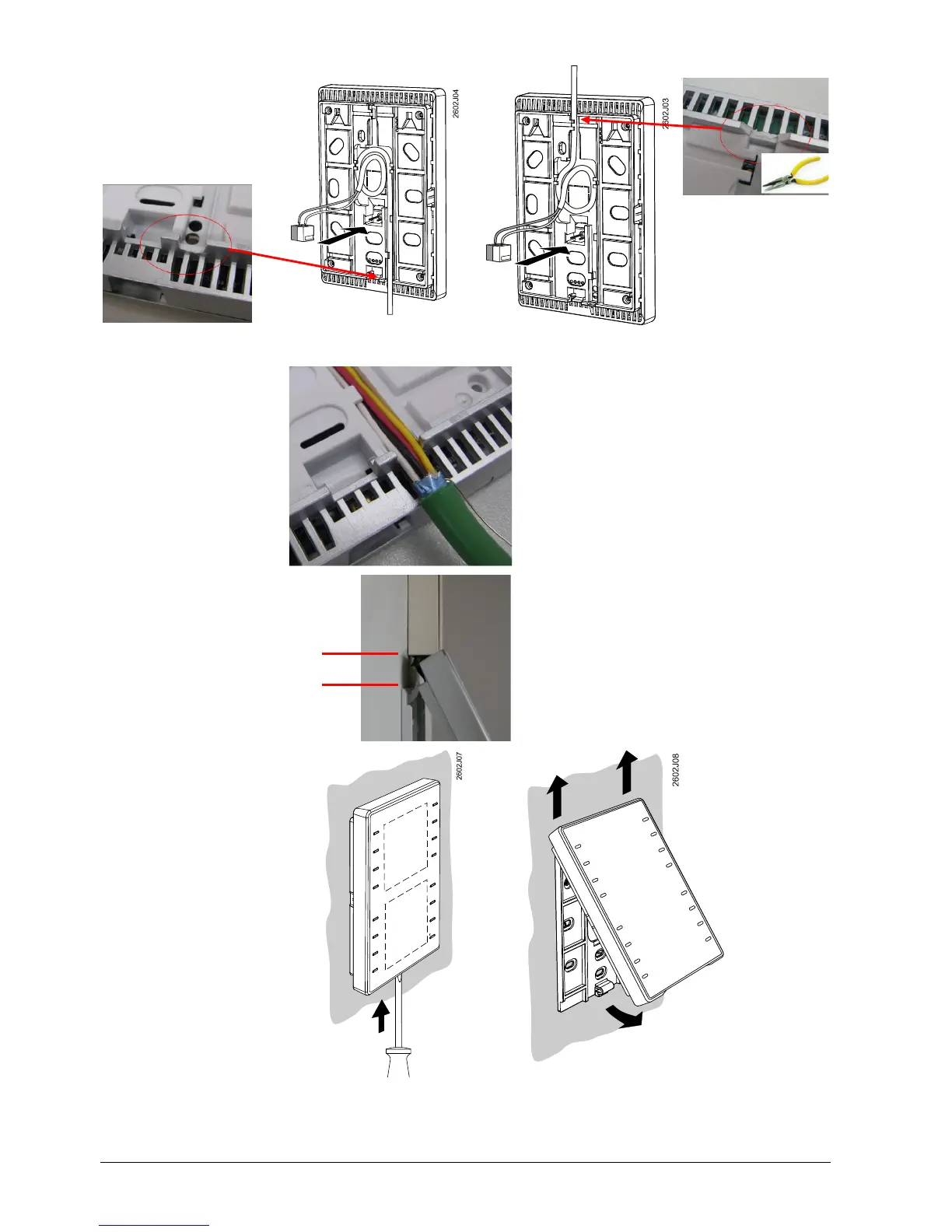

Wall mounting
Remove the breakout on the housing before putting the cable into the gaining channel.
4-wire cables
(daisy chain wiring)
Remove the cable coating, as it will not fit in
the gaining channel.
Cable ducts on the wall
30 mm
Keep a distance of 30 mm (from above) /
20 mm (from below) to the base plate,
so that the device can be snapped onto the
base plate.
Dismounting / service:
