Use / compatibility
The room automation station determines the functions of both LCD display and touch
screen.
● Measure and indicate the room temperature
● Display humidity, PM2.5, and CO
2
● Operate room functions
● Indicate external information (outdoor temperature, outdoor humidity)

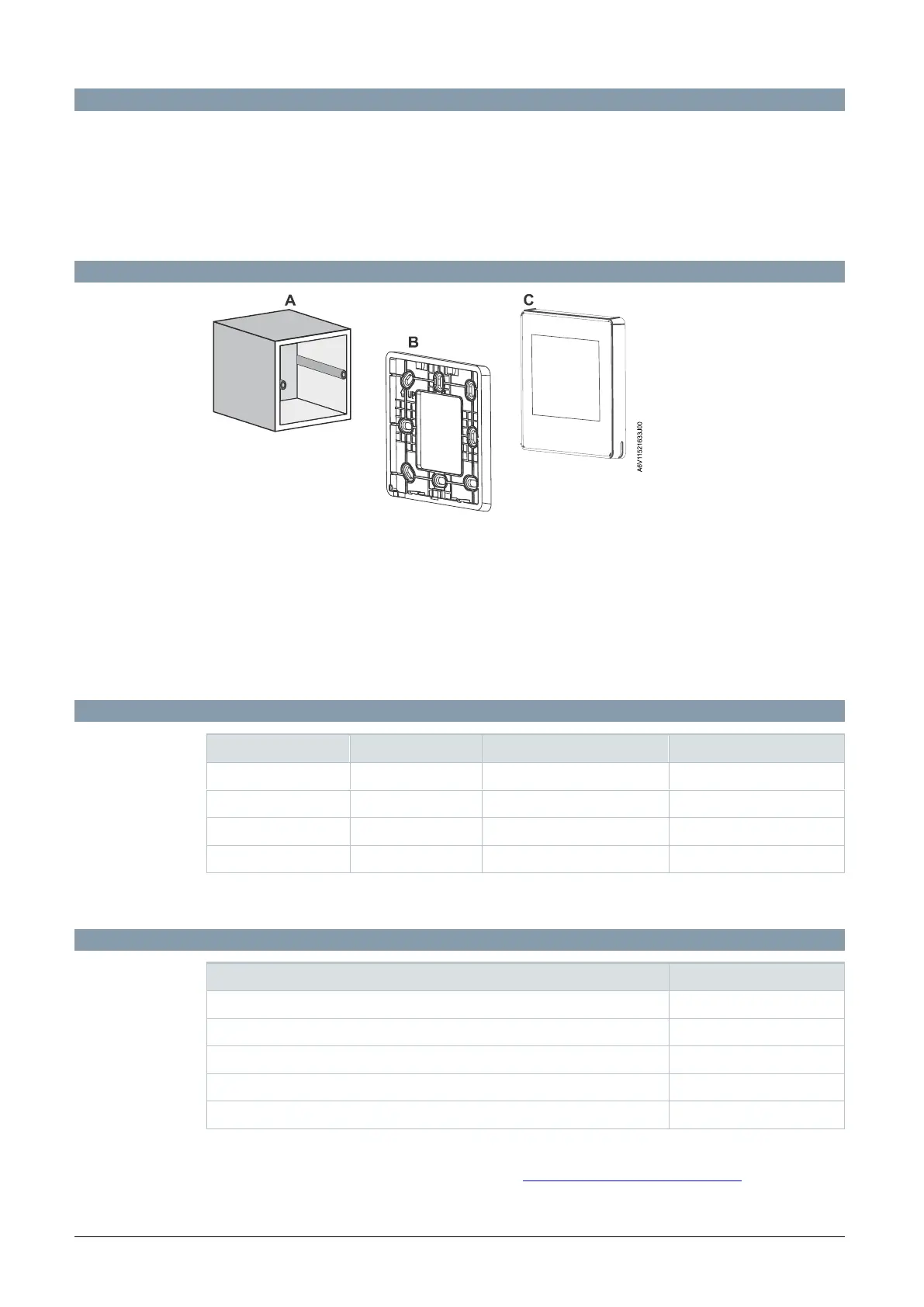

Mechanical design
● The devices are designed for a common conduit box (A).
– Conduit box: Keep in mind the dimensions of the conduit box!
● The base plate (B) has screw holes for all common conduit boxes (A).
The screw head height must not exceed 3 mm.
● The device (C) incorporates a KNX PL-Link plug, a tool plug, sensor element and LCD
touch panel.
The cable can be hidden into conduit box.
● A KNX plug is enclosed with the devices.
Type summary
Product no.
Stock no.
Color type
Suitable for
QMX3.P35H
S55624-H137
White, RAL9003
Square conduit box
1)
QMX3.P35H-BSC
S55624-H139
Black, Pantone Black C
Square conduit box
1)
QMX3.P38H
S55624-H138
White, RAL9003
Square conduit box
1)
QMX3.P38H-BSC
S55624-H140
Black, Pantone Black C
Square conduit box
1)
1)
Conduit boxes are not included and must be ordered separately.
Product documentation
Title
Document ID
Mounting instruction
A6V11521631
Mounting and installation PXC3.., DXR2..
A6V10361918
CE declaration
A6V11579510
RCM declaration
A6V11579512
Environmental product declaration
A5W90009021
Related documents such as environmental declarations, CE declarations, etc., can be
downloaded at the following Internet address: http://siemens.com/bt/download
