Commissioning notes
The intensity of light radiation on site is checked by measuring the detector current.
4
5
LFS1.1..
.
22
24
22 24
9
10
1314
LOK16...
LAE1...
LAE10...
+
M
RAR
+
7
7
1
3
v
0
1
/
0
6
1
6
A
A Incidence of light
M Microammeter (DC), internal resistance 5,000 
For the minimum detector currents required, refer to the Data Sheet of the relevant
burner control.
Standards and certificates
Note!
Only in connection with burner controls!
EAC Conformity mark (Eurasian Conformity mark)
ISO 9001:2008
ISO 14001:2004
OHSAS 18001:2007
China RoHS
Hazardous substances table:
http://www.siemens.com/download?A6V10883536
Service notes
Each time a unit has been replaced, check to ensure that wiring is in an orderly state
and that the wires are firmly connected.
Disposal notes
The flame detector contains electrical and electronic components and must not be dis-
posed of together with household waste.
Local and currently valid legislation must be observed.
Mechanical design
 Housing made of dust-proof duroplast
 Photocell is under protective glass
 Flame detector can be supplied with or without flange (version 4 241 8855 0) and
clamp (refer to «Type summary»)

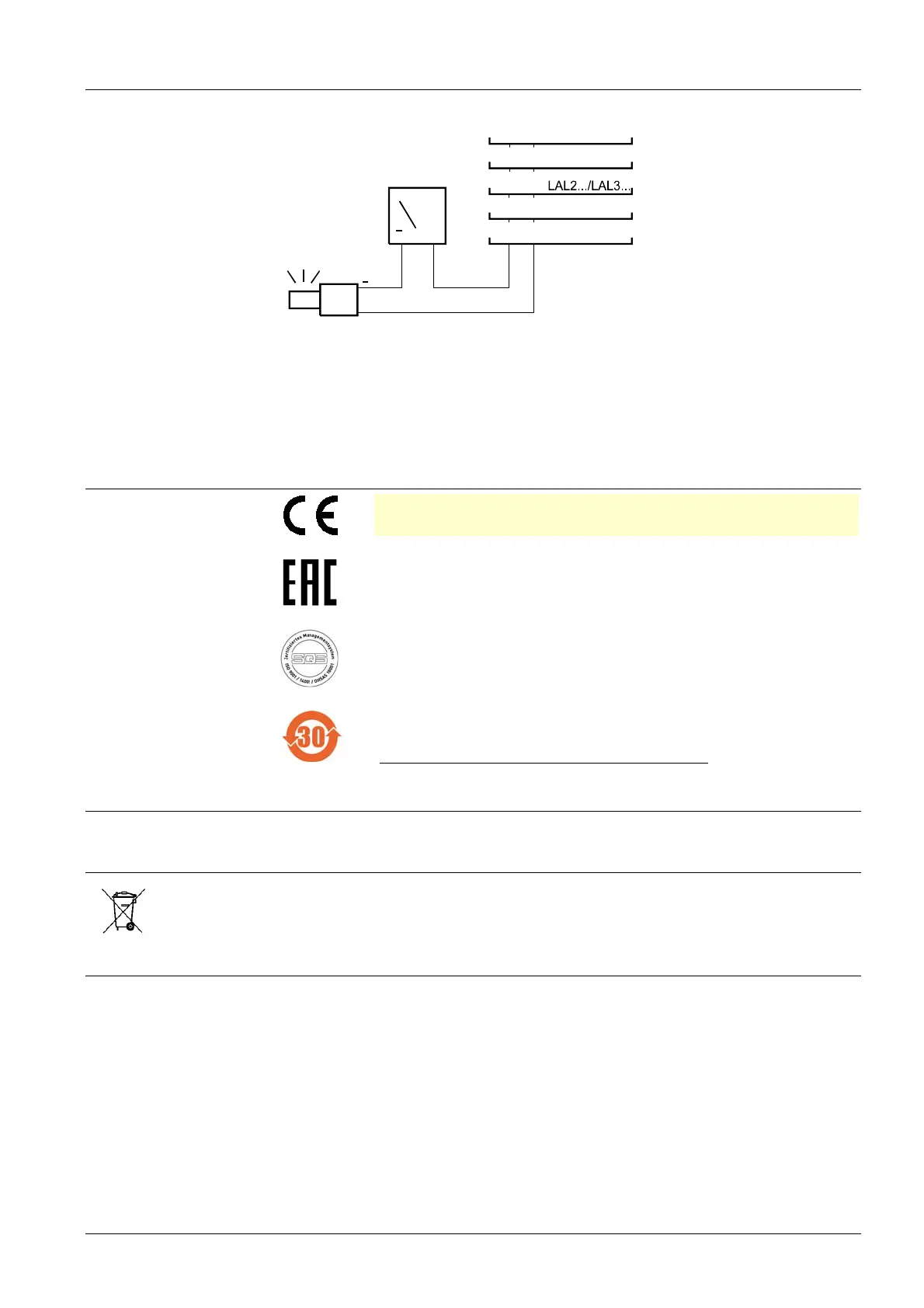

Measuring circuit for
