Abbreviations
ON/OFF: 2-position control
3-pos.: Modulating 3-position control signal
PWM: Pulse Width Modulation
DC 0...10 V: Modulating DC 0...10 V control signal
el. heater: Electric heater
mod. output: Modulating output

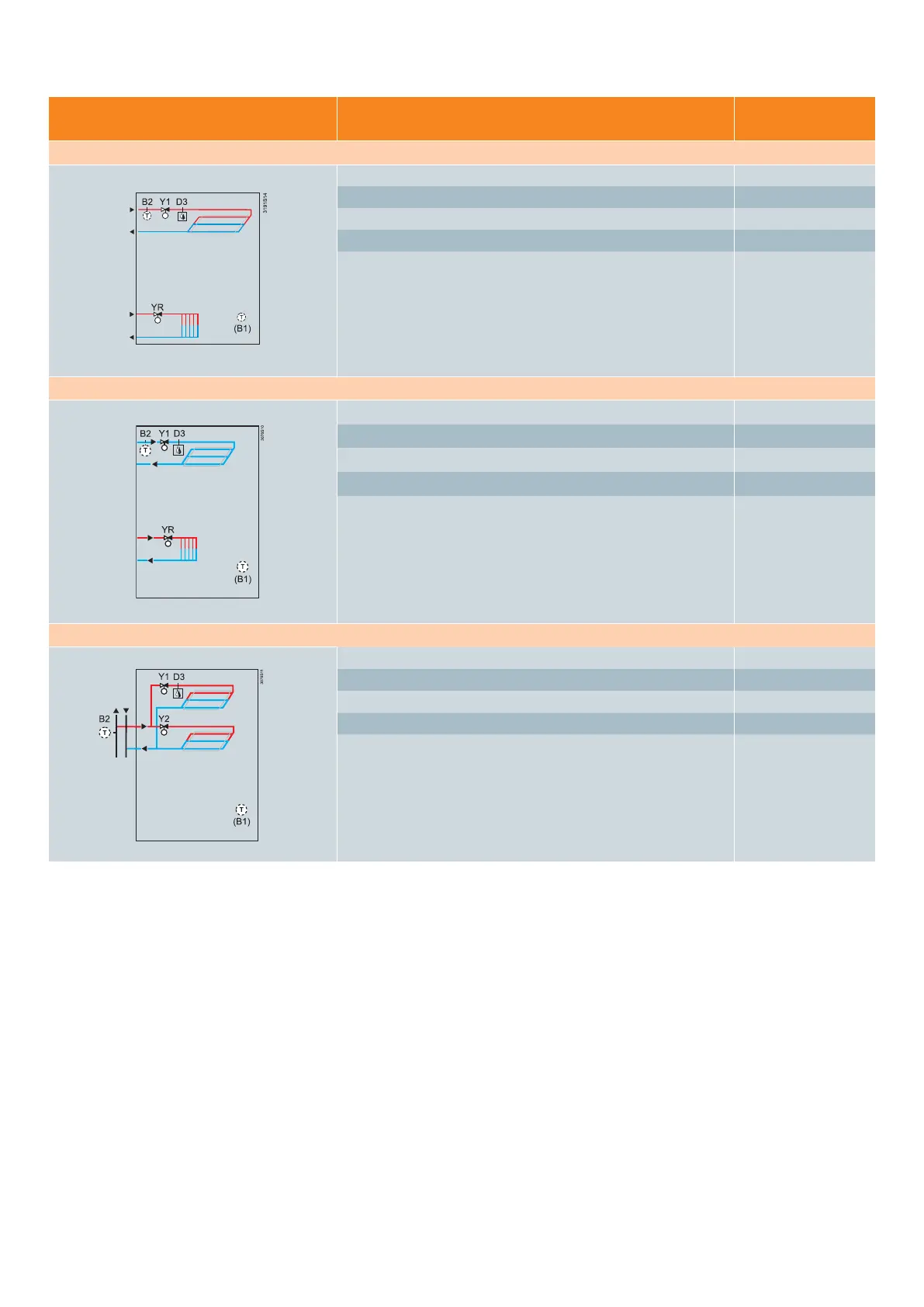

Application
Type of control outputs
RDG…
Wall-mounted range
Chilled/heated ceiling and radiator
Chilled/heated ceiling (ON/OFF) and radiator (ON/OFF)
RDG100.. RDG110
Chilled/heated ceiling (ON/OFF) and radiator (mod. PWM or 3-pos.) RDG100..
Chilled/heated ceiling, mod. (PWM) and radiator (ON/OFF, PWM or 3-pos.) RDG100..
Chilled/heated ceiling, mod. (3-pos.) and radiator (ON/OFF, PWM or 3-pos.) RDG100..
Chilled/heated ceiling, mod. (ON/OFF, DC 0...10 V) and radiator
(ON/OFF, DC 0...10 V)
RDG140 RDG160..
Chilled ceiling and radiator
Chilled ceiling (ON/OFF) and radiator (ON/OFF) RDG100.. RDG110
Chilled ceiling (ON/OFF) and radiator (mod. PWM or 3-pos.) RDG100..
Chilled ceiling (PWM) and radiator (ON/OFF, PWM or 3-pos.) RDG100..
Chilled ceiling (3-pos.) and radiator (ON/OFF, PWM or 3-pos.) RDG100..
Chilled ceiling (ON/OFF, DC 0...10 V) and radiator (ON/OFF, DC 0...10 V) RDG140 RDG160..
Chilled/heated ceiling with 2-stage cooling or 2-stage heating
2-stage (ON/OFF) heating or cooling RDG100.. RDG110
2-stage mod. (PWM) heating or cooling RDG100..
2-stage mod. (3-pos.) heating or cooling RDG100..
2-stage mod. (ON/OFF, DC 0...10 V) heating or cooling RDG140 RDG160..
