18

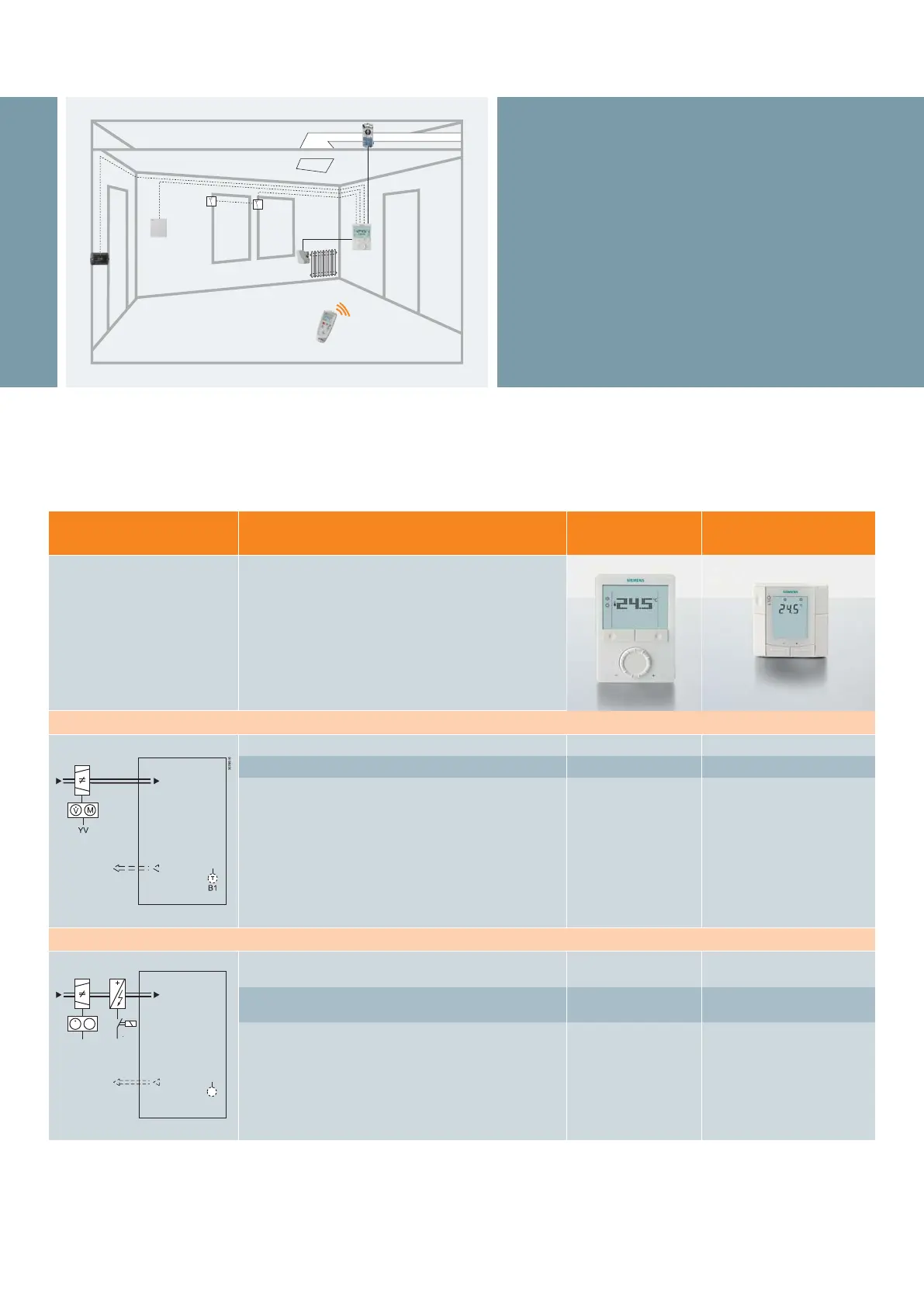

VAV – application overview
Application description
– Control sequences for heating and/or cooling
– Modulating control output DC 0…10 V or 3-pos. for
VAV box/air fl ow controller
– Multifunctional inputs for keycard, contact,
external sensor, etc.
– Automatic or manual heating/cooling changeover
– Adjustable minimum and maximum limitation of
air fl ow signal (DC 0…10 V)
– Modulating PI control
– Output signal inversion as an option
Application
Type of control outputs
RDG..
Wall-mounted range
RDF..
Semi fl ush-mounted range
Single duct
Single duct (DC 0...10 V) for VAV-box RDG400..
RDU34..
Single duct mod. (3-pos.) for VAV-box RDG400..
Single duct with el. heater
Single duct (DC 0...10 V) for VAV-box,
with el. heater (ON/OFF)
RDG400.. RDU34..
Single duct (DC 0...10 V) for VAV-box,
with el. heater (mod. PWM or 3-pos.)
RDG400..
Single duct (3-pos.) for VAV-box, with el. heater (DC 0...10 V) RDG400..
YV
3076S17
M
V
T
B1
YE
