4.6.1 2-pipe fan coil unit
In 2-pipe applications, the controller controls a valve in heating/cooling mode with
changeover (automatic or manual), heating only mode, or cooling only mode.
Cooling only is factory set (P01=1).

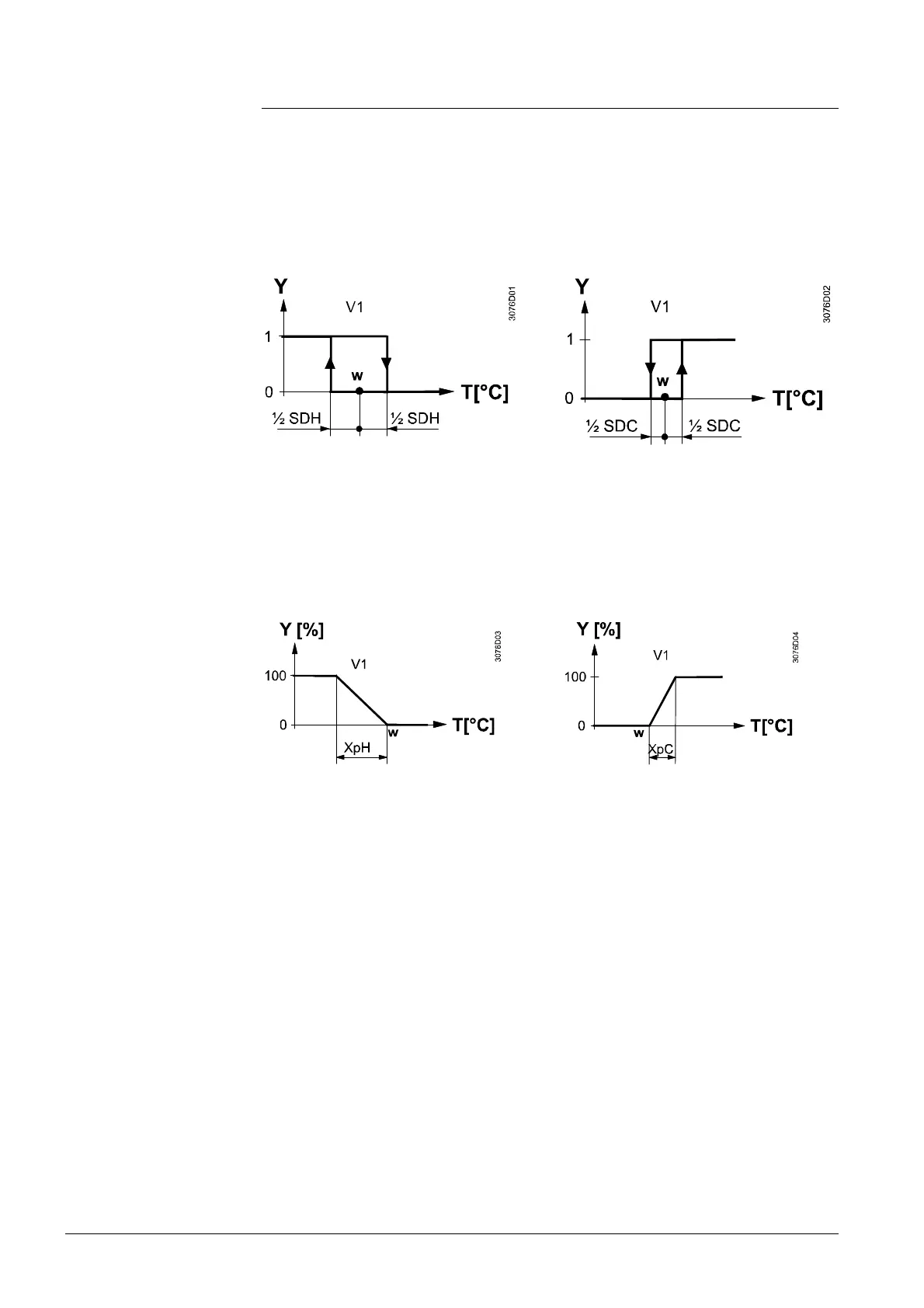

The diagram below shows the control sequence for on/off (2-position) control.
Heating mode Cooling mode
T[°C] Room temperature SDH Switching differential “Heating”
w Room temperature setpoint SDC Switching differential “Cooling”
V1 Control command “Valve” or “Compressor”
The diagram below shows the control sequence for continuous PI control.
Heating mode Cooling mode
T[°C] Room temperature XpH Proportional band “Heating”
w Room temperature setpoint XpC Proportional band “Cooling”
V1 Control command “Valve”
· The diagrams only show the PI thermostat’s proportional part.
· For the fan sequence see section 4.8.
On/off output
Heating or cooling
Control sequence
on/off output
Control sequence
modulating output
Notes:
