Mechanical design
The thermostats consist of 2 parts:
· Front panel with electronics, operating elements and built-in room temperature
sensor.
· Mounting base with power electronics.
The rear of the mounting base contains the screw terminals.
Slide the front panel in the mounting base and snap on.
Operation
and
settings

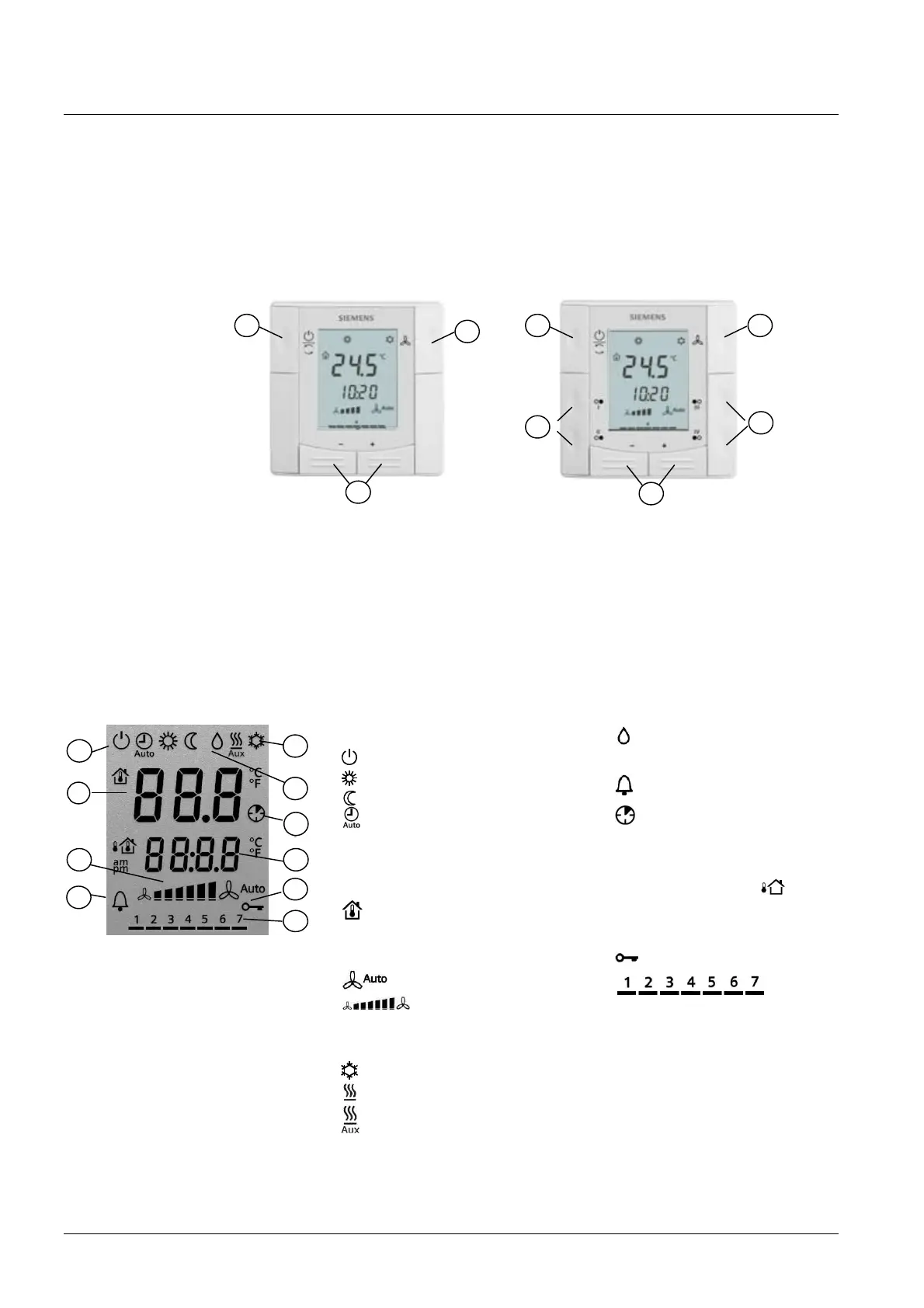

RDF600KN, RDF600KN/VB RDF600KN/S
1 Operating mode selector
2 Change fan operation
3 Adjust setpoint and control parameters
4 Four buttons to control KNX actuators via KNX S-mode
(functions: switching, dimming, blinds control, 8-bit scene)
Display
1 Operating mode
Protection
Comfort
Economy
Auto Timer according to
schedule (via KNX)
2 Displays room temperature, set-
points and control parameters.
Symbol indicates current room
temperature
3 Fan mode
Auto fan active
Fan speed
low, medium, high
4 Heating/cooling mode
Cooling
Heating
Electric heater active
5 Condensation in room
(dewpoint sensor active)
6 Indicates fault or reminder
7 Temporary comfort mode
extension active
8 Additional user information, like
outdoor temperature or
time of day from KNX bus.
Selectable via parameters
9 Button lock active
10
Weekday 1…7 from KNX bus
(1 = Monday / 7 = Sunday)
1
2
5
3
8
5
6
9
7
6
4
10
7
1
3
21
3
4
4
2
