Siemens RDG

16

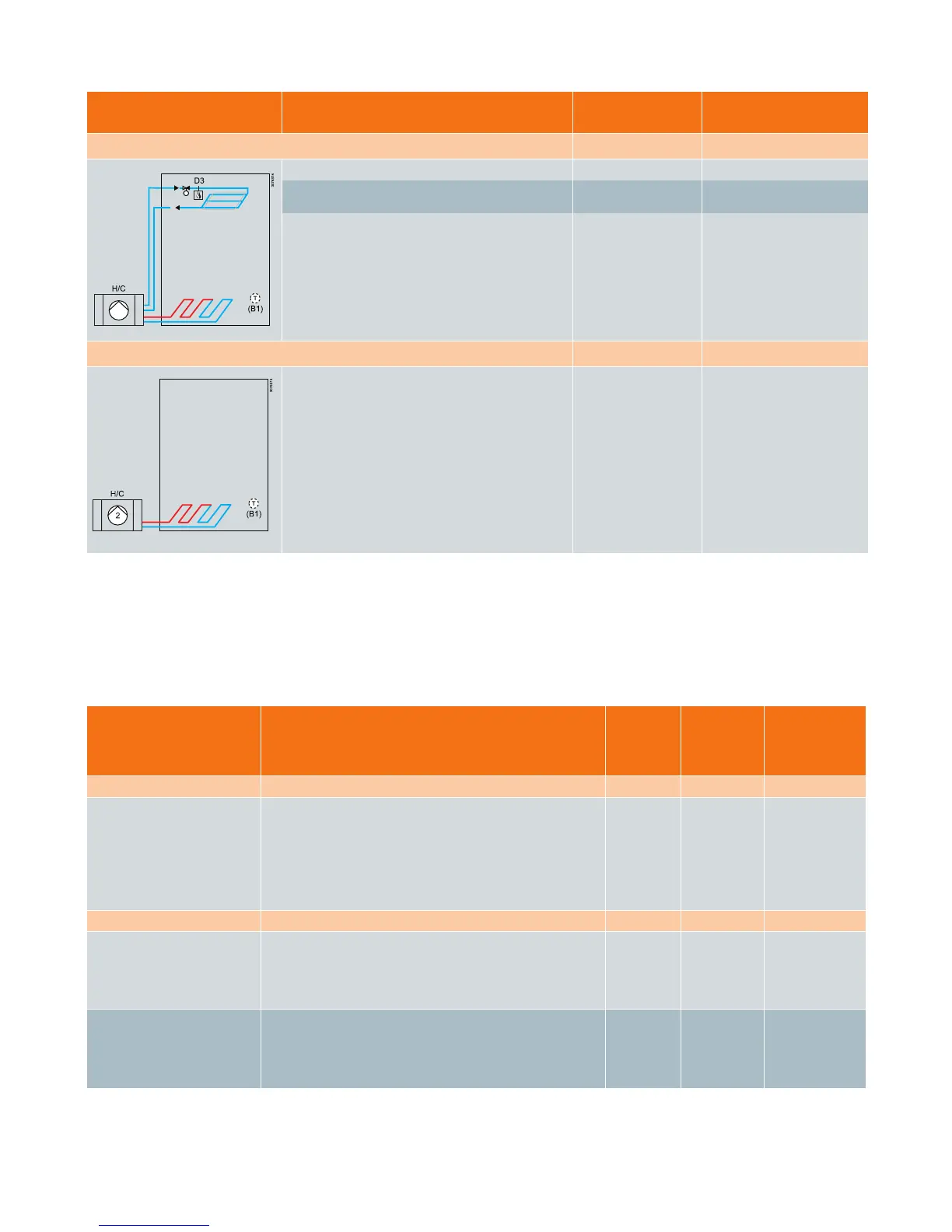

Application Type of control outputs
RDG…
Wall-mounted range
RDF…
Semi flush-mounted range
Compressor in DX-type equipment heating and cooling
1-stage compressor (ON/OFF) for heating and cooling RDG110 RDF300... RDF400...
1-stage compressor (ON/OFF) for heating and cooling
with reverse valve
RDG110
Compressor in DX-type equipment, cooling or heating, two-stage
2-stage compressor (ON/OFF) for heating or cooling RDG110
Product Application Standalone
Standalone
with
7-day time
program
Communicating
KNX
Wall-mounted units: RDG
RDG110
Thermostat with relay output
(SPDT) to ON/OFF control
sequences
– 1-stage compressor (ON/OFF) for heating or cooling
– 1-stage compressor (ON/OFF), with el. heater (ON/OFF)
– 1-stage compressor (ON/OFF) for heating and cooling
– 1-stage compressor (ON/OFF) for heating and cooling
with reverse valve
– 2-stage compressor (ON/OFF) for heating or cooling
RDG110
Semi flush-mounted units: RDF
RDF300.../400…*
Versatile thermostats with
relay ouputs: ON/OFF
– 1-stage compressor (ON/OFF) for heating or cooling
– 1-stage compressor (ON/OFF), with el. heater (ON/OFF)
– 1-stage compressor (ON/OFF) for heating and cooling
RDF300... RDF400...
RDF310.../410...*
Basic thermostats for
1-stage compressor
– 1-stage compressor(ON/OFF) for heating or cooling
RDF310... RDF410...
RDF400.01/SL Silver thermostat
RDF310.2 Basic version
RDF310.21 Basic thermostat with backlight and Infrared remote control
RDF410.21 Basic thermostat with backlight, weekly time program and Infrared remote control
Abbreviation
ON/OFF: 2-position control el. heater: Electrical heater
Heat pumps – product overview
*Variants
RDF300 Basic version
RDF300.02 Thermostat with backlight
RDF300.02/SL Thermostat with backlight, silver
RDF400.01 Basic version
